Description
The Allied Healthcare Vacutron Continuous Suction Regulator is an essential tool for delivering reliable suction for general procedures. These regulators can also be vital for routine patient airway, oropharyngeal, and endotracheal suction procedures.
Warranty: 10 Years.

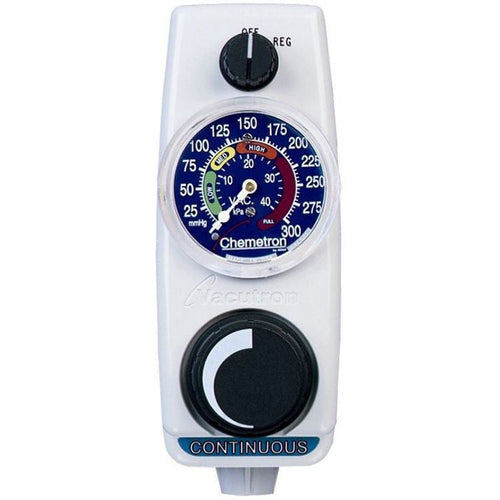

The Allied Healthcare Vacutron Continuous Suction Regulator contains a brightly colored, easy-to-read gauge that measures up to 320 mm Hg. The regulator has a safety relief valve that prevents the suction from failing or showing an inaccurate reading, as well as keeping the suction stable.
This regulator is available in both United States and International models.
Features
Allied Healthcare Vacutron Continuous Suction Regulator Features
- Contains safety relief valve for patient comfort and operator assistance.
- Maximum suction of 320 mm Hg.
- Versatile for continuous suction in patients of all ages.
Specifications
Allied Healthcare Vacutron Continuous Suction Regulator Specifications
- Dimensions: 6.8" (H) x 2.65" (W) x 4.07" (D) (17.27 cm x 6.73 cm x 10.34 cm).
- Weight: 1.3 lb (0.59 kg).
- Operating Modes: OFF and Regulated.
- Regulated Vacuum Range: 0 - 300 mm Hg.
- Safety Relief Valves: 1 @ 320 mm Hg.
- Vacuum Gauge Scale:
- 0 - 300 mm Hg in 5 mm Hg increments.
- 0 - 40 kPa in 2 kPa increments.
Configurations
Allied Healthcare Vacutron Continuous Suction Regulator Configurations
United States Configurations:
| Configuration | Inlet to Wall Fitting | Outlet to Patient Fitting |
|---|---|---|
| #22-13-0100 | 1/8" NPT Female | DISS Male |
| #22-13-0102 | Serrated Hose Stem | DISS Male |
| #22-13-1104 | Oxequip Med*Star | DISS Male |
| #22-13-1105 | Puritan Bennett | DISS Male |
| #22-13-1106 (recommended) | Ohmeda Diamond | DISS Male |
| #22-13-1107 | DISS Female | DISS Male |
| #22-13-1108 (recommended) | Chemetron Quick-Connect | DISS Male |
| #22-13-1100 | Extension 1-1/4" x 1/8" NPT | DISS Male |
| #22-13-1111 | DISS Hand Tight | DISS Male |
| #22-13-1113 (recommended) | Chemetron Quick-Connect / round striker (for pre-1966 Chemetron outlets) | DISS Male |
| #22-13-0200 | 1/8" NPT Female | Metal Barbed Stem |
| #22-13-1200 | Extension 1-1/4" x 1/8" NPT | Metal Barbed Stem |
| #22-13-1204 | Oxequip Med*Star | Metal Barbed Stem |
| #22-13-1205 | Puritan Bennett | Metal Barbed Stem |
| #22-13-1206 (recommended) | Ohmeda Diamond | Metal Barbed Stem |
| #22-13-1207 | DISS Female | Metal Barbed Stem |
| #22-13-1208 (recommended) | Chemetron Quick-Connect | Metal Barbed Stem |
| #22-13-1211 | DISS Hand Tight | Metal Barbed Stem |
| #22-13-1213 (recommended) | Chemetron Quick-Connect / round striker (for pre-1966 Chemetron outlets) | Metal Barbed Stem |
| #22-13-1505 | Puritan Bennett | Bacteria Filter |
| #22-13-1506 | Ohmeda Diamond | Bacteria Filter |
| #22-13-1508 | Chemetron Quick-Connect | Bacteria Filter |
International Configurations:
| Configuration | Inlet to Wall Fittings | Outlet to Patient Fittings |
|---|---|---|
| #22-23-0100 | 1/8" NPT Female | DISS Male |
| #22-23-0200 | 1/8" NPT Female | Metal Barbed Stem |
Accessories
Allied Healthcare Vacutron Continuous Suction Regulator Accessories
The Allied Healthcare Vacutron Continuous Suction Regulator is typically purchased with:
- Disposable Collection Canisters.
- Collection Canister Carrier.
- Canister Holder.
- Specimen Bag.
- Critical Measurement Insert.
Literature
Allied Healthcare Vacutron Continuous Suction Regulator Literature
Allied Healthcare Vacutron Suction Regulators and Accessories Guide
