Description

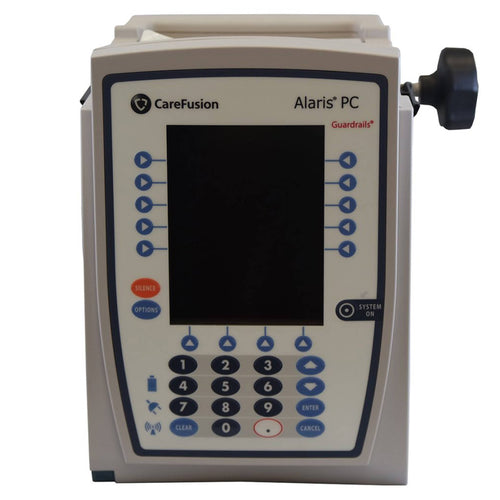

The Alaris 8015 PC serves as the brain of the Alaris 8100 Infusion Pump. This vital component helps deliver controlled amounts of medication or fluids to a patient through intravenous (IV), intra-arterial (IA), epidural, and other means of administration. The Alaris 8015 is available in both small and large screen configurations with both versions utilizing 9.17/9.33 software.
Warranty: 6 Months.
Note: The following error codes are used to indicate a problem.
- System error.
- 600.6835.
- Common error.
- 500.5040.
Features
Alaris 8015 PC Features
- Features two IUI Connectors (left and right).
- Soft keys allow for the selection of options or infusion parameters on the main display adjacent to the selected soft key.
- When pressed during an alarm the silence key silences audio for two minutes.
- The options key allows access to available system or channel Options.
- Battery indicator, power indicator, and wireless network indicator all illuminate to indicate they are in-use. The wireless network indicator will blink to indicate a data transfer.
- Simply press the module release latch to remove the module.
Specifications
Alaris 8015 PC Specifications
- Communication Data Port: RS-232 with an RJ45 connector.
- Dimensions: 6.9" W x 8.8" H x 9" D (including pole clamp).
- Electric Classification: Class 1, Internally Powered Equipment.
- Equipment Orientation: To ensure proper operation, Alaris System must remain in an upright position.
- Fluid Ingress Protection: IPX1, Drip Proof.
- Mode of Operation: Continuous.
- Power Requirements: 100 - 240V ~, 50/60 Hz, 150 VA MAX.
- Shock Protection: Type CF, Defibrillator-Proof patient applied part.
- Weight: 7.2 lb.
Configurations
Alaris 8015 PC Configurations
- #BDX-8015: Small Screen.
- #BDX-8015-LG: Large Screen.
