Description

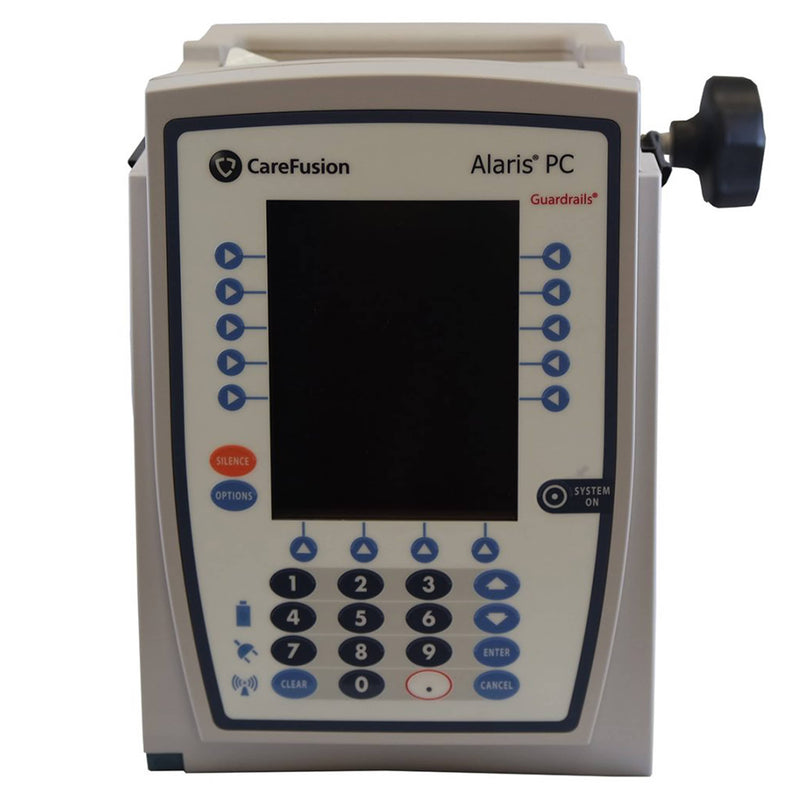

The Alaris 8015 PC serves as the brain of the Alaris 8100 Infusion Pump. This vital component helps deliver controlled amounts of medication or fluids to a patient through intravenous (IV), intra-arterial (IA), epidural, and other means of administration. The Alaris 8015 is available in both small and large screen configurations with both versions utilizing 9.17/9.33 software.

Warranty: 6 Months.

Note: The following error codes are used to indicate a problem.

  • System error.
  • 600.6835.
  • Common error.
  • 500.5040.

Features

Alaris 8015 PC Features

  • Features two IUI Connectors (left and right).
  • Soft keys allow for the selection of options or infusion parameters on the main display adjacent to the selected soft key.
  • When pressed during an alarm the silence key silences audio for two minutes.
  • The options key allows access to available system or channel Options.
  • Battery indicator, power indicator, and wireless network indicator all illuminate to indicate they are in-use. The wireless network indicator will blink to indicate a data transfer.
  • Simply press the module release latch to remove the module.

Specifications

Alaris 8015 PC Specifications

  • Communication Data Port: RS-232 with an RJ45 connector.
  • Dimensions: 6.9" W x 8.8" H x 9" D (including pole clamp).
  • Electric Classification: Class 1, Internally Powered Equipment.
  • Equipment Orientation: To ensure proper operation, Alaris System must remain in an upright position.
  • Fluid Ingress Protection: IPX1, Drip Proof.
  • Mode of Operation: Continuous.
  • Power Requirements: 100 - 240V ~, 50/60 Hz, 150 VA MAX.
  • Shock Protection: Type CF, Defibrillator-Proof patient applied part.
  • Weight: 7.2 lb.

Configurations

Alaris 8015 PC Configurations

  • #BDX-8015: Small Screen.
  • #BDX-8015-LG: Large Screen.

Literature

Alaris 8015 PC Literature

Alaris 8015 PC Operators Manual
