Description

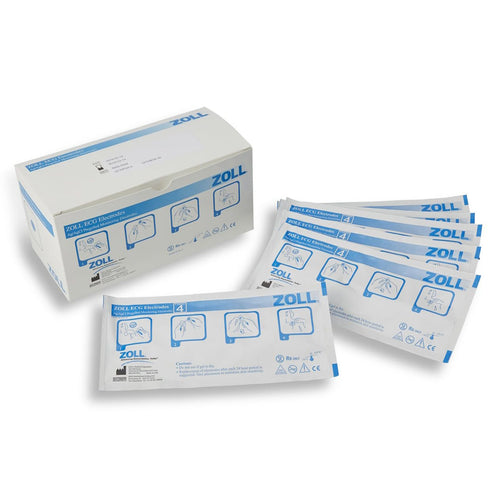

The Zoll ECG Monitoring Electrodes offer stable and reliable ECG traces with low signal noise. Each electrode has adhesive with excellent patient adherence that withstands difficult conditions found in emergency situations. They are made of medical grade white polyethylene and feature high-tack medical grade adhesive ideal for all skin types.
Warranty: Until Use or Expiration (24 Month Shelf Life).
ECG Monitoring Electrodes are designed for use in emergency, holter, surgery, ICU/CCU, stress test, and EMS applications / environments with the E Series, M Series, R Series, or X Series defibrillators.
Features
Zoll ECG Monitoring Electrodes Features
- Sealed Tracerite: A gel cover system that extends product life outside the pouch.
- Material: White polyethylene.
- High-tack medical grade adhesive ideal for all skin types including diaphoretic patients.
- Rectangular shape permits electrodes to be placed close together on patients with smaller chests.
- Latex-free and hypoallergenic.
- Wet conductive gel ensures the best skin coupling.
- Meet all AAMI specifications.
Configurations
Zoll ECG Monitoring Electrodes Configurations
| Part Number | Patient Size | Shape | Electrodes per Pouch | Number of Pouches | Number of Electrodes |
|---|---|---|---|---|---|
| #8900-1003-01 | Pediatric | 1.5" Round | 3 | 100 | 300 |
| #8900-0003 | Standard | Rectangular | 3 | 200 | 600 |
| #8900-0004 | Standard | Rectangular | 4 | 120 | 480 |
| #8900-0005 | Standard | Rectangular | 5 | 100 | 500 |
| #8900-0006 | Standard | Rectangular | 6 | 100 | 600 |
