Description
The Welch Allyn Tycos DS48 Integrated Aneroid Sphygmomanometer is used to consistently and reliably measure blood pressure in adult patients.
Warranty:
- Materials and Workmanship: 10 Years.
- Calibration: Lifetime.
The Welch Allyn Tycos DS48 Integrated Aneroid Sphygmomanometer features an integrated-style gauge and one tube adapter. It plugs directly into an integrated cuff, providing a robust design that is twice as shock resistant as the current DS44 and DS45 Integrated gauges from Welch Allyn. The gauge rotates 360 degrees for easy viewing.
Features
Welch Allyn Tycos DS48 Integrated Aneroid Sphygmomanometer Features
- Gear-free DuraShock technology.
- Laser-engraved dial face for accuracy.
- Gauge rotates 360 degrees for easy viewing from any angle.
- Premium inflation system for patient comfort.
- Certified accuracy to +/- 3 mmHg.
- Jeweled movement for long life.
- Latex-free.
- Withstands a 60" drop, exceeds AAMI's shock resistant requirement.
Specifications
Welch Allyn Tycos DS48 Integrated Aneroid Sphygmomanometer Specifications
- Accuracy: +/- 3 mmHg.
- Operational Range: 0 to 300 mmHg.
- Displayed Range: 0 to 300 mmHg.
- Indication Type: Radial Scale.
- Scale Graduation: Increments of 2 mmHg.
- Pointer Movement: No stop pin.
- Tube Adapter: Integrated, 1 or 2 tube adapter.
- Pressure Generation: Bulb.
- Pressure Reduction: Air Release Valve.
- Environmental Conditions:
- Storage Temperature: -20 degrees C to 70 degrees C (-4 degrees F to 158 degrees F).
- Storage Relative Humidity: 15% to 95% (non-condensing).
- Operating Temperature: 10 degrees C to 40 degrees C (50 degrees F to 104 degrees F).
- Operating Relative Humidity: 15% to 90% (non-condensing).
Configurations
Welch Allyn Tycos DS48 Integrated Aneroid Sphygmomanometer Configurations
- #DS48: Gauge Only.

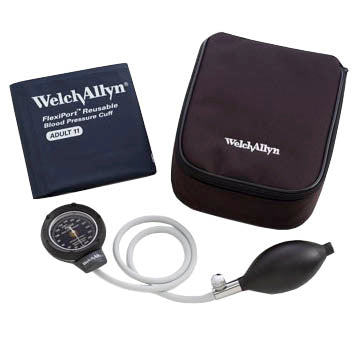

- #DS48-11: Size-11 Adult, FlexiPort Reusable, 1-Tube Cuff, Zipper Case.
