Description

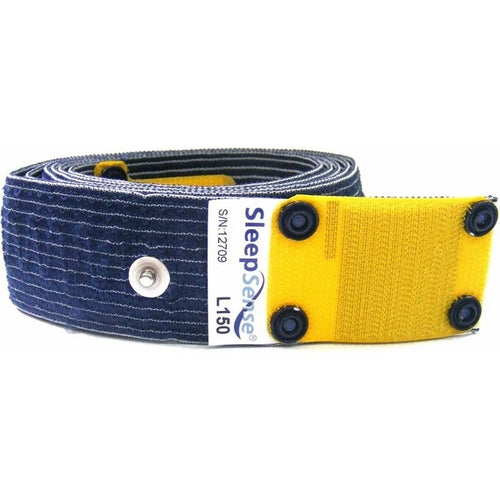

The SleepSense Adult Inductive Plethysmography Belt is sold in a pack of two and is made of a high-quality, soft, and flexible material providing superior comfort to the patient. Velcro tabs allow you to conform any belt specifically to your patient's size. These belts have the ability to stretch up to 1.5x their initial size. The generous width of the belt minimizes the sliding and shifting that occurs during the night.
NOTE: SleepSense items are for professional use only, and are for sale by or on the order of a physician only.
Warranty: 60 Days - Free of Defects in Materials and Quality Workmanship.
SleepSense Inductive Belts are semi-reusable, and should last for around 70 uses, however some labs have reported much longer usage. Due to the durable semi-reusable design, these belts have a low per-use cost.
The inductance of the inductive belt is exactly proportional to the cross section area of the band's closed loop around the body, and therefore changes as the patient breathes. The electronics in the system or interface box measure these inductive changes to generate a signal that is the most accurate and reliable replication of respiration waveforms.
Inductive belts easily connect to any system compatible with inductive effort sensors through a dedicated SleepSense interface cable.
Compatibility Chart
The SleepSense Adult Inductive Plethysmography Belt is compatible with the following products from these medical brands:
| Brand | Compatible Product |
|---|---|
| CareFusion | SensorMedics Viasys |
| QDC Pro | |
| SomnoStar z4 | |
| Cadwell | Easy III |
| Easy Ambulatory PSG | |
| ApneaTrak | |
| CompuMedics | CompuMedics Somte |
| CompuMedics E Series | |
| Philips Respironics | Alice 6 |
| Alice 5 | |
| Alice 4 | |
| Alice 3 | |
| Natus | Embla N7000 |
| Embla S4500 | |
| Sandman 32 | |
| Sandman 20 | |
| Xltek | |
| Biologic | |
| Embletta | |
| Grass | |
| Stellate | |
| Nihon Kohden | Polysmith |
| Nomad | |
| Sphinx | |
| NeuroVirtual | BWII PSG |
| BWII PSG/EEG |
Configurations
SleepSense Adult Inductive Plethysmography Belt Configurations
- #9002-L90: Large (90 cm) - White (white with blue Velcro).
- #9003-L90: Large (90 cm) - Blue (blue with blue Velcro).
- #9002-L120: XL (120 cm) - White (white with black Velcro).
- #9003-L120: XL (120 cm) - Blue (blue with black Velcro).
- #9002-L150: XXL (150 cm) - White (white with yellow Velcro).
- #9003-L150: XXL (150 cm) - Blue (blue with yellow Velcro).
