Description

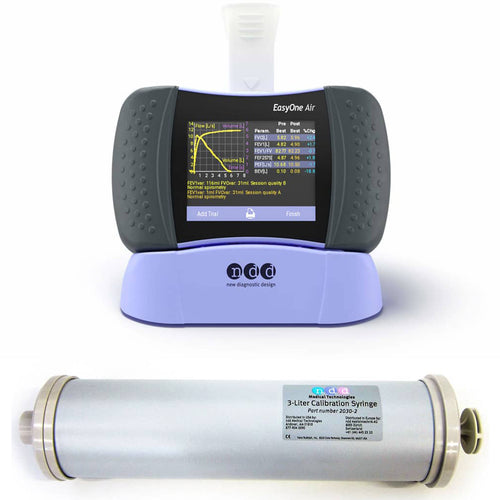

The ndd Medical EasyOne Air Spirometer Package (#2500-PKG) includes an EasyOne Air Spirometer (#2500-2) and 3-Liter Calibration Syringe with Calibration Adapter (#2030-2).
Warranty: 3 Years.
Flexible and accurate, the EasyOne Air Spirometer features innovative TrueFlow technology to deliver the most reliable results possible without the need for calibration for a lifetime of stress-free operation. Boasting a vivid color touch screen, the EasyOne makes it easy to navigate and view real-time results and enter data. Capable of being used as a portable or as a PC spirometer, it delivers consistent results regardless of setting and environmental factors and also easily connects to a PC for real-time patient incentives, data exchange, and EMR connectivity.
Although your EasyOne does not require calibration, the package also includes a 3-Liter Calibration Syringe to help you verify the accuracy of your spirometer on a regular basis. This calibration syringe makes verification incredibly easy so you can ensure accurate lung function testing for results you can depend on for diagnosis and treatment.
Features
ndd Medical EasyOne Air Spirometer Package Features
- Spirometer:
- Large, easy-to-read color touch screen.
- Easy navigation.
- Long-term stable calibration.
- Rechargeable battery (> 100 tests with one charge).
- Bluetooth connectivity.
- Flexible use, consistent results.
- Switch between portable or PC mode.
- Real-time animated incentives.
- Real-time data transfer.
- Proven EMR integration with top EMR/EHR systems.
- Calibration Syringe:
- Comes with an adapter that ensures a proper fit with your ndd spirometer.
- Helps make lung function testing faster, simpler, and more reliable.
- The American Thoracic Society and the NIOSH/OSHA recommends that the accuracy of your spirometer be verified on a regular basis.
Specifications
ndd Medical EasyOne Air Spirometer Package Specifications
- Size: 3.4" x 6.1" x 1.4" (87 mm x 155 mm x 36 mm).
- Weight: 6.66 lb (0.81 lb Spirometer + 5.85 lb Calibration Syringe).
- EMR Connectivity: EasyOne Connect.
- Measuring Range:
- Volume: ± 2% or 0.050 l.
- Flow: ± 2% or 0.020 l/s (except PEF).
- PEF: ± 5% or 0.200 l/s.
- MVV: ± 5% or 5 l/min.
- Volume: ± 12 l.
- Flow: ± 16 l/s.
- Resistance: Approximately 0.3 cm HO/L/s.
- Languages: English, Danish, Dutch, French, German, Italian, Norwegian, Polish, Portuguese, Russian, Spanish, and Swedish.
- Display: 64 x 160 graphic display.
- Data Entry: 14-key keyboard.
- Data Memory: For up to 700 tests.
- Test Modes "Diagnostic": FVC, FVL, SVC, MVV, and Pre/Post Testing.
- Test Modes "Frontline": FVC, Pre/Post.
- Parameters "Diagnostic": FVC, MVV, FEV6, FEV1, FEV1/FVC, FEV1/FEV6, FEF75 (MEF25), FEF50 (MEF50), FEF25 (MEF75), MEF25%-75%, PEF, FET, FIVC, PIF, IVC, VC, FEV1/VC, ERV, IRV, pre-post % variation, Lung Age.
- Parameters "Frontline": FVC, FEV6, FEV1, FEV1/FVC, FEV1/FEV6, PEF, pre-post % variation, Lung Age.
- Measurement Principle: Ultrasound transit time.
- Power Supply: 2 alkaline batteries, type AA, 1.5 V.
- Report: A4 or 8.5" x 11", supports PictBridge standard and direct USB printing in conjunction with selected printers.
- Storage:
- Temperature: -40 to 70 °C.
- Relative Humidity: 0 to 95%.
- Ambient Pressure: 500 to 1060 hPa.
- Operating Conditions:
- Temperature: 0 to 40 °C.
- Relative Humidity: 0 to 95%.
- Ambient Pressure: 500 to 1060 hPa.
- Certifications and Standards: CE Declaration of Conformity, see attachment. C CSA US approval, CAN/CSAC22. 2 NO. 601.1-M90, S1-94, CSA 601.1 Amendment 2: 1998, UL Std No. 2601.1, FDA 510 (k) approval, K993921 EasyOne meets or exceeds the published targets of the European Respiratory Society (ERS), the American Thoracic Society (ATS) and the National Lung Health Education Program (NLHEP).
- Instrument Classification: Type BF applied part, powered internally with two AA alkaline batteries, short time operation, less than 10 minutes, instrument not suitable for use in flammable anesthetic gases in mixtures with O or NO.
- Life Time: 7 years.
Accessories
ndd Medical EasyOne Air Spirometer Package Accessories
The following accessories are compatible and commonly purchased with the EasyOne Air Spirometer Package:
- #2020-5: Portable Color Inkjet Printer.
- #2030-3: Spirette Calibration Adapter.
- #2030-4: Nose Clips (25/Bag).
- #5030-2: FlowTube Calibration Adapter.
- EasyOne FlowTube Mouthpiece:
- #5050-50: Box of 50.
- #5050-200: Case of 200.
Literature
ndd Medical EasyOne Air Spirometer Package Literature
ndd Medical EasyOne FlowTube Factsheet
ndd Medical Spirometry Reimbursement
ndd Medical EasyOne Air Spirometer Operator's Manual
ndd Medical EasyOne Air Spirometer Sample Report
ndd Medical EasyOne Air Spirometer Software Update
ndd Medical EasyOne Air Spirometer Software Version History
ndd Medical EasyOne Air Spirometer Technical Manual
