Description

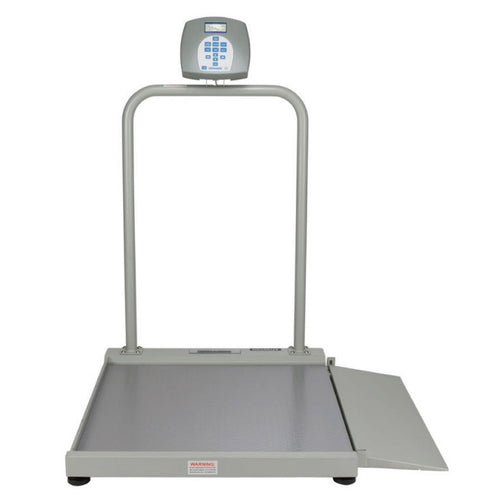

The Health o meter 2500 Digital Wheelchair Ramp Scale is a scale solution designed to weigh patients who are safely seated in a wheelchair, seated in the optional chair attachment, or standing on the platform. It features a high-contrast color screen and user-friendly interface.
Warranty: 2 Years.
Note: Please contact MFI if you would like to purchase an additional 2 Year Extended Warranty.
Features
Health o meter 2500 Digital Wheelchair Ramp Scale Features
- Ability to interface with a computer, EMR software, or other electronic device via various Health o meter Professional Connectivity Solutions.
- Two wheels provide easy mobility and allow for convenient placement.
- Display head rotates and pivots allowing line-of-sight viewing and information privacy.
- On-screen help menu guides users through operating functions and provides easy access to multiple settings.
- Everlock option allows users to permanently lock the scale in either LB or KG to improve safety.
- High-contrast color screen provides a user-friendly interface.
Specifications
Health o meter 2500 Digital Wheelchair Ramp Scale Specifications
- Capacity: 1,000 lb (454 kg).
- Seat Capacity: 419 lb (190 kg).
- Resolution: 0.2 lb (0.1 kg).
- Platform Size: 29.4" x 28.25" x 2.4" (746 mm x 718 mm x 60 mm).
- Seat Size: 18" x 15" x 18.5" (457 mm x 381 mm x 470 mm).
- Ramp Size: 28.25" x 9.9" (714 mm x 248 mm).
- Footprint: 40.25" x 34.5" x 45.5" (1022 mm x 876 mm x 1156 mm).
- Weight: 121 lb (55 kg).
- Display: 1.5" (38 mm) High-Contrast Color TFT-LCD Screen.
- Wheels: 2.
- Power Source: 100 - 240 V adapter included; 6 D batteries (not included).
- Connectivity: USB, optional Pelstar wireless technology.
- Functions: LB/KG Conversion, LB/KG Lock Out, BMI, Zero, Tare, Pre-Tare, Hold/Release, Reweigh, Recall, Auto Zero, Auto Off, Time/Date, Variable Auto Off, Time, Audible/Mute Sound Option, Everlock.
Configurations
Health o meter 2500 Digital Wheelchair Ramp Scale Configurations
- #2500KL: Scale (LB or KG).
- #2500KG: Scale (KG Only).
- #2500KG-BT: Scale (KG Only) with Pelstar wireless technology.
- #2500KL-BT: Scale (LB or KG) with Pelstar wireless technology.
Literature
Health o meter 2500 Digital Wheelchair Ramp Scale Literature
Health o meter 2500 Digital Wheelchair Ramp Scale Brochure
Health o meter 2500 Digital Wheelchair Ramp Scale Calibration
Health o meter 2500 Digital Wheelchair Ramp Scale User Instructions
