Description

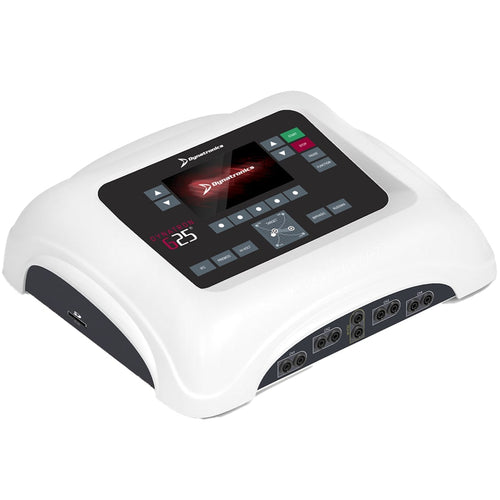

The Dynatronics Dynatron 625 5 Channel Stim Unit (#D625T) allows fully-independent treatment setups including Interferential, Premodulated, Biphasic, High Voltage pulsed stimulation, and Russian stimulation using any available electrotherapy channel.
Warranty: 2 Years - Free from Factory Defects in Materials and Workmanship under normal use.
You can select three different frequencies without changing the soundhead. The 2 cm2, 5 cm2, and 10 cm2 soundheads all operate at 1, 2, and 3 MHz, providing the greatest flexibility in depth of treatment. Choose 1 MHz for deep treatments, 2 MHz for moderate depth, or 3 MHz for superficial depth.
Features
Dynatronics Dynatron 625 5 Channel Stim Unit Features
- Deliver up to five channels of stimulation all at the same time.
- Treatment parameters are highly visible, easy to read, and changed at the touch of a fingertip.
- Target and Target Sweep: Focus treatment where it's needed by simply gliding your finger across the TARGET touchpad to move the center of interference to the site of your patient's pain.
- Most treatments can be set up in as few as three key presses.
- SmartHead Technology: All calibration information is stored within the soundhead. Each soundhead plugged into the device will be uniquely recognized and ready to use.
- Battery (optional): 12-volt battery offers greater flexibility and portability in treatment sites.
Specifications
Dynatronics Dynatron 625 5 Channel Stim Unit Specifications
- Weight: 8.2 lb (3.7 kg).
- Dimensions: 18.5" (W) x 4" (H) x 12" (D) (47 cm x 10.2 cm x 30.5 cm).
- Power Requirements: 100 - 240 V~, 50/60 Hz.
- Power Consumption: 100 Watts.
- Fuse: 250 V, 1.6 A slow blow.
- Shipping Weight: 15 lb (6.80 kg).
- Shipping Dimensions: 21" x 18" x 13" (53.34 cm x 45.72 cm x 33.02 cm).
Accessories
Dynatronics Dynatron 625 5 Channel Stim Unit Accessories
The following accessories are compatible with the Dynatron 625 5 Channel Stim Unit:
- #GR573197: 12 V Battery.
- Dynatron Ultrasound Applicator Smarthead:
- WSH02: 2 cm2.
- WSH05: 5 cm2.
- WSH20: 20 cm2.
Literature
Dynatronics Dynatron 625 5 Channel Stim Unit Literature
Dynatronics General Line Rehabilitation Products Guide
