Description

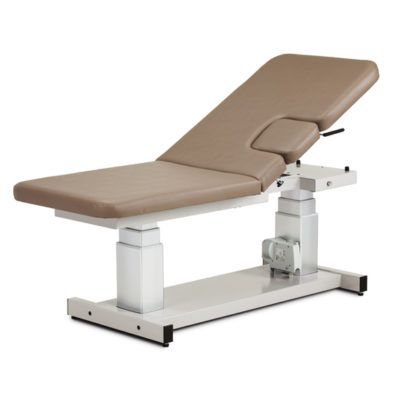

The Clinton Imaging Table with Fowler Back and Drop Window features a two-piece top with a pneumatic adjustable backrest and a window drop. Imaging table also includes a paper dispenser.
Warranty: 5 Years - Limited Defects in Materials, Workmanship, or Design.
Features
Clinton Imaging Table with Fowler Back and Drop Window Features
- Two-piece top with pneumatic adjustable backrest and a drop window.
- Trendelenburg/Reverse Trendelenburg plus or minus 15 degrees.
- Easy-to-use hand controls.
- All-welded base and top frame.
- Unobstructed base design.
- Dual column lift system adds rigidity.
- Paper dispenser included.
- Power supplies and motors meet UL 60601-1 and CAN/CSA C22.2 601.1.
- Industry leading 5-year, limited warranty.
- Optional side rails and casters available.
- 34 inch wide model available.
- 550 lb load capacity under normal use.
Specifications
Clinton Imaging Table with Fowler Back and Drop Window Specifications
#80072 (Standard Width):
- Length: 72 in.
- Width: 27 in.
- Height Range: 21.5-37.5 in.
- Backrest: 38 x 27 in.
- Window: 10 x 10 in.
#80072-X (Extra Width):
- Length: 72 in.
- Width: 34 in.
- Height Range: 21.5-37.5 in.
- Backrest: 38 x 34 in.
- Window: 10 x 10 in.
Accessories
Clinton Imaging Table with Fowler Back and Drop Window Accessories
The Clinton Imaging Table with Fowler Back and Drop Window is commonly purchased with the following:
- #011: Power Backrest - Smooth power control raises backrest to 80 degrees and lowers to flat.
- #080: Safety Straps - 2 safety straps per set each measuring 2 x 89.5 in, strap is secured with quick hook and loop fasteners. Bariatric straps measuring 2 x 120 in each also available.
- #087: Locking Casters - 3 in heavy duty, rubber wheel, easy-roll casters. Note: Addition of casters adds 6 in of overall width to the table.
- #098: Safety Rails - Available in pairs, can be positioned at 3 heights, includes a plunger height adjustment.
