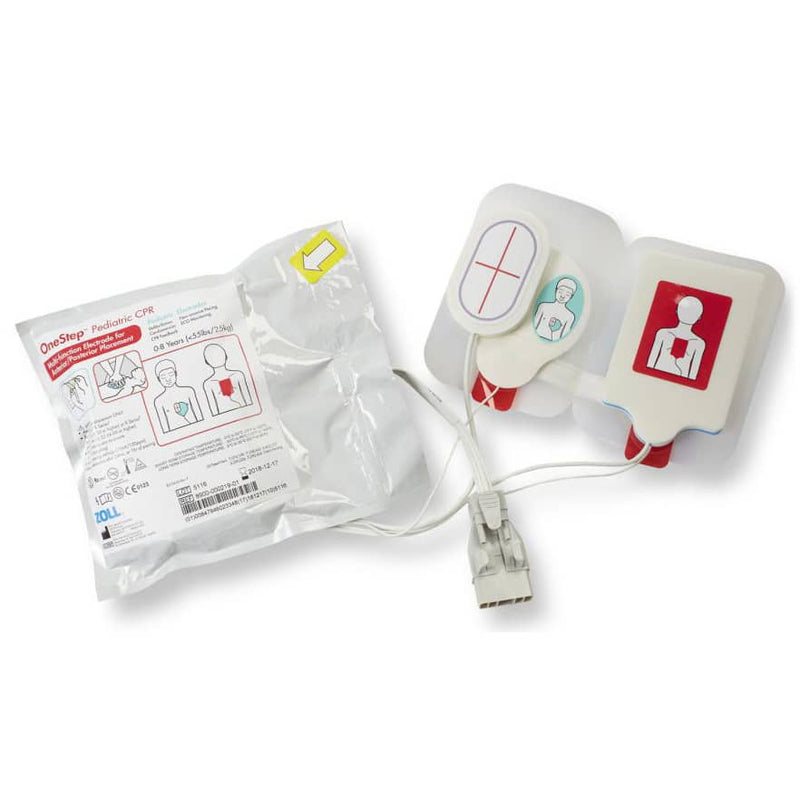

Zoll OneStep Pediatric Resuscitation Defibrillator Electrodes

The Zoll OneStep Pediatric Resuscitation Defibrillator Electrodes are designed for pediatric patients - children who are under 8 years old, and up to 55 pounds, while also enabling defibrillation, pacing, and cardioversion.

Warranty: 90 Days (2 Year Shelf Life).

When used with the R Series defibrillators, these electrodes use a unique pediatric algorithm that reduces the likelihood that a compensating rhythm will be terminated and ensures any unique pediatric ECG morphology will be accurately identified when a shock or cardioversion is indicated. When attached to the R Series, the defibrillator will automatically lower the starting shock energy to pediatric levels (50 joules) to ensure safe defibrillation.

Keeping track of electrode expiration is easy with the OneStep Pediatric Electrodes, as alerts will let you know when expiration approaches. In addition, the R Series conducts a daily Code-Ready test automatically without disconnecting the electrodes. A green check mark will be displayed if the R Series is Code-Ready, a red X if it is not.

Zoll OneStep Pediatric Resuscitation Defibrillator Electrodes Specifications

• Built-in CPR sensor.
• Age: 0 - 8 years.
• Weight: < 55 pounds (25 kg).
• Pacing Time: 1 hour.
• Pre-Connect: Yes (CodeReady Connector).
• Shelf Life: 2 Years.
• Lead Wire Length: 34".
• Size: Pediatric.
• Compatibility: Zoll E, M, R, and X Series Defibrillators.
• Conductive Gel: Solid gel.
• Conductive Element: AgCl sensor.
• Packaging: Protective outer tray containing multilayer foil laminate pouch.
• Non-sterile.

Zoll OneStep Pediatric Resuscitation Defibrillator Electrodes Package Quantities

• #8900-0218-40: 1 Pair.
• #8900-0215-40: 8 Pairs.

Zoll OneStep Pediatric Resuscitation Defibrillator Electrodes Literature

Zoll Pediatric Solutions Brochure

Zoll Electrode Product Guide

Zoll Pediatric Resuscitation Care

Zoll R Series OneStep Electrodes Spec Sheet
