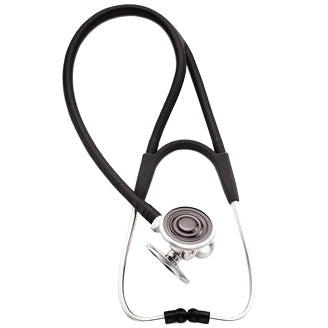

The Welch Allyn Harvey DLX Stethoscope is designed to enable medical professionals to obtain superior and accurate auscultation.

Warranty: 10 Years.

The Welch Allyn Harvey DLX Stethoscope features a trumpet base design which allows users to hear more of the important cardiac, pulmonary, vascular, and abdominal sounds without relying on difficult "variable pressure" techniques.

Two-tube stethoscopes like the Harvey DLX provide an individual sound channel to each ear. This allows users to hear the subtle characteristics of heart sounds and murmurs more distinctly. The heavier tubing also filters out the distracting noise typical of a busy medical environment.

This durable, low cost stethoscope is well suited for use in private offices as well as busy hospital settings. Its unique and lasting design guarantees performance and longevity in any environment.


Welch Allyn Harvey DLX Stethoscope Features

  • Full range cardiology/pulmonary stethoscope.
  • Bell provides excellent detection and clarity for low and medium frequency heart sounds and murmurs (such ad a faint gallop or diastolic rumble).

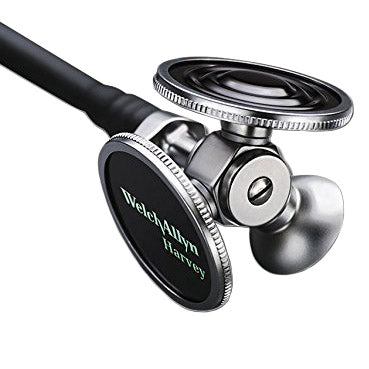

  • Available with rotatable triple-head (brass bell and corrugated diaphragm).
  • Rotatable binaurals and interchangeable comfort sealing ear tips.
  • Not made with natural rubber latex.
  • Triple-leaf binaural spring encased in polyurethane allows size adjustment while preventing breakage.
  • Corrugated diaphragm provides advanced amplifying quality. It is excellent for an overview of heart sounds, and is especially suited for low-frequency gallop sounds and murmurs.


Welch Allyn Harvey DLX Stethoscope Specifications

  • Shipping Dimensions: 7.8" x 14.8" x 2.6" (19.8 cm x 37.6 cm x 6.5 cm).
  • Shipping Weight: 1.2 lb (0.55 kg).
  • Tubing Length: 28" (71 cm).
  • Head Diameter: 1.9" (4.83 cm).
  • Chestpiece Material: Brass.
  • Diaphragm Material: Polycarbonate.
  • Diaphragm Style: Flat or Corrugated.
  • Adjustable Binaural: Yes.
  • Type of Tubing: Dual Lumen.


Welch Allyn Harvey DLX Stethoscope Configurations

  • #5079-325: Double Head Stethoscope; Black.

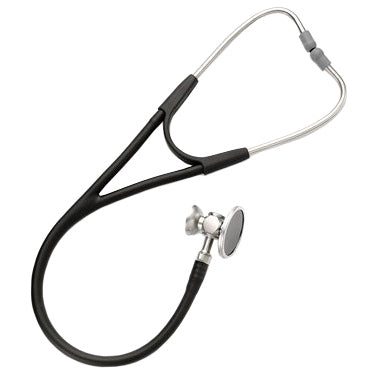

  • #5079-321: Triple Head Stethoscope; Black.
  • #5079-327: Double Head Stethoscope; Navy.
  • #5079-328: Double Head Stethoscope; Green.

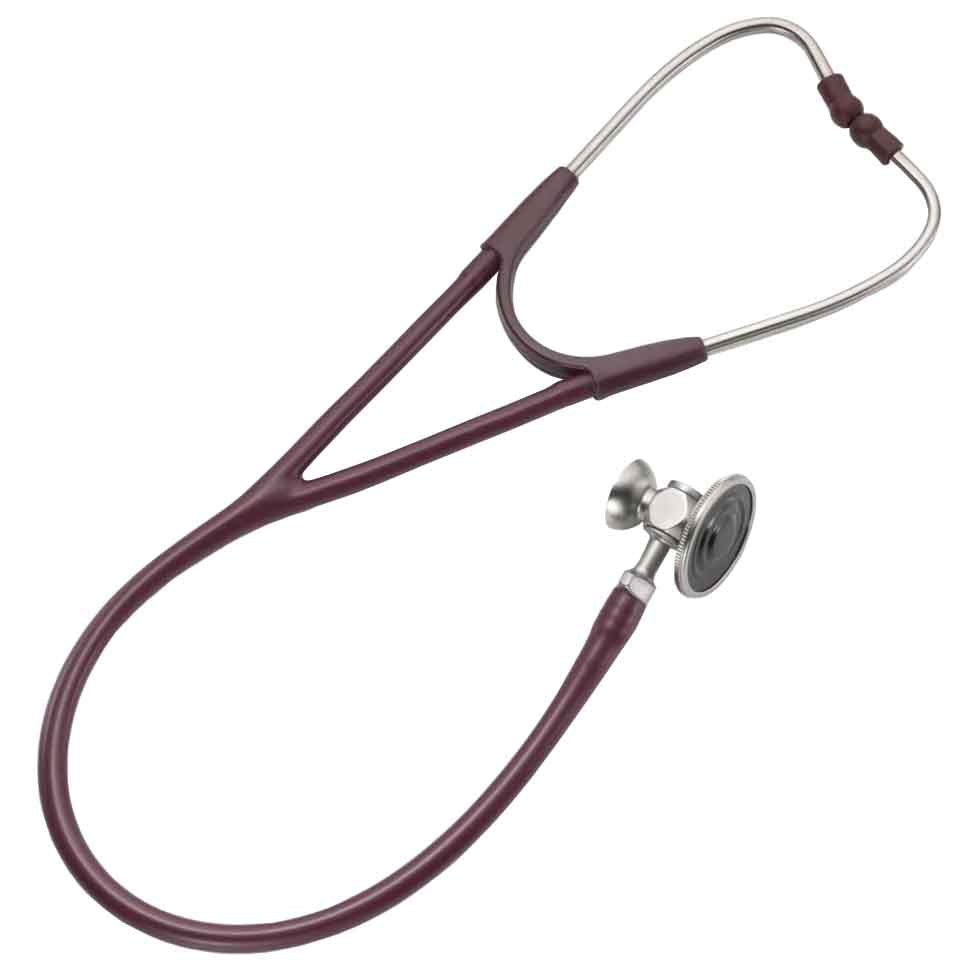

  • #5079-326: Double Head Stethoscope; Burgundy.

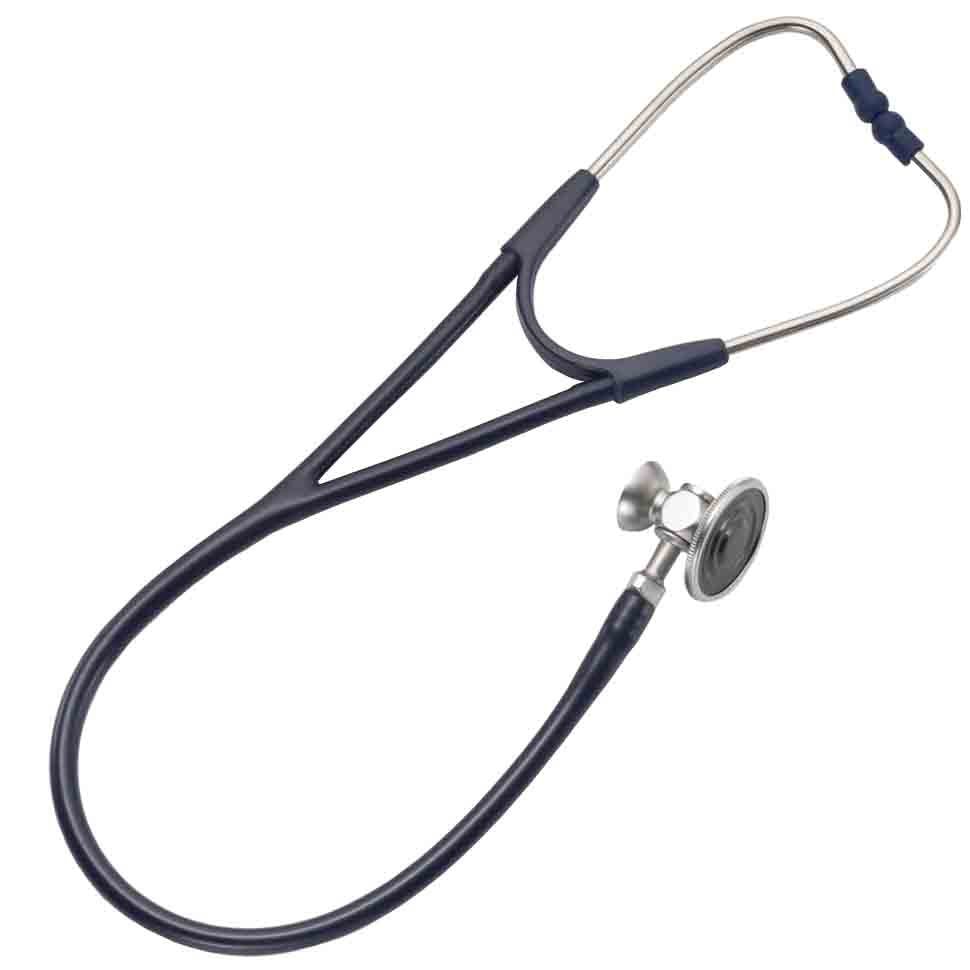

  • #5079-323: Triple Head Stethoscope; Navy.

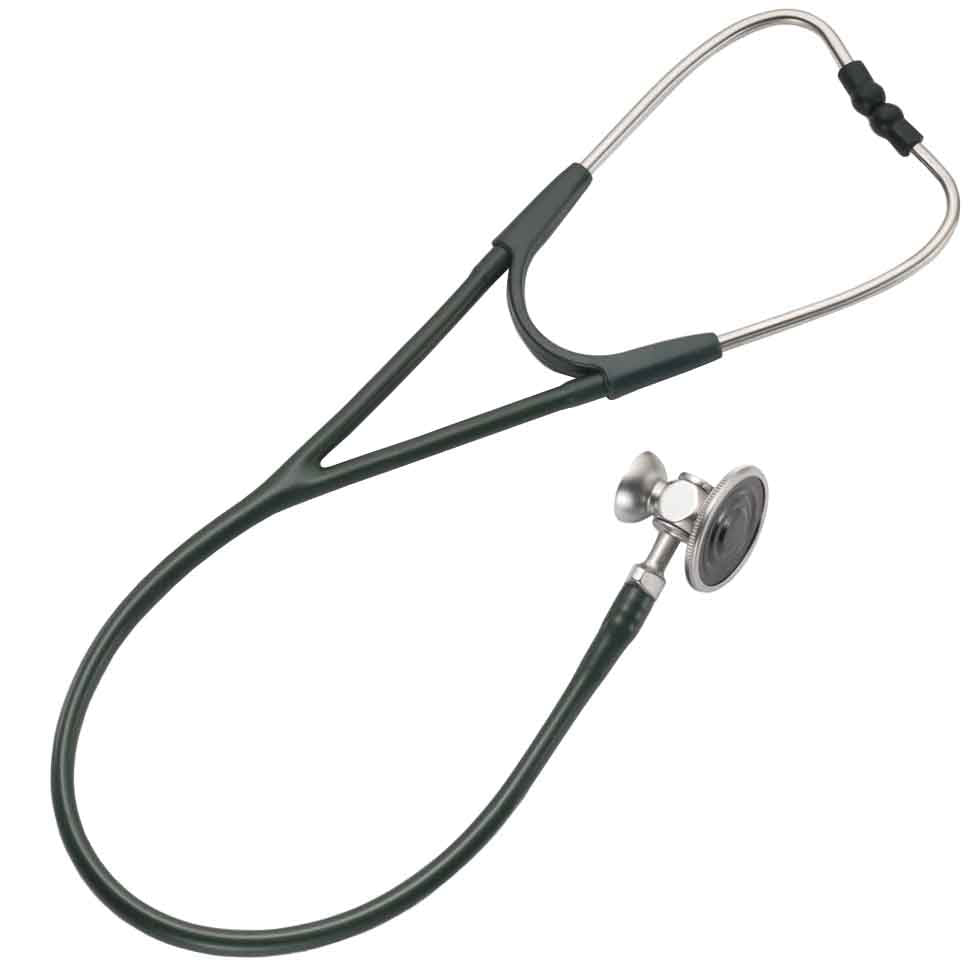

  • #5079-324: Triple Head Stethoscope; Green.
  • #5079-322: Triple Head Stethoscope; Burgundy.
