VectraCor VectraplexECG System

The VectraplexECG System maximizes efficiency by reducing the required patient leads while maintaining comprehensive diagnostic capability. It requires significantly fewer electrodes than traditional setups:

• Electrode Count: Only five electrodes are required for patient monitoring.
• Diagnostic Output: From this 5-electrode placement (US standard), the system accurately derives a full 15-lead ECG.
• Advanced Capabilities: The 15-lead functionality includes the standard 12-lead ECG, along with Vectorcardiogram (VCG)/XYZ leads and vector loops.

This setup streamlines workflow and minimizes patient contact while incorporating the unique Cardiac Electrical Biomarker (CEB) feature for detecting potential indicators of an Acute Myocardial Infarction (AMI).

Yes, the VectraCor VectraplexECG System includes a proprietary feature for advanced cardiac monitoring called the Cardiac Electrical Biomarker (CEB).

This unique function is designed to:

• Detect AMI: Identify ECG changes suggestive of an Acute Myocardial Infarction (AMI).
• Streamline Diagnostics: Allow for rapid assessment of critical electrical changes without requiring separate diagnostic devices.

Yes, the VectraplexECG System is designed for hospital and clinic environments and complies with stringent international medical safety and performance standards.

Compliance ensures the device’s reliability and safe operation. The system meets the following key standards:

• Medical Safety and EMC Compliance:
  • EN60601-1
  • EN60601-1-2
  • EN60601-2-25
• Performance and Accuracy:
  • AAMI EC11 (The system meets the AAMI EC11:1991 requirements for accuracy.)

The Software and ECG Device Only configuration (Model #V100900) provides the essential hardware and software required to perform advanced ECG analysis using your existing Windows-compatible PC.

This package includes:

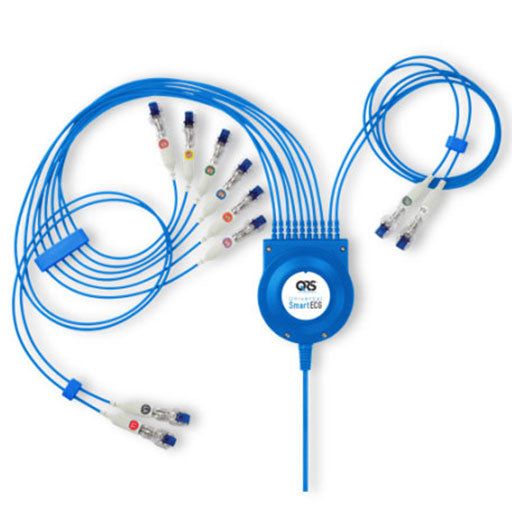

• ECG Device Hub (SmartECG): The core acquisition unit.
• VectraplexECG Software: Proprietary software enabling advanced analysis, including the unique Cardiac Electrical Biomarker (CEB) feature.
• 12-Lead Cable: Utilizing 10 patient electrodes for comprehensive measurements.
• USB-based ECG Cable: Connects the device to your Windows PC for both power and data transfer.

Important Note: This configuration does not include a computer, monitor, battery backup, or rolling stand. These peripherals must be supplied by the user.

Yes, the VectraplexECG System is designed for seamless integration with Windows operating systems. It includes a USB-based ECG cable that is fully Windows compatible, allowing for easy setup and use within your hospital or clinic’s existing infrastructure.

Yes, the VectraplexECG System is designed for maximum efficiency and convenience in clinical settings, as it does not require an external power supply. It draws power directly from the host computer.

Key power specifications are:

• Power Source: The device is powered via a PC USB or PS/2 port.
• Supply Voltage: 4 - 16 V DC
• Supply Current: The system draws very little power, requiring less than 17 mA DC.

This simple, low-power design enhances mobility and simplifies deployment in hospitals and clinics.

The Hospital Package configuration is a comprehensive, factory-new system designed for immediate clinical deployment in hospital wards and ICUs, featuring enhanced mobility and infection control components.This configuration includes the core monitoring device and essential peripherals:

• VectraplexECG System: ECG Device Hub (SmartECG), USB-based ECG cable, 12-Lead Cable (10 patient electrodes), and VectraplexECG software.
• Hospital Peripherals:
  • Rolling stand with basket
  • Anti-microbial touch screen computer and monitor
  • Battery backup
  • Waterproof keyboard and mouse

The VectraCor VectraplexECG System is designed for reliable performance in clinical settings and complies with key safety standards (AAMI EC11, EN60601 series).

Its specified environmental limits are:

• Operating Temperature: 0° C to 40° C (32° F to 104° F)
• Storage Temperature: -20° C to 70° C (-4° F to 158° F)
• Humidity Range: 5% - 85% (non-condensing)

Yes, the VectraplexECG System is engineered for efficient report sharing and a streamlined workflow, ensuring immediate access to vital information.

Key reporting and connectivity features include:

• Direct Emailing: Users can produce and email professional reports directly from the monitoring system, bypassing the need to transfer data to a separate computer.
• EMR Integration: The system supports EMR connectivity for seamless integration into existing electronic medical records workflows.
• Report Quality: Reports are generated with a standard 12-Lead ECG with auto interpretation and meet AAMI EC11:1991 accuracy requirements.

Yes, the VectraplexECG System is highly efficient and designed to significantly reduce the required number of electrodes while maintaining advanced diagnostic capabilities.

• Reduced Requirement: The system requires only five electrodes to monitor the patient condition, substantially fewer than traditional setups, which streamlines workflow.
• Advanced Analysis: Despite the minimal input, the device can derive a 15-lead ECG (US) from the 5-electrode option, including Vectorcardiogram/XYZ leads and vector loops. It also provides a standard 12-Lead ECG with auto-interpretation.
• Diagnostic Edge: This efficiency supports the use of the unique Cardiac Electrical Biomarker (CEB) feature, which is designed to detect ECG changes suggestive of an Acute Myocardial Infarction (AMI).
