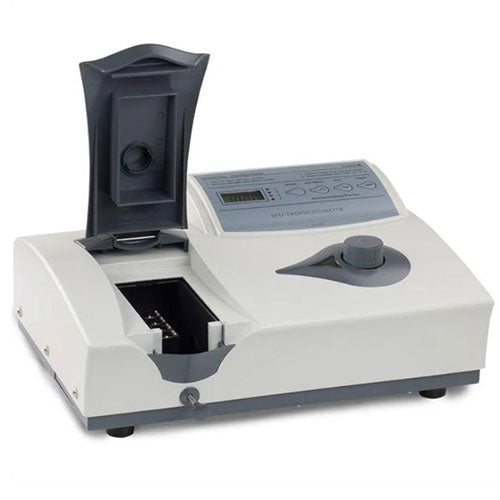

Unico S1200 Visible Spectrophotometer

Yes, the Unico S1200 is specifically engineered as a reliable, general-purpose single-beam spectrophotometer intended for conventional analytical laboratory environments. It is CE approved, ensuring suitability for professional applications.

Its versatile design and 325 nm to 1000 nm wavelength range make it ideal for analytical and quality control (QC) tasks across several sectors, including:

• Clinical Chemistry and Biochemistry
• Petrochemistry
• Environmental Protection
• Food and Beverage QC testing

The Unico S1200 Spectrophotometer is equipped with essential connectivity ports for efficient data transfer and integration:

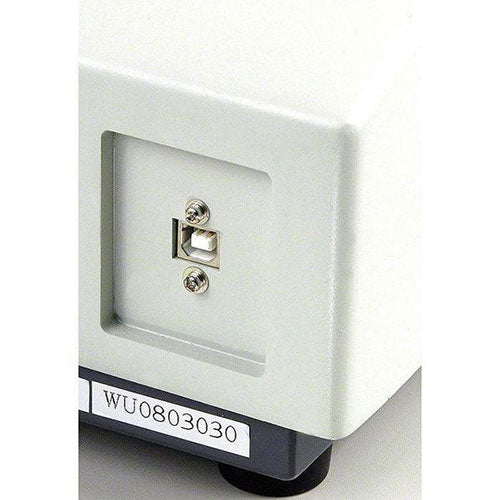

• USB Port
• RS-232C Port

For advanced data management, the optional Unico SS-1.22 Windows-based application software is available. This software enables seamless data collection and supports direct integration into spreadsheet programs like Microsoft Excel.

Yes, the Unico S1200 Visible Spectrophotometer utilizes a tungsten halogen lamp as its light source. This high-quality component is essential for the instrument’s reliable performance and its ability to provide accurate measurements across its wavelength range of 325 to 1000 nm.

The Unico S1200 Visible Spectrophotometer features a high photometric accuracy of ± 1.0 %T (Transmittance). This precise measurement specification ensures the reliable performance required for general-purpose laboratory analyses.

The Unico S1200 Visible Spectrophotometer is shipped with standard items necessary for immediate operation, along with the specific sample holder configuration you select.

Standard Included Items:

• A pair of glass cuvettes
• A protective dust cover
• The User Manual

All units also feature integrated RS-232C and USB ports for data output.

Sample Holder Configurations
The exact cuvette holders included depend on the configuration chosen (110V or 220V):

• V-Type Tube Holder & 10 mm Single Cuvette Holder: This combination accommodates round tubes (8 mm to 25 mm) and includes a box of twelve 10mm Test Tubes.
• 4-Position Cell Holder: Designed exclusively for standard 10 mm square cuvettes.

The Unico S1200 Visible Spectrophotometer is a high-performance instrument covering the visible and near-UV spectrum, making it suitable for diverse routine laboratory analyses. Its performance is supported by a 1200 lines/mm diffraction grating.

The specific spectral specifications are:

• Wavelength Range: 325 nm to 1000 nm
• Spectral Bandpass (Slit Width): 5 nm
• Wavelength Accuracy: ± 2 nm
• Wavelength Repeatability: ± 1 nm

The Unico S1200 Visible Spectrophotometer is designed as a compact benchtop unit suitable for conventional laboratory spaces.Here are the physical specifications: * Unit Dimensions (L x W x H): 16 inches x 12 inches x 8 inches (406 mm x 305 mm x 203 mm) * Unit Weight: 18 lb (8.2 kg)

Yes, the Unico S1200 is designed for high reliability and ease of use in conventional laboratory settings. Its features significantly simplify both operation and maintenance:

• Simplified Measurements: The instrument supports Absorbance, Transmittance, and Concentration modes, all featuring automatic zeroing and blanking activated by a single button press.
• Easy Maintenance: Routine upkeep is straightforward, as the tungsten halogen light source features a tool-free and alignment-free lamp replacement system.

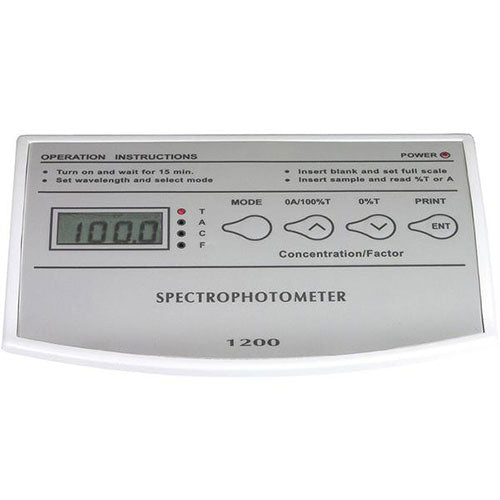

• Clear Interface: The unit includes a large digital display for straightforward operation and easy viewing of results.
• Flexible Data Output: For seamless data handling, the S1200 is equipped with both USB and RS-232C ports. Optional Windows-based application software (Unico SS-1.22) is available for integration with programs like Microsoft Excel.
• Sample Versatility: The spacious sample compartment is compatible with cuvettes up to 50 mm path length, accommodating various testing needs.

Yes, the Unico S1200 offers optional Windows-based application software to significantly enhance your data handling and integration capabilities.

• Software Name: The dedicated software is Unico SS-1.22.
• Data Integration: This application allows for the seamless collection of measurement results and their direct integration into Microsoft Excel for detailed analysis and reporting.
• Connectivity: For physical data transfer, the instrument is equipped with both an RS-232C port and a USB port.

Yes, the Unico S1200 Visible Spectrophotometer is equipped with a high-quality silicon photodiode detector and a 1200 lines/mm diffraction grating, ensuring accurate and reliable results.
