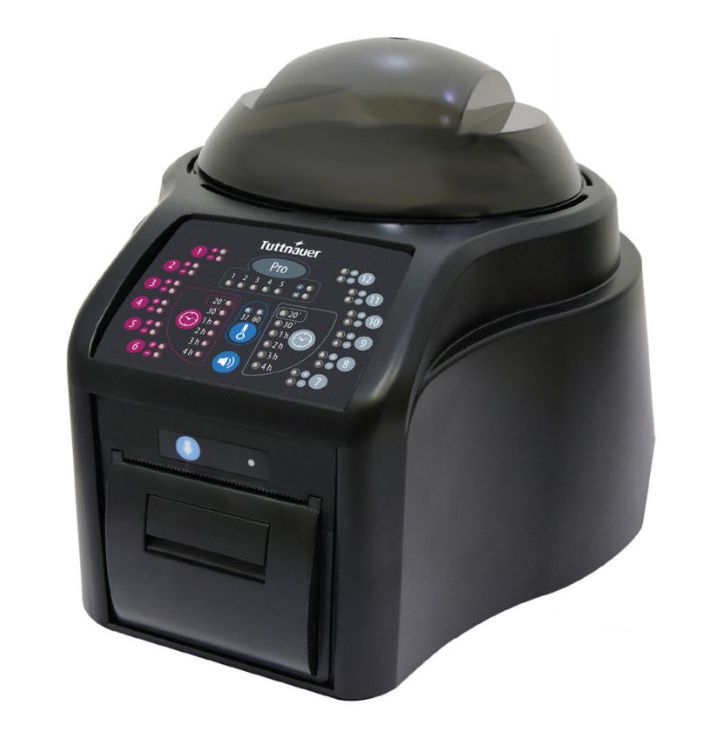

Tuttnauer Bionova Incubator

Tuttnauer Bionova Incubator
Key Features
  • SKU: TTN-WTL198-0079
  • Condition: Factory New
  • Warranty: 1 Year
  • Weight: 4.23 lb

  • Learn more:

Contact The Manufacturer
  • MFR: Tuttnauer Ships from Manufacturer
  • MPN: WTL198-0079
  • Phone: (800) 624-5836
$1,337.04

+ Free Shipping

Est. Delivery:
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

The Tuttnauer Bionova Incubator (#WTL198-0079) can test Biological Indicators for the presence of bacteria after a sterilization procedure.

Warranty: 1 Year.

The Tuttnauer Bionova Incubator is a large biological reader that can hold up to 12 biological indicator vials. It can implement two simultaneous programs in the chamber, with up to six indicators for each program. This reader device is compatible with Rapid, Super Rapid, and Ultra Rapid Biological Indicators. For Rapid Biological Indicators, analysis can complete in as little as one hour or up to four hours, depending on the model of the indicator. The Super Rapid Biological Indicators can complete in 30 minutes to one hour. The Ultra Rapid Biological Indicators are the fastest, at a complete analysis within 20 minutes.

With the advantage of two incubation programs running simultaneously, lab technicians can quickly determine if large loads of sterilized equipment have been completely sterilized and are safe to use. With 12 slots for biological indicators, users can test multiple loads of sterilized equipment to verify the effectiveness of the sterility. The device alerts technicians with a green or red light: green for a successful sterilization, and red for if microorganisms were detected after sterilization.

Features

Tuttnauer Bionova Incubator Features

  • Can incubate up to 12 biological indicators at once.
  • Includes printer for instant results for analysis.
  • Supports Rapid, Super Rapid, and Ultra Rapid Biological Indicators.
  • Colored lights indicate whether sterilization failed or was a success.

Specifications

Tuttnauer Bionova Incubator Specifications

  • Dimensions: 7" height x 10.2" diameter (18 cm x 26 cm).
  • Weight: 4.2 lb (1.9 kg).
  • Shelf Life: 5 Years.

Power Supply Specifications

  • Voltage Range: 100 - 240 V.
  • Frequency: 50/60 Hz.
  • Current: 0, 2 Amp.
  • Voltage: 12 DC Volts.
  • Current: 4 Amp.

Environmental Operating Conditions

  • Altitude: 3500 meters.
  • Operation Temperature: 50° - 86° F (10° - 30° C).
  • Relative Humidity: 30 - 80%.
  • Installation/Overvoltage: Category II.
  • Degree of Contamination: 2.
  • Storage Temperature: 50° - 86° F (10° - 30° C).
  • Voltage: 12 DC Volts.

Accessories

Tuttnauer Bionova Incubator Accessories

  • #WTL198-0147: Tuttnauer Thermometer.
  • #WTL198-0058: Tuttnauer Rapid Biological Indicator - 1 Hour (50/Box).
  • #WTL198-0072: Tuttnauer Ultra Rapid Biological Indicator - 20 Minutes (50/Box).
  • #WTL198-0075: Tuttnauer Process Challenge Device - 1 Hour (25/Box).
  • #WTL198-0077: Tuttnauer Process Challenge Device - 25 Minutes (25/Box).

Literature

Tuttnauer Bionova Incubator Literature

Tuttnauer Biological Indicators - What to Know

Frequently asked questions

How many indicators does the high-capacity incubator hold?

The Tuttnauer Bionova Incubator offers high capacity, capable of incubating up to 12 biological indicator vials concurrently. This capacity is efficiently managed by supporting two simultaneous incubation programs, with up to six indicators assigned to each program, which helps speed up batch verification and workflow.

Which biological indicator types are compatible?

The Tuttnauer Bionova Incubator is designed for high efficiency and is compatible with all Tuttnauer biological indicators, enabling rapid verification of sterilization processes. It supports:

  • Ultra Rapid Biological Indicators: Analysis completes within 20 minutes.
  • Super Rapid Biological Indicators: Analysis takes 30 minutes to 1 hour.
  • Rapid Biological Indicators: Analysis takes 1 hour up to 4 hours.
How quickly does the incubator provide analysis results?

The Tuttnauer Bionova Incubator can provide analysis results in as little as 20 minutes, with the exact time depending on the specific Rapid, Super Rapid, or Ultra Rapid Biological Indicator type used.

Does the incubator include a printer for documenting results?

Yes, the Tuttnauer Bionova Incubator features a built-in printer for instant result documentation.

How does the incubator indicate successful or failed sterilization?

The incubator uses colored indicator lights to show sterilization results:

  • Green: Successful sterilization
  • Red: Sterilization failure
What is the voltage range supported by the incubator?

The incubator’s power supply supports a voltage range of 100 - 240 V and a frequency of 50/60 Hz, making it suitable for various settings.

What are the operating temperature and humidity ranges for this incubator?

The environmental operating conditions for the incubator include:

  • Altitude: Up to 3500 meters
  • Temperature: 50° - 86° F (10° - 30° C)
  • Relative Humidity: 30 - 80%
Can the incubator run multiple programs?

The Tuttnauer Bionova Incubator can run two simultaneous programs, allowing for the testing of up to six biological indicators per program. This feature enhances efficiency by enabling the processing of multiple sterilized loads at once.

What is the primary function of this incubator?

The Tuttnauer Bionova Incubator is designed to test biological indicators for the presence of bacteria after a sterilization procedure. It helps verify the effectiveness of sterilization for equipment loads.
