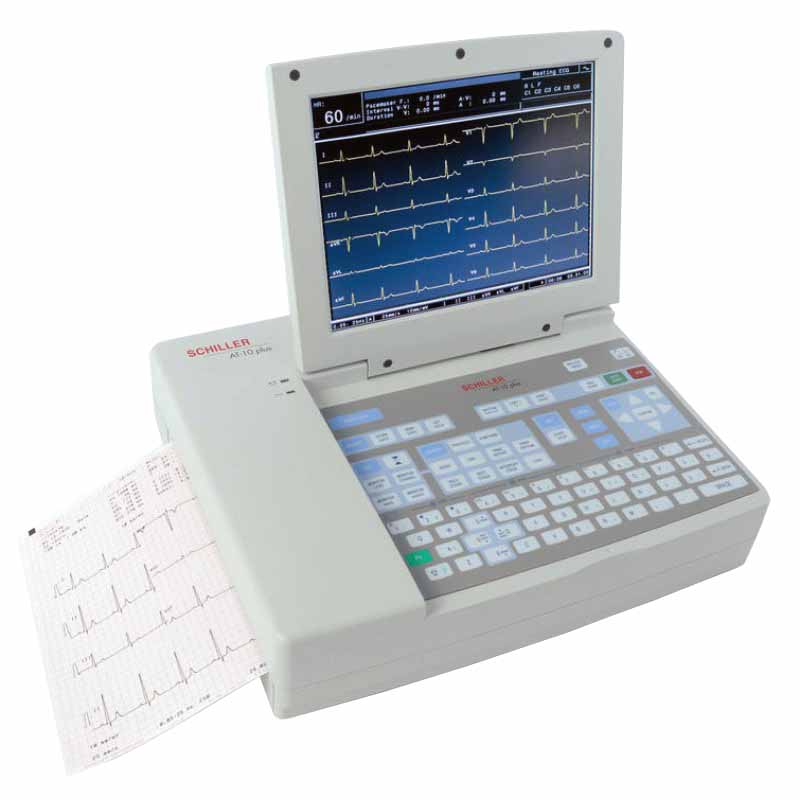

Schiller Cardiovit AT-10 Plus Stress System

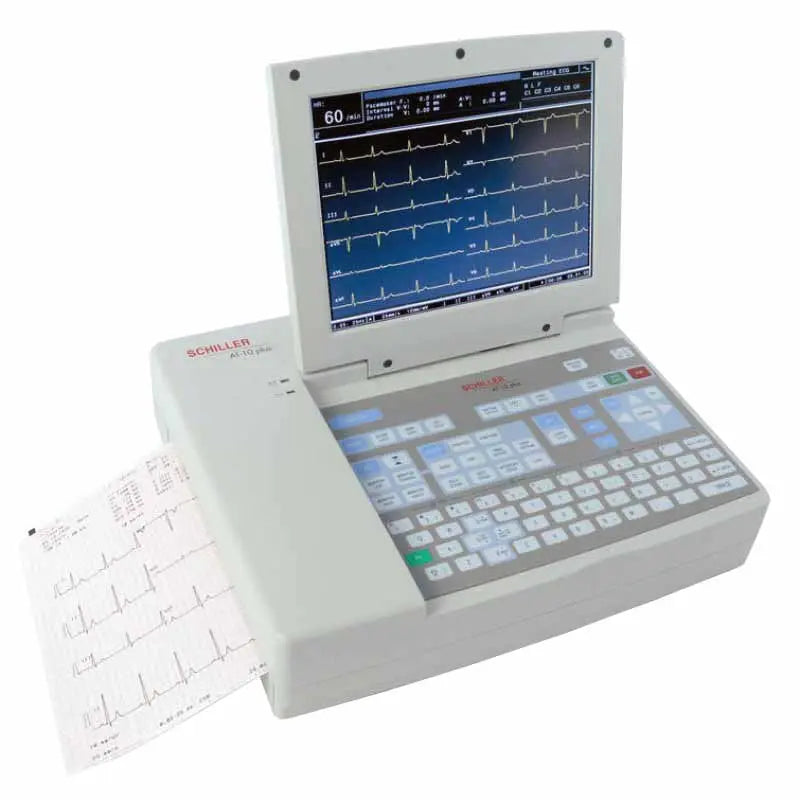

Schiller AT-10 Plus Stress System

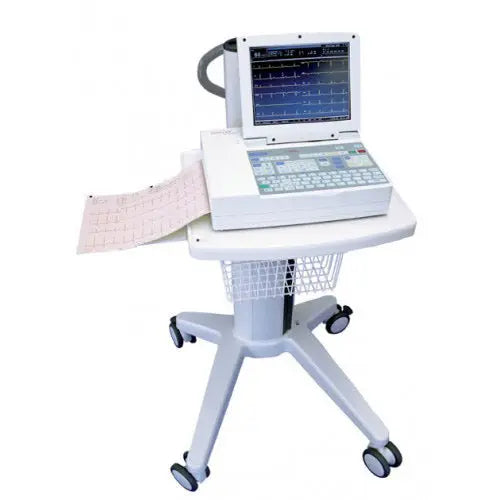

Schiller AT-10 Plus Stress System with Stand
Schiller AT-10 Plus Stress System
Schiller AT-10 Plus Stress System with Stand
Key Features
  • SKU: SCH-9-173000E1
  • Condition: Factory New
  • Warranty: 3 Years
  • Weight: 9.3 lb
  • Combines resting ECG, exercise ECG, pacemaker measurement, HRV analysis, signal averaged ECG analysis, thrombolysis software, and spirometry in a single system
  • Simplified Workflows: The device can be connected to the Schiller Data Management Information System SEMA-200 or the HIS
  • Direct Function keys and on-screen menus allow for quick, simple, and reliable operation
  • Internal memory for up to 350 ECG recordings

  • Learn more:

Contact The Manufacturer
  • MFR: Schiller Ships from Manufacturer
  • MPN: 9.173000E1
  • Phone: (786) 845-0620
$8,395.00 $8,166.00

+ Free Shipping

Est. Delivery:

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

The Schiller Cardiovit AT-10 Plus Stress System (#9.173000E1) includes:

  • 10-Lead Patient Cable.
  • 10 Snap Clip Electrode Adapters.
  • 500 Disposable Electrodes.
  • Pack of Paper.
  • Power Cable.
  • Operating Manual.
  • Interpretation Guide.

Warranty: 3 Years - Free from Defects in Material and Workmanship.

The Cardiovit AT-10 Plus Stress System combines resting ECG, exercise ECG, pacemaker measurement, HRV analysis, signal averaged ECG analysis, thrombolysis software, and spirometry in a single system.

This convenient system provides a simplified workflow for clinicians. It can be connected to the Schiller Data Management Information System SEMA-200 or the HIS.

Features

Schiller Cardiovit AT-10 Plus Stress System Features

  • Built-in ECG Waveform LCD display.
  • Built-in 8.5" x 11" printer.
  • Built-in LAN, RS-232, and VGA Output ports.
  • Full-featured, high-performance 12-lead resting ECG machine with interpretation and an extensive list of options to fit the needs of demanding medical and research organizations.
  • Direct Function keys and on-screen menus allow for quick, simple, and reliable operation.
  • Pre-programmed settings are activated at the touch of a button.
  • Define preferred settings for monitor and paper outputs once and store them at the press of a key. This speeds up both learning and operation.
  • Simplified Workflows: The device can be connected to the Schiller Data Management Information System SEMA-200 or the HIS.
  • Record signals of all 12 ECG channels over the past five minutes. This reduces the risk that important rhythm data might be overlooked. To save paper, you can transmit the full disclosure view of a five minute recording to the Schiller SEMA-200 data management system on your PC for editing or printout.
  • Internal memory for up to 350 ECG recordings.
  • Complete integration with the SEMA-200 cardiology data management system.
  • Easy to read, high resolution 10.4" TFT color screen offers a clear presentation of all 12 ECG traces from every work angle.
  • The seamless connection to the Schiller Information System SEMA or HIS rationalizes your work process and allows you to immediately review and evaluate your patient's ECG data.
  • The optional WLAN function enables bi-directional communication with the SEMA Cardiology Information System via the optional Schiller Communication Module. You can quickly and easily view, edit, and archive patient data, reducing the risk of data entry errors.

Specifications

Schiller Cardiovit AT-10 Plus Stress System Specifications

  • Dimensions: 13.7" x 11.3" x 3.4" (348 mm x 288 mm x 87 mm).
  • Weight: 9.3 lb (4.2 kg).
  • Power Supply:
    • Mains Voltage: 220 to 240 V (nominal), 50 / 60 Hz; 100 to 115 V (nominal), 50 / 60 Hz.
    • Power Consumption: 14 to 28 VA (Max).
    • Battery: Operation with built-in rechargeable battery.
  • Battery: Nickel Cadmium 9.6 V.
    • Capacity: 2 hours normal use, 3 hours standby.
    • Battery Life: Under normal operating conditions, 4 years.
    • Recharging Time: 90%: approx. 7 hours, 100%: approx. 15 hours.
  • Printer: High-resolution thermal printing, 8 dots/mm (amplitude axis), 40 dots/mm (time axis), @ 25 mm/s.
  • Memory: Storage for up to 40 ECG recordings. Further memory available with the extended memory option.
  • Environmental Conditions:
    • Operating Temperature: 10 to 40 °C.
    • Storage Temperature: -10 to 50 °C.
    • Relative Humidity: 25 - 95%, non-condensing.
    • Pressure During Operation: 700 to 1060 hPa.
  • ECG Leads: 12 simultaneous leads, Standard, Cabrera.

Literature

Schiller Cardiovit AT-10 Plus Stress System Literature

Schiller AT-10 Plus User Manual

Schiller Cardiovit AT-10 Plus Brochure

Frequently asked questions

What cardiac function tests does the Schiller Cardiovit AT-10 Plus Stress System integrate?

The Schiller Cardiovit AT-10 Plus Stress System integrates multiple essential cardiac function tests, including resting ECG, exercise ECG, pacemaker measurement, HRV analysis, signal averaged ECG analysis, thrombolysis software, and spirometry in one device.

How does this system simplify workflow for clinicians?

The system simplifies workflow through direct function keys, on-screen menus, and connectivity to SEMA-200 and HIS systems, streamlining operation and data management.

What are the dimensions and weight of the Schiller Cardiovit AT-10 Plus Stress System?

The dimensions of the system are 13.7” x 11.3” x 3.4” (348 mm x 288 mm x 87 mm), and it weighs 9.3 lb (4.2 kg).

What type of printer is built into the Schiller Cardiovit AT-10 Plus Stress System?

The system has a built-in high-resolution thermal printer with specifications of 8 dots/mm (amplitude axis) and 40 dots/mm (time axis) @ 25 mm/s.

What is the battery life of the system?

The Schiller Cardiovit AT-10 Plus Stress System features a Nickel Cadmium 9.6 V battery that provides:

  • 2 hours of use under normal operating conditions
  • 3 hours in standby mode

The overall battery life under normal operating conditions is approximately 4 years.

What is included with the Schiller Cardiovit AT-10 Plus Stress System?

The system includes:

  • 10-Lead Patient Cable
  • 10 Snap Clip Electrode Adapters
  • 500 Disposable Electrodes
  • Pack of Paper
  • Power Cable
  • Operating Manual
  • Interpretation Guide
Does the Schiller Cardiovit AT-10 Plus Stress System have wireless capabilities?

Yes, the system has an optional WLAN function that enables bi-directional communication with the SEMA Cardiology Information System.

What is the warranty for the Schiller Cardiovit AT-10 Plus Stress System?

The system comes with a 3-year warranty that covers defects in material and workmanship.

What is the internal ECG recording capacity?

The standard internal memory of the Schiller Cardiovit AT-10 Plus stores up to 40 ECG recordings.

Additional storage capacity beyond the standard 40 recordings is available with an extended memory option.

What type of display does the Schiller Cardiovit AT-10 Plus Stress System have?

The system features a high-resolution 10.4” TFT color screen for a clear presentation of all 12 ECG traces.
