Schiller Cardiovit AT-10 Plus ECG Machine

Name: Schiller Cardiovit AT-10 Plus ECG Machine
Brand: Schiller
SKU: SCH-9-173000C
Price: 5630.02 USD
Availability: InStock

Schiller Cardiovit AT-10 Plus ECG Machine With Wireless LAN/VGA Output

Schiller Cardiovit AT-10 Plus ECG Mac...

Liquid error (snippets/ced-product-media line 158): external_video_tag does not support String

Key Features

SKU: SCH-9-173000C
Condition:

Condition: Factory New

Condition: Factory New
Warranty:

Warranty: 3 Years

Warranty: 3 Years
Weight: 24.0 lb
ECG measurement software with accurate measurements of recorded cardiac signals
Pacemaker detection
Interpretation
Can be used for all patients of both sexes, all races, and all ages
Learn more:

Contact The Manufacturer

MFR: Schiller

Ships from Manufacturer

Ships from MFI Medical

Items shipped from the manufacturer

This item will be shipped directly from the manufacturer to your doorstep, ensuring that you receive the newest product available. The estimated delivery range provided is based on the manufacturer's inventory levels and is subject to change depending on the quantity ordered. We ship items as soon as they become available, so if you order multiple quantities, you may receive them in separate shipments.

Special order item

A special order item will need to ship to our warehouse from the manufacturer before then shipping to you. The estimated delivery range that you see is based on the information that we receive from the manufacturer, which is also contingent upon your ordered quantity and the current inventory levels of the manufacturer. We will ship the items to you as soon as they become available, which may result in multiple shipments if you order more than one quantity.
MPN: 9.173000C

MPN: 9.173000WLAN
Phone: (786) 845-0620

$5,630.02

Select a Configuration

Variant

Est. Delivery:

Quantity

Earn [points_amount] when you buy this item.

Shop with Confidence

Description

The Schiller Cardiovit AT-10 Plus ECG Machine includes (10x) Lead Patient Cables, (10x) Snap Clip Electrode Adapters, (500x) Disposable Electrodes, a pack of paper, power cable, operating manual, and interpretation guide.

Warranty: 3 Years Limited - Free from Defects in Material and Workmanship.

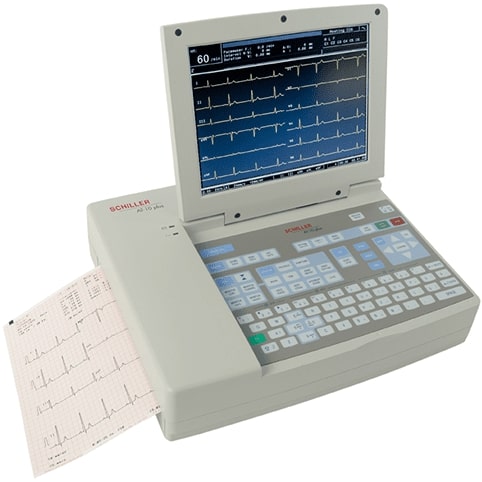

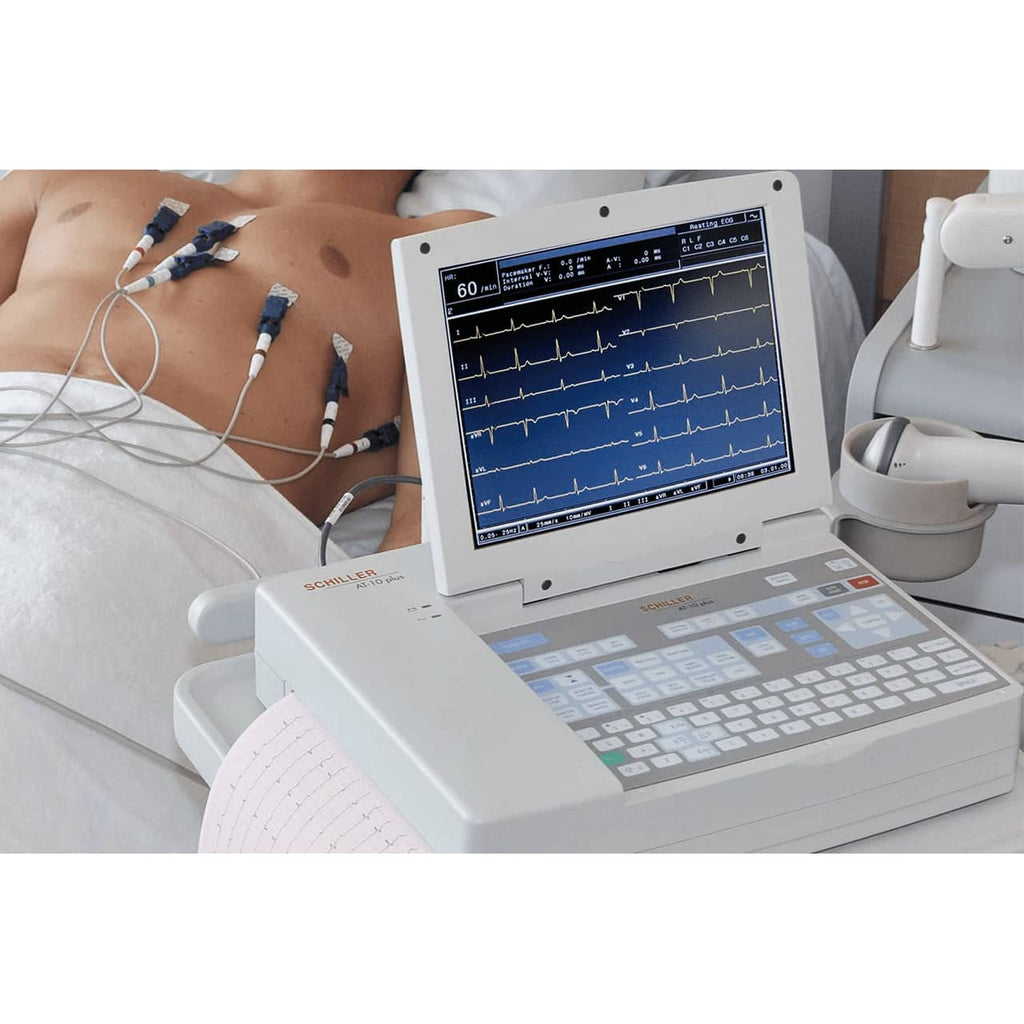

The Cardiovit AT-10 Plus combines the basics of electrocardiography with the benefits of the IT world. It not only provides all the functions of a high-quality 12-channel electrocardiograph but also meets the requirements of an integrated diagnostic workstation. It is used for the recording, analysis, and evaluation of ECG recordings. These recordings can be used as a diagnostic aid for heart function and heart conditions. It is designed for indoor use and can be used for all patients of both sexes, all races, and all ages. As a complete workstation, the AT-10 Plus can be upgraded to stress test and spirometry.

Its brilliant communication concept makes the AT-10 plus an extremely flexible tool:

Resting ECG station in clinics and practices.
Ergometry measuring station.
ECG terminal for mobile ECG recording.
Integrated recording station in a cardiological practice.
Cardiopulmonary diagnostic station for industrial medicine.
Research EKG with Bazett & Fridericia formulas.
Educational tool.

Features

Schiller Cardiovit AT-10 Plus ECG Machine Features

Interpretation.
High-resolution 10.4" TFT color screen.
Wired LAN, RS-232, and VGA output ports (VGA connector for external monitor).
Built-in 8.5" x 11" thermal printer with A4 printing paper.
12-/16 Lead for resting EKG recording also with posterior leads (V7 - V9), right precordial leads (V3r - V6r), and standard leads with V4r.
Resting rhythm recording (12-lead full-disclosure ECG recording).
EKG print preview.
Pacemaker detection.
Rechargeable battery for mobile use.
ECG measurement software with accurate measurements of recorded cardiac signals.
Data transfer to PC for storage of resting ECG, resting rhythm, exercise ECG, and spirometry recordings via Ethernet.
Memory for up to 350 resting ECGs.
Bi-directional network communication provides remote access to the patient demographics (PDQ), improving workflow and allowing patient data to be viewed, edited, and archived quickly and easily, reducing the risk of data entry errors.
DICOM and HL7 ECG waveform export of resting ECGs.
FAA export (Federal Aviation Administration).
PDF export.
Support other formulas, mainly used for research like Bazzet, Fridericia, Framingham, and Hodges.

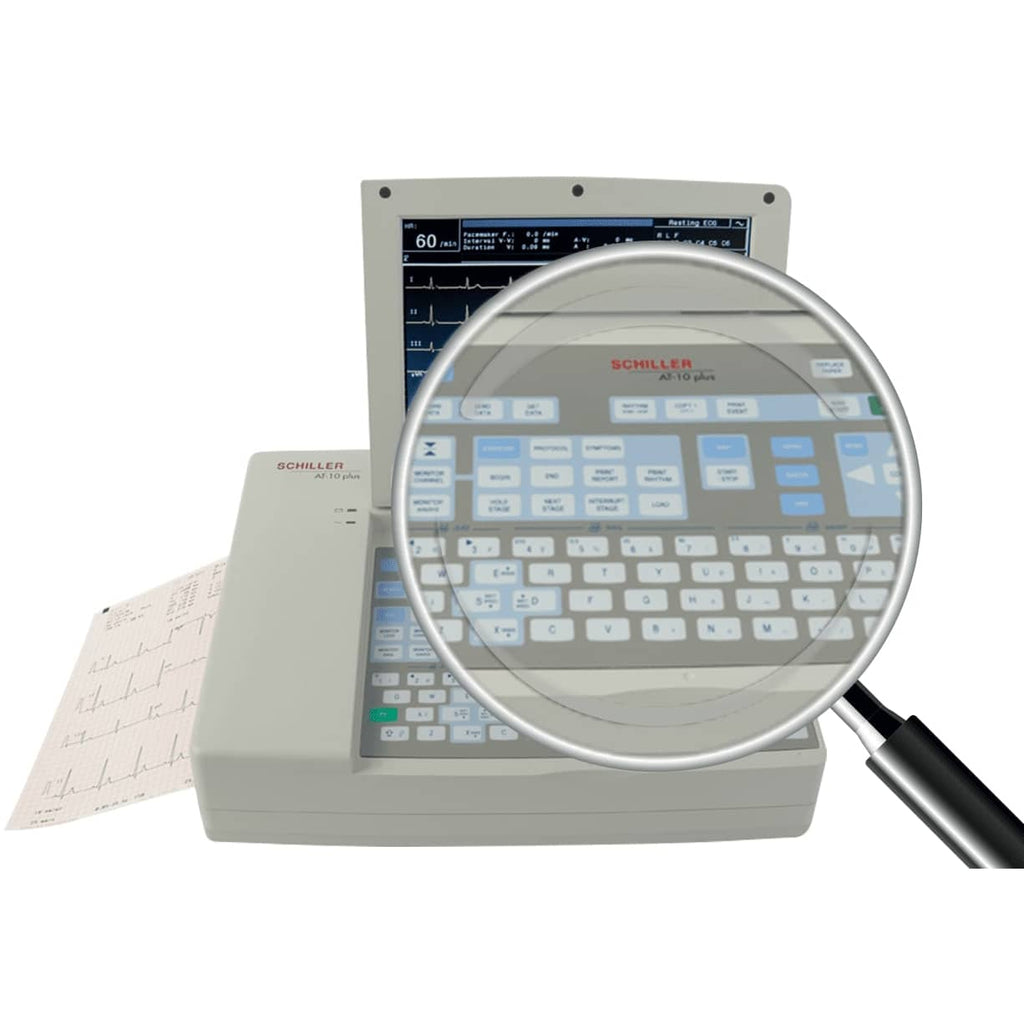

Water resistant keyboard with direct function keys that allows quick, simple, and reliable operation.
Sealed keypad helps prevent and address any cross contamination, allowing the use of existing cleaning agents in the healthcare environment.

Upgradeable:

The AT-10 Plus also meets the requirements of integrated Stress testing with standard test protocols and user-defined protocols. It allows the doctor to select the type of equipment where the patient will perform the exercise. The doctor can choose between a treadmill or bicycle.

The unit is programmed with the most widely used test protocols such as Bruce, Balke, Naughton, Ellestad, and Cooper. The protocols allows you to store or modify programs exactly how you want.

Pacemaker Measurement: Measures the pacing frequency, performs individual measurement of pulse width for atrial and ventricular stimulation, and determines the AV intervals.
Heart Rate Variability (HRV): Allows you to determine the risks (e.g. of sudden cardiac death) for a cardiopathic patient after a recording time of only 1 to 60 minutes. In addition to the graphic display of RR tachograms and histograms, numerous statistical parameters are calculated (e.g. standard deviation, mean deviation, mean value, and BB50 value).
Signal Averaged ECG Analysis (SAECG): Allows detection of micro potentials after a QRS complex.

Configurations

Schiller Cardiovit AT-10 Plus ECG Machine Configurations

#9.173000C: Standard (Wired LAN, RS-232, and VGA only).
#9.173000WLAN: With Wireless LAN/VGA Output. Does not include a modem.

Accessories

Schiller Cardiovit AT-10 Plus ECG Machine Accessories

The following accessories are compatible and commonly purchased with the Cardiovit AT-10 Plus ECG Machine:

#2.000147A: Laser Bar Code Scanner.

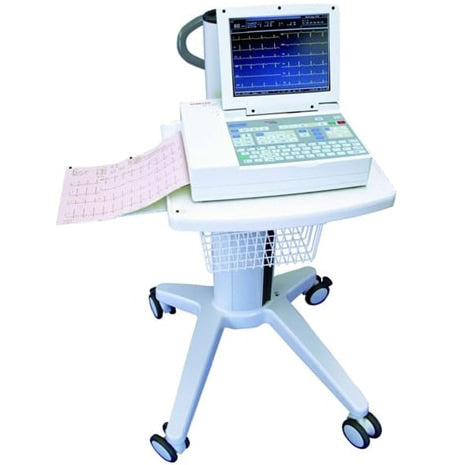

#2.101125: Trolley X1 - For AT-102, AT-102 G2, AT-10 plus, AT-2, and AT-2 plus.
AT-10 Plus Recording Paper:
- #2.157023: Single Pack.
- #2.157023C: Case of 10 Packs.
#2.400071S: ECG Patient Resting Cable with Banana Plug.
#2.400116S: 10-Lead Patient Cable - Snap Clip.
#2.400127: 10-Lead Patient Cable - Banana Plug.
#5.173002: EXEC Stress Software Upgrade.
#5.173005: Pacemaker Measurement Software Upgrade.
#5.173006: Worklist Functionality Upgrade - For bi-directional communications between the AT-10 Plus and your SEMA, EMR, or HIS system via XML.
#5.173007: Signal-Averaged ECG (SAECG) Software.
#5.173008: HR Variability (HRV) Software.

Literature

Schiller Cardiovit AT-10 Plus ECG Machine Literature

Schiller AT-10 Plus User Manual

Schiller Cardiovit AT-10 Plus Brochure
