Rhythmlink Disposable InvisaDeep EEG Cup Electrode (12/Box)

Rhythmlink Disposable InvisaDeep EEG Cup Electrode (12/Box)
Rhythmlink Disposable InvisaDeep EEG Cup Electrode - Cup Comparison
Rhythmlink Disposable InvisaDeep EEG Cup Electrode (12/Box)
Rhythmlink Disposable InvisaDeep EEG Cup Electrode - Cup Comparison
Key Features
  • SKU: RHL-CTDC115
  • Condition: Factory New
  • Warranty: Until Use/Expiration
  • Weight: 0.18 lb

  • Learn more:

  • Purchasing Restriction: Medical license or prescription required
Contact The Manufacturer
  • MFR: Rhythmlink Ships from Manufacturer
  • MPN: CTDC115
  • Phone: (866) 633-3754
$47.11

+Free Shipping*

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

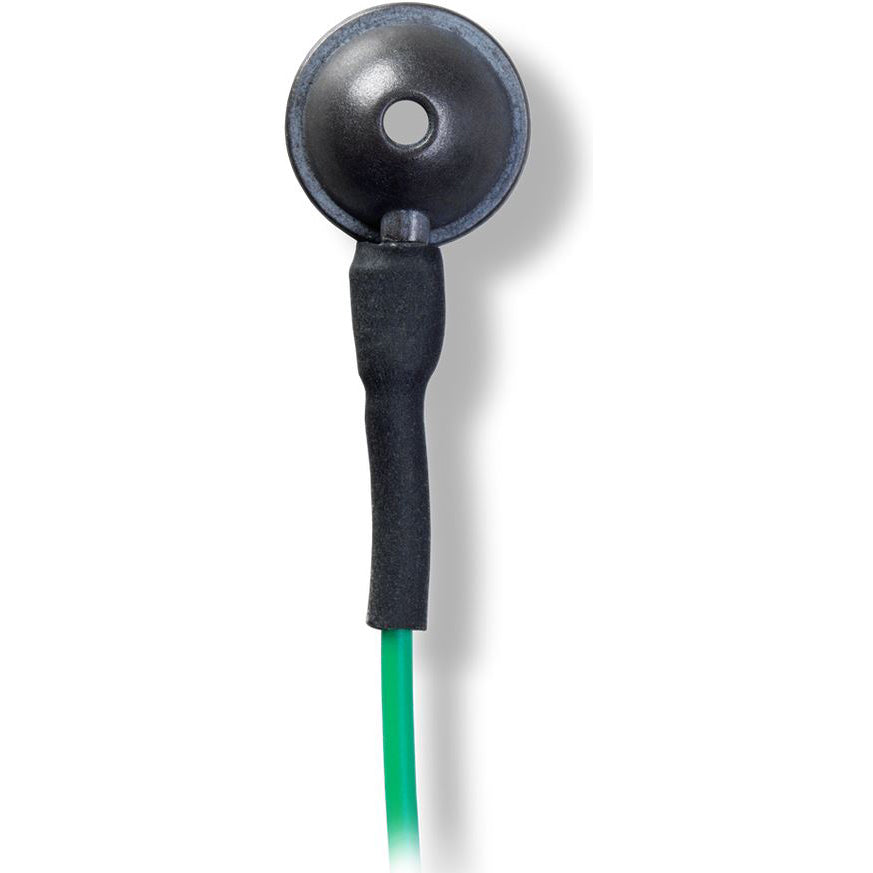

The Rhythmlink Disposable InvisaDeep EEG Cup Electrode (#CTDC115 / 12 per Box) is an artifact free CT imaging electrode that enables a continuous collection of EEG data before and after a patient has a CT scan. The InvisaDeep offers all the same great benefits as the InvisaSlim EEG Cup Electrode, and also features a cup that holds 3.5 times more conductive material.

Warranty: Until Use or Expiration.

The artifact free CT imaging electrodes offer the same superior EEG recording quality as Rhythmlink standard electrodes, but can be left on the patient during a CT scan.

Features

Rhythmlink Disposable InvisaDeep EEG Cup Electrode Features

  • A molded safety connector with ample built-in strain relief.
  • Pre-attached leadwire.
  • Can be used with any gel, paste, collodion, or other similar adhesive.
  • High quality recordings.

Specifications

Rhythmlink Disposable InvisaDeep EEG Cup Electrode Specifications

  • Cup Size: 10 mm.
  • 3.4 mm recessed cup.
  • Lead Length: 1.5 m.
  • Weight (of Box): 0.181 lbs.
  • Lead Wire Colors: Black, white, red, blue, yellow, green, orange, gray, brown, pink, light blue, and purple.
  • Materials:
    • Cup: ABS plastic coated with Ag/AgCl.
    • Leadwire: Copper with PVC jacket.
    • Conductive Adhesive: Silver filled epoxy.
    • Connector: DIN 42 802.
    • Sterilized: No.
  • Environment:
    • Latex-free electrode.
    • PVC-free packaging.
  • Packaging:
    • Pouch: Polyethylene.
    • Pouch Size: 120 mm x 182 mm.

Media and Literature

Frequently asked questions

Is CT compatibility excellent?

Yes, these electrodes are specifically designed for continuous EEG monitoring during CT scans, providing artifact-free imaging capabilities. This allows for data collection before, during, and after the scan.

Does it hold more conductive material?

Yes, the InvisaDeep cup is designed to hold 3.5 times more conductive material than the InvisaSlim model. This increased capacity helps in enhancing recording quality.

Will the recordings be high quality?

Yes, these electrodes are designed to provide the same superior EEG recording quality as Rhythmlink’s standard electrodes, ensuring reliable data collection.

What size is the cup?

The electrodes feature a cup size of 10 mm with a 3.4 mm recessed cup depth.

What is the lead wire length?

Each electrode comes with a pre-attached lead wire that is 1.5 meters in length.

What materials are used?

The cup is constructed from ABS plastic coated with Ag/AgCl. The leadwire is made of copper with a PVC jacket.

Is it compatible with different adhesives?

Yes, these electrodes are suitable for use with various conductive materials such as gels, pastes, collodion, or similar adhesives.

Does it feature a standardized safety connector?

Yes, these electrodes utilize the industry-standard DIN 42 802 connector. This connector is a molded safety connector that features built-in strain relief to enhance durability and reliability during continuous use.

Are these electrodes sterilized?

No, these disposable electrodes are not sterilized.

Is the product latex-free?

Yes, the electrodes are latex-free. Additionally, the packaging is PVC-free, utilizing a polyethylene pouch.
