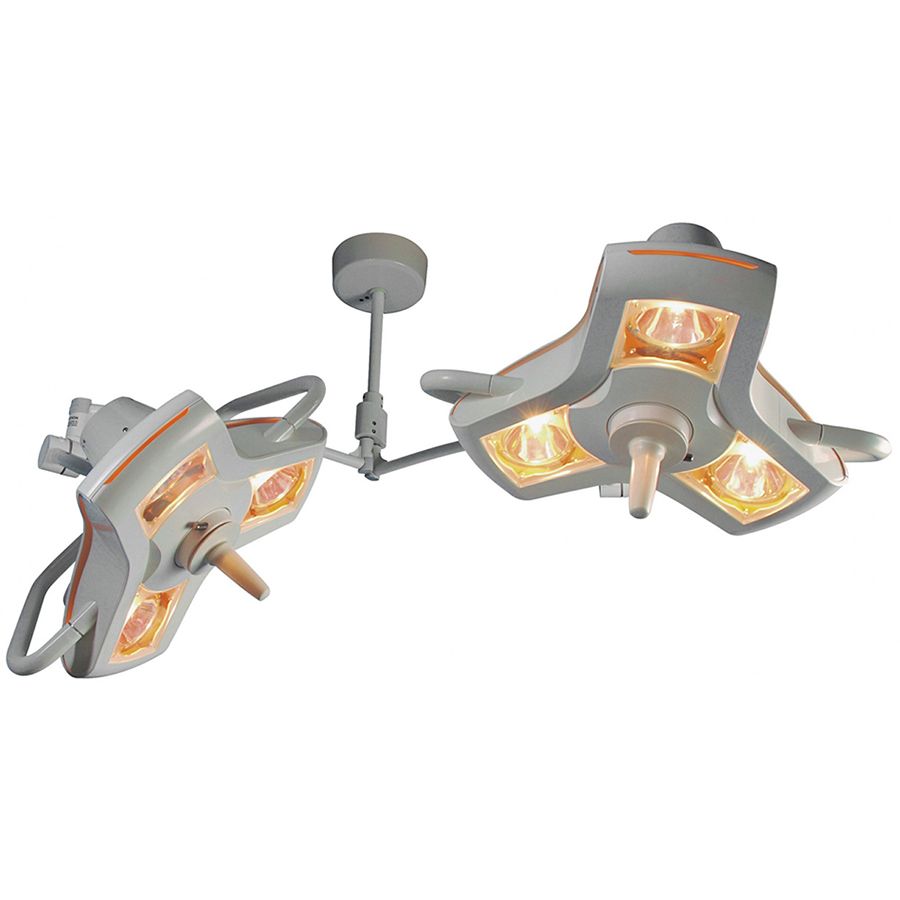

Burton AIM-50 Examination Light - Double Ceiling Mount

Burton AIM-50 Examination Light - Double Ceiling Mount
Burton AIM-50 Examination Light - Double Ceiling Mount
Burton AIM-50 Examination Light - Double Ceiling Mount
Burton AIM-50 Examination Light - Double Ceiling Mount
Key Features
  • SKU: PHL-A50DC

  • Learn more:

Contact The Manufacturer
  • MFR: Burton
    Ships from Manufacturer
  • MPN: A50DC
  • Phone: (800) 444-9909
$8,188.00 $6,609.94

+Free Shipping*

Item Discontinued

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Burton AIM-50 Examination Light - Double Ceiling Mount combines two AIM-50 lamps onto easily maneuverable extension arms. With wide light coverage and CRI of 96, this lamp is ideal for examinations and diagnostics.

Warranty: 5 Years Parts and Labor.

The Burton AIM-50 Examination Light - Double Ceiling Mount boasts 2 lamp heads, each with a diameter of 20" and 3 quartz Halogen bulbs for maximum light coverage. Each lamp is also mounted on extension arms to further extend the range and positioning of the light. The lamps can also be positioned with one hand, using the center sterilizable handle.

This double-lamp ceiling mount is ideal for areas where bright, clear light is needed for examinations, diagnostics, or minor treatments. The ceiling mount and Y-shaped allow for plenty of headroom with no risk of obstructing the light or interfering with other equipment.

The Burton AIM-50 Examination Light - Double Ceiling Mount ships in 5 packages:

  • Head: 17 lbs / 25" x 25" x 8".
  • Head: 17 lbs / 25" x 25"x 8".
  • Ceiling Mount: 42 lbs / 34" x 14" x 8".
  • Extension Arm: 14 lbs / 37" x 21" x 6".
  • Extension Arm: 14 lbs / 37" x 21" x 6".

Features

Burton AIM-50 Examination Light - Double Ceiling Mount Features

  • AIM-50 light also available in floorstand, wall, and single ceiling mount configurations.
  • 120 V standard, with 100, 230, and 240 V options available.
  • Twice the amount of focused light with 6 (50 W) Halogen bulbs total.
  • 2,000 hours of light right out of the box.
  • Stays cool to the touch, even after prolonged use.

Specifications

Burton AIM-50 Examination Light - Double Ceiling Mount Specifications

  • Weight: 61 lbs (28 kg).
  • Light Source: Halogen bulb - 50 W / 12 V / bi-pin.
  • Illuminance: 45,000 lux (4,181 footcandles).
  • Light Color Temperature: 3,100 Kelvin.
  • Color Rendering Index: 96.
  • Number of Bulbs: 6.
  • Bulb Life: 2,000 hours.
  • Power: 184 watts.
  • Lamphead Diameter: 20".
  • Light Field Diameter: 9.6" - 12" (25 cm - 31 cm).
  • Depth of Illumination: 47" (119 cm).
  • Certifications / Approvals: IEC/UL 60601-1 / IEC 60601-2-41 / IEC/EN 60601-1-2; CAN/CSA C22.2 601-1 M90 certified; CE marked.

Configurations

Burton AIM-50 Examination Light - Double Ceiling Mount Configurations

  • #A50DC: 120 V - For use in the U.S.
  • #A53DC: 230 V - For use in Europe.
  • #A52DC: 240 V - For use in Europe.
  • #A54DC25: 230 V - SP Model. Refers to Spanish Language Manuals.
  • #A51DC: 100 V - For use in Japan.

Accessories

Burton AIM-50 Examination Light - Double Ceiling Mount Accessories

The Burton AIM-50 Examination Light - Double Ceiling Mount is commonly purchased with:

  • Set of 3 AIM-50 replacement bulbs.
  • 42" drop tube.
  • Sterilizable / Autoclavable handle.
  • Sterile Handle Covers (25 per box).

Frequently asked questions

What is the maximum illumination output?

The Burton AIM-50 Examination Light (Double Ceiling Mount) delivers an exceptional maximum illuminance of 45,000 lux (4,181 footcandles), ensuring high-intensity light suitable for detailed diagnostics and minor procedures.

This superior light output is enhanced by several key specifications:

  • Exceptional Color Accuracy: A high Color Rendering Index (CRI) of 96 provides accurate visualization of tissue colors.
  • Impressive Depth: The light maintains intensity with a depth of illumination reaching 47 inches (119 cm).
  • Halogen System: The unit utilizes a total of six 50W Halogen bulbs (three per lamp head), offering a long bulb life of 2,000 hours.
  • Color Temperature: The light operates at a warm 3,100 Kelvin.
Does it offer high color accuracy?

The Burton AIM-50 Examination Light boasts a high Color Rendering Index (CRI) of 96, ensuring exceptionally accurate color rendering for precise examinations and diagnostics.

How many bulbs power each lamp head?

Each lamp head on the Burton AIM-50 Examination Light is powered by three Halogen bulbs, resulting in a total of six bulbs for the entire double-ceiling mounted system. This dual-head configuration delivers powerful, high-intensity light (45,000 lux) ideal for detailed examinations.

Key specifications for the Halogen bulbs:

  • Type: 50 W / 12 V Halogen (bi-pin)
  • System Output: 45,000 lux (4,181 footcandles)
  • Life Expectancy: Each bulb is rated for an operational life of 2,000 hours, offering long-term reliability.
Does this light use high-quality Halogen bulbs?

Yes, the Burton AIM-50 Examination Light utilizes six high-performance Halogen bulbs (50W/12V bi-pin) to ensure superior light quality and color accuracy for detailed examinations.

Key features of the lighting system include:

  • High Quantity: The Double Ceiling Mount system features a total of six bulbs (three in each lamp head).
  • Long Lifespan: Each Halogen bulb is rated for an extended operational life of 2,000 hours.
  • Clinical Accuracy: The bulbs contribute to an outstanding Color Rendering Index (CRI) of 96 and a color temperature of 3,100 Kelvin, vital for accurate diagnostic visualization.
  • Intense Output: The system delivers powerful illumination up to 45,000 lux.
  • Thermal Management: The lamp head is engineered to remain cool to the touch even after prolonged use.
How long do the bulbs last?

Each halogen bulb in the Burton AIM-50 Examination Light boasts a 2,000-hour lifespan, ensuring long-lasting and reliable illumination for your examinations.

What are the available voltage options?

The Burton AIM-50 Examination Light is designed to accommodate various international electrical requirements and is available in multiple operational voltage configurations:

  • 120 V (Standard)
  • 100 V
  • 230 V (Also available with a Spanish language manual option)
  • 240 V
What is the adjustable light field diameter?

The Burton AIM-50 Examination Light provides a versatile light field with a diameter ranging from 9.6 inches to 12 inches (25 cm - 31 cm), allowing for precise and wide illumination during examinations.

What certifications does the Burton AIM-50 Examination Light have?

The Burton AIM-50 Examination Light is certified with IEC/UL 60601-1 / IEC 60601-2-41 / IEC/EN 60601-1-2; CAN/CSA C22.2 601-1 M90 certified; CE marked.

Does the light allow for one-handed positioning?

Yes, the Burton AIM-50 Examination Light is engineered for ergonomic, one-handed positioning to maximize efficiency during procedures. The system facilitates easy manipulation:

  • The highly maneuverable extension arms allow for wide adjustments.
  • Fine-tuning the focus and direction is managed via the center sterilizable handle located on each lamp head.
Is the illumination high-intensity and color accurate?

Yes, the Burton AIM-50 Double Ceiling Mount is designed to provide superior, high-fidelity illumination crucial for detailed examinations and accurate diagnostics. The dual lamp head system maximizes light quality and coverage.

Here are the key performance specifications:

  • Exceptional Brightness: The system delivers 45,000 lux of focused light (4,181 footcandles).
  • Superior Color Accuracy (CRI 96): With an exceptional Color Rendering Index (CRI) of 96, the light ensures tissue colors are visualized accurately, which is vital for clinical diagnosis. The color temperature is 3,100 Kelvin.
  • Impressive Depth: The illumination depth reaches 47 inches (119 cm), providing focused light across a wide working area.
  • Cool Operation: The unit uses six 50W Halogen bulbs (three per head) but is engineered to stay cool to the touch even after prolonged use.
