- Weight: 195.0 lb
- Full motion digital video with post record zoom/pan/tilt synchronized to 100 ms with EEG
- Rapid review software with auto-editing of system events and trace annotation
- USB connected amplifiers eliminate the need for proprietary hardware within your computer, protecting you from product obsolescence and excessive future capital outlay
- Standard sophisticated software capabilities, including online mapping, eight channels of CSA, and EKG artifact filter
-
Learn more:
-
MFR:
Nihon Kohden
Ships from MFI Medical
- Phone: (800) 325-0283
+Shipping
Shop with Confidence
Sales Tax Exemption
+Dedicated Account Managers
Frequently asked questions
Does the system include a safety isolation box?
Yes, the system includes the #SM-930AA Isolation Box, which is a crucial component designed to ensure safety and proper electrical isolation during EEG/PSG examinations.
Does the optional configuration include synchronized digital video?
Yes, the optional “With Video” configuration of the Nihon Kohden Neurofax EEG-1200 EEG/PSG System includes full-motion digital video that is synchronized with the EEG.
Key Video Features:
- Precise Synchronization: The digital video is synchronized with the EEG to within 100 ms, which is essential for accurate event correlation.
- Post-Record Review: You can use zoom, pan, and tilt functions during post-recording review to analyze details more closely.
To enable these LTM Video/Audio features, specific optional components are required, including a Sony Ipela Camera on an adjustable pole, an audio base station, a DV Belkin adaptor, a hub/switch, interconnecting cables, and the necessary license/USB dongle.
What are the core computer specifications?
The Neurofax EEG-1200 is built around a dedicated Dell desktop unit running modern software to ensure reliable clinical performance and advanced data analysis.
Key computer specifications are:
- Processor: Intel i5
- RAM: 8 GB
- Storage: 500 GB Hard Drive
- Operating System: Windows 11
The system also includes a 23” LCD monitor, keyboard, and mouse, all mounted on a mobile cart for ease of use.
Is the software suite comprehensive?
Yes, the Nihon Kohden Neurofax EEG-1200 includes a powerful and comprehensive software suite that runs on the included Windows 11 desktop computer, designed for advanced diagnostic and analytical capabilities.
Core Software Modules:
The system integrates multiple specialized applications, ensuring efficient data recording and review:
- Nihon Kohden EEG Software (v5.03)
- NWB Neuro Workbench (v07.02): Provides a modern GUI for recording and analysis.
- NRS Neuro Report (v04.11)
- Trend Software (v02.22)
Advanced Analytical Features:
The software supports several high-level clinical functions, including:
- Adult Seizure Detection and Review
- Online Mapping and Voltage Mapping
- Eight channels of Compressed Spectral Array (CSA)
- EKG Artifact Filtering to ensure clean waveform recording.
- Rapid Review Software with automated editing for system events and trace annotation.
- EEG Central Monitoring capabilities.
Do USB amplifiers ensure system longevity?
The Nihon Kohden Neurofax EEG-1200’s USB-connected amplifiers are a key feature designed to prevent product obsolescence. By eliminating the need for proprietary hardware, they offer enhanced flexibility and expandability, ensuring the system remains high-performing and adaptable for future needs.
Is the Neurofax EEG-1200 suitable for PSG?
Yes, the certified refurbished Neurofax EEG-1200 is designed for comprehensive signal acquisition, supporting both routine clinical EEG and detailed Polysomnography (PSG) studies.
This functionality is provided by the standard #JE-921A Clinical EEG/PSG Amplifier. This high-quality, USB-connected amplifier provides all the necessary inputs for extensive physiological monitoring:
- 25 EEG Channels
- 14 Bipolar Channels (seven pairs)
- 4 DC Inputs
- Dedicated inputs for vital signals, including SpO2 and CO2.
Is this a complete, mobile EEG/PSG workstation?

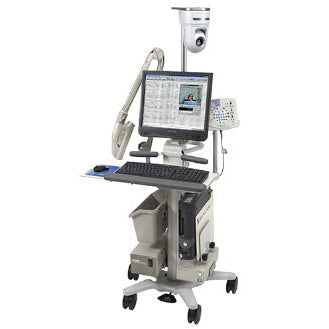

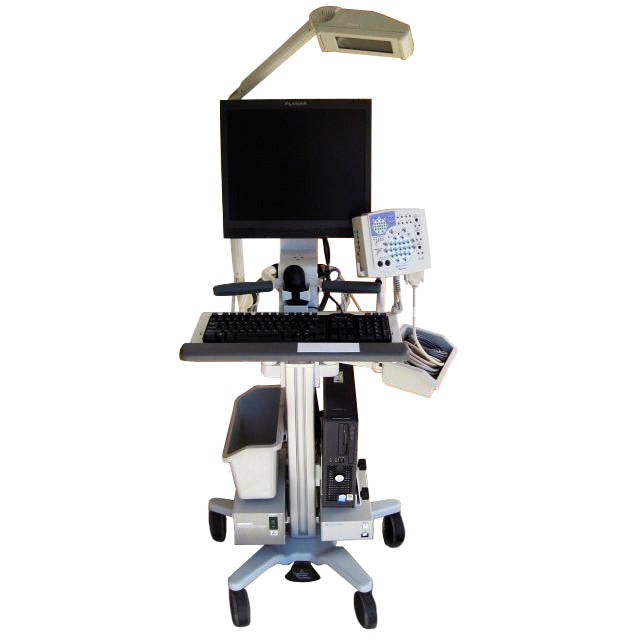

Yes, the Nihon Kohden Neurofax EEG-1200 is delivered as a Certified Refurbished, high-performance, and complete mobile EEG/PSG workstation.
Its space-saving, paperless design, mounted on a dedicated mobile cart, ensures easy movement and flexible placement in various clinical settings, such as the OR or ICU.
The standard configuration is fully equipped for clinical use and includes:
- PC and Display: Dell desktop (Intel i5, 8 GB RAM, 500 GB HDD) running Windows 11, paired with a 23” LCD monitor and peripherals.
- Amplifier: The versatile #JE-921A USB-connected amplifier providing 25 EEG, 14 bipolar, four DC, SpO2, and CO2 inputs.
- Software Suite: The comprehensive Nihon Kohden EEG software (v5.03), including NWB Neuro Workbench (v07.02), NRS Neuro Report (v04.11), and Trend (v02.22).
- Accessories: Photic stimulator (#LS-703AA), photic control box, isolation box, and interconnecting cables.
Are advanced clinical features included?
Yes, the Neurofax EEG-1200 system includes a powerful software suite designed for advanced clinical analysis and monitoring. The core software packages are Nihon Kohden EEG (v5.03) and the NWB Neuro Workbench (v07.02).
Key advanced clinical features supported by the system include:
- Online Mapping and Voltage Mapping: Provides immediate and detailed visualization of electrical activity distribution.
- Adult Seizure Detection and Review: Facilitates the efficient identification and post-record analysis of seizure activity (part of the EEG Examination Support Software).
- Advanced Signal Processing: Supports eight channels of Compressed Spectral Array (CSA) for sophisticated trend analysis.
- EKG Artifact Filter: Ensures cleaner waveform recording quality by actively reducing cardiac interference.
- EEG Central Monitoring: Allows for centralized observation and management of patient data.
What components make up the photic stimulator?
The photic stimulation components included are the #LS-703AA Photic Stimulator and the #LS-901AJ Photic Control Box.
Is this system suitable for both clinical and research use?
Yes, the Nihon Kohden Neurofax EEG-1200 system is specifically designed for use in both clinical and research settings for recording electroencephalograms and related vital signals.
