ndd Medical EasyOne Air Spirometer

Name: ndd Medical EasyOne Air Spirometer
Brand: ndd Medical
SKU: NDD-2500-2
Price: 2343.3 USD
Availability: InStock

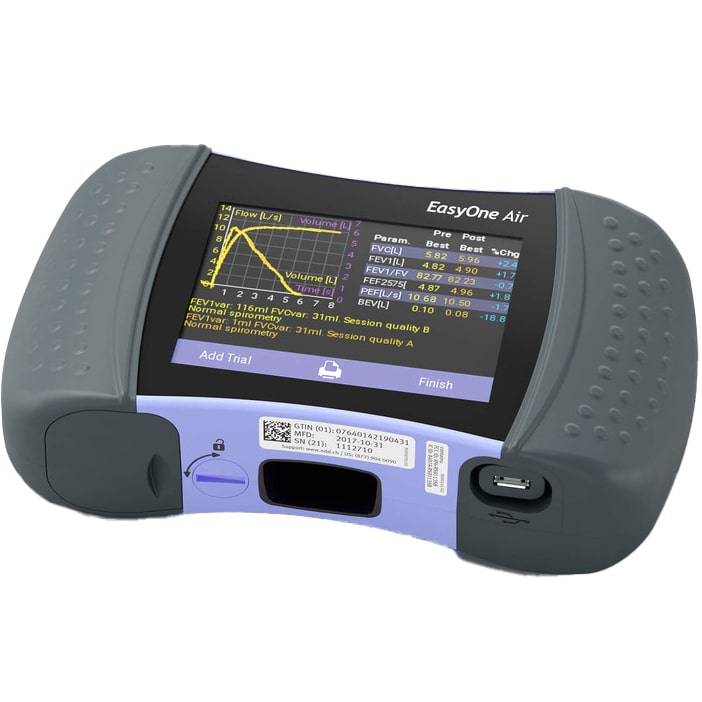

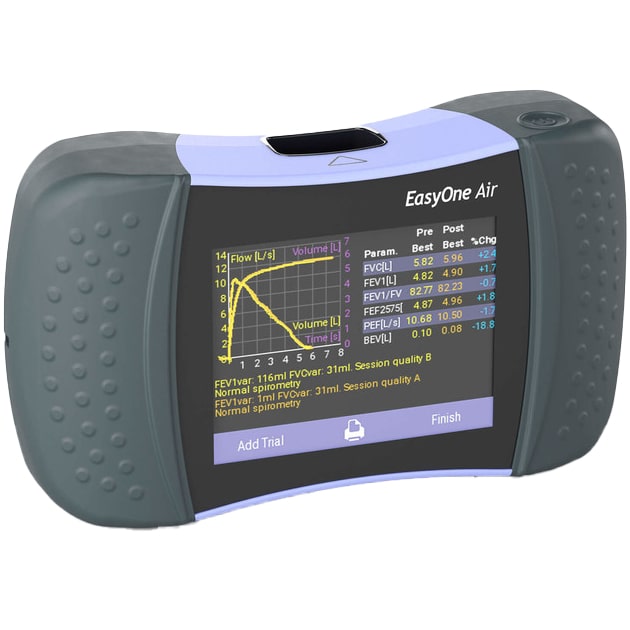

ndd Medical EasyOne Air Spirometer - top

ndd Medical EasyOne Air Spirometer - bottom

ndd Medical EasyOne Air Spirometer

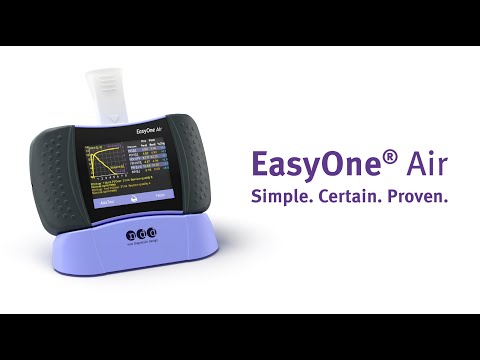

EasyOne Air - Portable & PC Spirometer

Initial Set Up & Configuration - EasyOne Air spirometer

Spirometry training: How to perform spirometry using the EasyOne Air

How to perform Forced Vital Capacity (FVC) tests with EasyOne Air

Multi-flow Calibration Check - EasyOne Air spirometer

Initial Set Up & Configuration - EasyOne Air spirometer

Spirometry training: How to perform spirometry using the EasyOne Air

How to perform Forced Vital Capacity (FVC) tests with EasyOne Air

Multi-flow Calibration Check - EasyOne Air spirometer

Key Features

SKU: NDD-2500-2
Condition: Factory New
Country of Origin: Switzerland
Warranty: 3 Years
Weight: 3.25 lb
Large, easy-to-read color touch screen
Easy navigation
Rechargeable battery
Switch between portable or PC mode
Learn more:

Contact The Manufacturer

MFR: ndd Medical Ships from Manufacturer

Items shipped from the manufacturer

This item will be shipped directly from the manufacturer to your doorstep, ensuring that you receive the newest product available. The estimated delivery range provided is based on the manufacturer's inventory levels and is subject to change depending on the quantity ordered. We ship items as soon as they become available, so if you order multiple quantities, you may receive them in separate shipments.

Special order item

A special order item will need to ship to our warehouse from the manufacturer before then shipping to you. The estimated delivery range that you see is based on the information that we receive from the manufacturer, which is also contingent upon your ordered quantity and the current inventory levels of the manufacturer. We will ship the items to you as soon as they become available, which may result in multiple shipments if you order more than one quantity.
MPN: 2500-2
Phone: (978) 470-0923

$2,343.30

Est. Delivery:

Quantity

Earn [points_amount] when you buy this item.

Shop with Confidence

Description

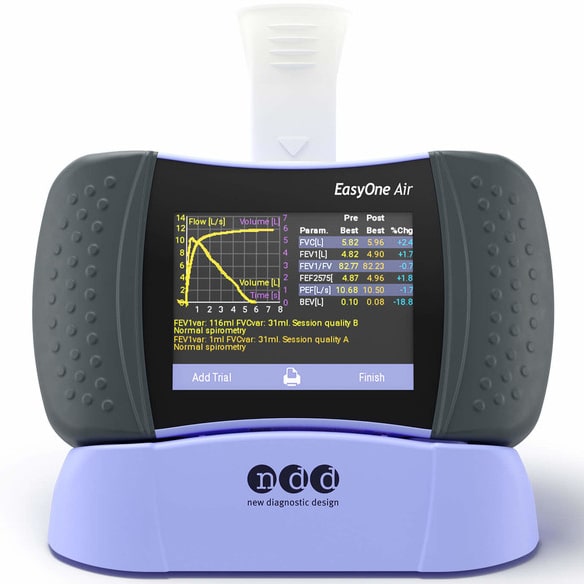

The ndd Medical EasyOne Air Spirometer (#2500-2) comes with a charging cradle, EasyOne Connect software, and Bluetooth dongle.

Warranty: 3 Years.

Flexible and accurate, the EasyOne Air Spirometer features innovative TrueFlow technology to deliver the most reliable results possible without the need for calibration for a lifetime of stress-free operation. Boasting a vivid color touch screen, the EasyOne makes it easy to navigate and view real-time results and enter data. Capable of being used as a portable or as a PC spirometer, it delivers consistent results regardless of setting and environmental factors and also easily connects to a PC for real-time patient incentives, data exchange, and EMR connectivity.

Features

ndd Medical EasyOne Air Spirometer Features

Large, easy-to-read color touch screen.
Easy navigation.
Long-term stable calibration.
Rechargeable battery (> 100 tests with one charge).
Bluetooth connectivity.
Flexible use, consistent results.
Switch between portable or PC mode.
Real-time animated incentives.
Real-time data transfer.
Proven EMR integration with top EMR/EHR systems.

Specifications

ndd Medical EasyOne Air Spirometer Specifications

Size: 3.4" x 6.1" x 1.4" (87 mm x 155 mm x 36 mm).
Weight: 0.81 lb (13 oz).
EMR Connectivity: EasyOne Connect.
Measuring Range:
- Volume: ± 2% or 0.050 l.
- Flow: ± 2% or 0.020 l/s (except PEF).
- PEF: ± 5% or 0.200 l/s.
- MVV: ± 5% or 5 l/min.
- Volume: ± 12 l.
- Flow: ± 16 l/s.
Resistance: Approximately 0.3 cm H₂O/L/s.
Languages: English, Danish, Dutch, French, German, Italian, Norwegian, Polish, Portuguese, Russian, Spanish, and Swedish.
Display: 64 x 160 graphic display.
Data Entry: 14-key keyboard.
Data Memory: For up to 700 tests.
Test Modes "Diagnostic": FVC, FVL, SVC, MVV, and Pre/Post Testing.
Test Modes "Frontline": FVC, Pre/Post.
Parameters "Diagnostic": FVC, MVV, FEV6, FEV1, FEV1/FVC, FEV1/FEV6, FEF75 (MEF25), FEF50 (MEF50), FEF25 (MEF75), MEF25%-75%, PEF, FET, FIVC, PIF, IVC, VC, FEV1/VC, ERV, IRV, pre-post % variation, Lung Age.
Parameters "Frontline": FVC, FEV6, FEV1, FEV1/FVC, FEV1/FEV6, PEF, pre-post % variation, Lung Age.
Measurement Principle: Ultrasound transit time.
Power Supply: 2 alkaline batteries, type AA, 1.5 V.
Report: A4 or 8.5" x 11", supports PictBridge standard and direct USB printing in conjunction with selected printers.
Storage:
- Temperature: -40 to 70 °C.
- Relative Humidity: 0 to 95%.
- Ambient Pressure: 500 to 1060 hPa.
Operating Conditions:
- Temperature: 0 to 40 °C.
- Relative Humidity: 0 to 95%.
- Ambient Pressure: 500 to 1060 hPa.
Certifications and Standards: CE Declaration of Conformity, see attachment. C CSA US approval, CAN/CSAC22. 2 NO. 601.1-M90, S1-94, CSA 601.1 Amendment 2: 1998, UL Std No. 2601.1, FDA 510 (k) approval, K993921 EasyOne meets or exceeds the published targets of the European Respiratory Society (ERS), the American Thoracic Society (ATS) and the National Lung Health Education Program (NLHEP).
Instrument Classification: Type BF applied part, powered internally with two AA alkaline batteries, short time operation, less than 10 minutes, instrument not suitable for use in flammable anesthetic gases in mixtures with O₂ or NO.
Life Time: 7 years.

Accessories

ndd Medical EasyOne Air Spirometer Accessories

The following accessories are compatible and commonly purchased with the EasyOne Air Spirometer:

#2020-5: Portable Color Inkjet Printer.
#2030-2: 3-Liter Calibration Syringe.
#2030-4: Nose Clips (25/Bag).
#5030-2: FlowTube Calibration Adapter.
EasyOne FlowTube Mouthpiece:
- #5050-50: Box of 50.
- #5050-200: Case of 200.
