Warranty: 1 Year.

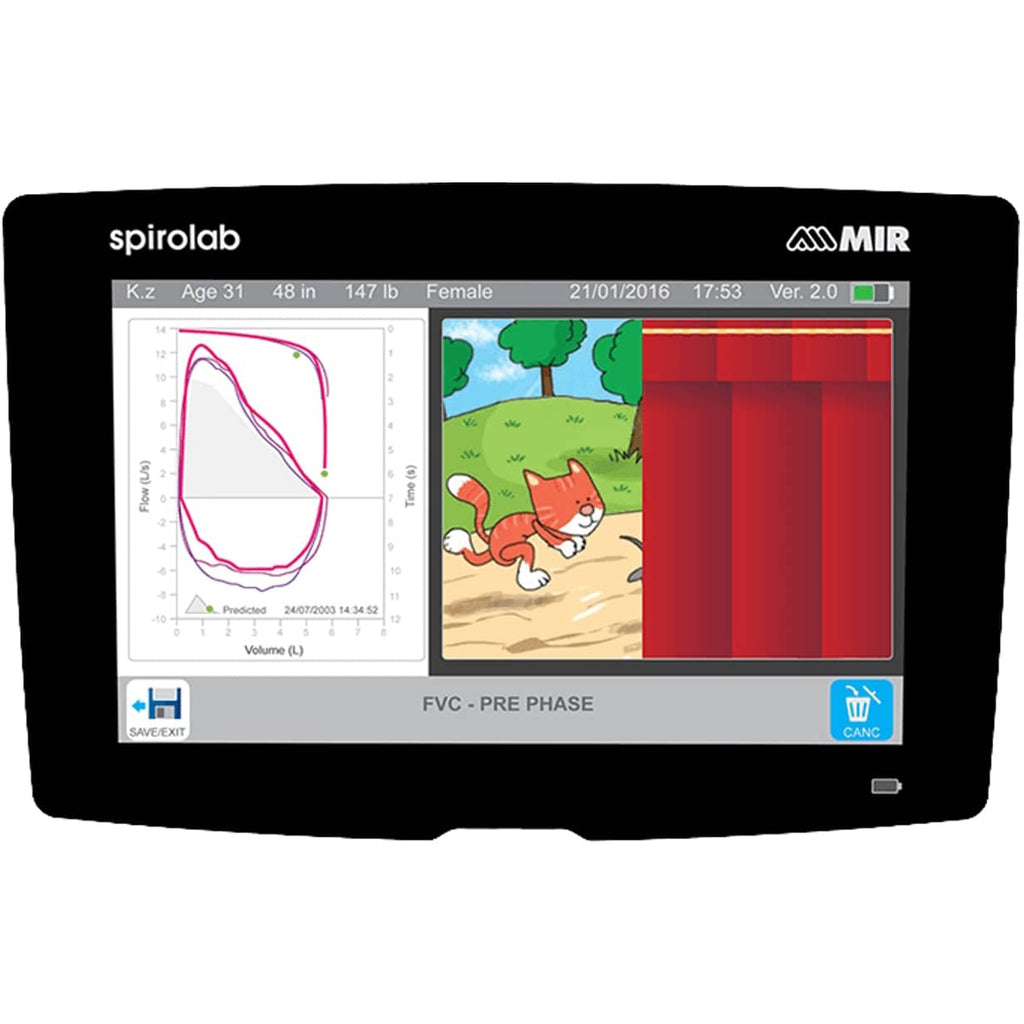

Pediatric Incentive Animations are included with this Spirometer, and may be used to improve patient compliance during a Spirometry test. Pediatric incentives allow you to view an "incentivator" directly on the screen.
WinspiroPRO PC Software provides real time Flow/Volume and Volume/Time curves with PRE/POST Bronchodilator comparison on your PC. Includes free online updates.
WispiroPRO is customizable PC Software for Spirometry, Oximetry, and Telemedicine projects. Just 1 click is required to select and send spirometry results and graphs by email.
This Software contains curves and tests in various formats including Word, Excel, Adobe Acrobat, HTML, and text file. WinspiroPRO is compatible with Windows XP, Vista, and 7. WinspiroPRO drivers have been certified by Microsoft. Network version available, and WinspiroPRO is now available with HL7 interface.
WinpiroPRO can easily be connected to a database, EPR, hospital, or occupational health system.

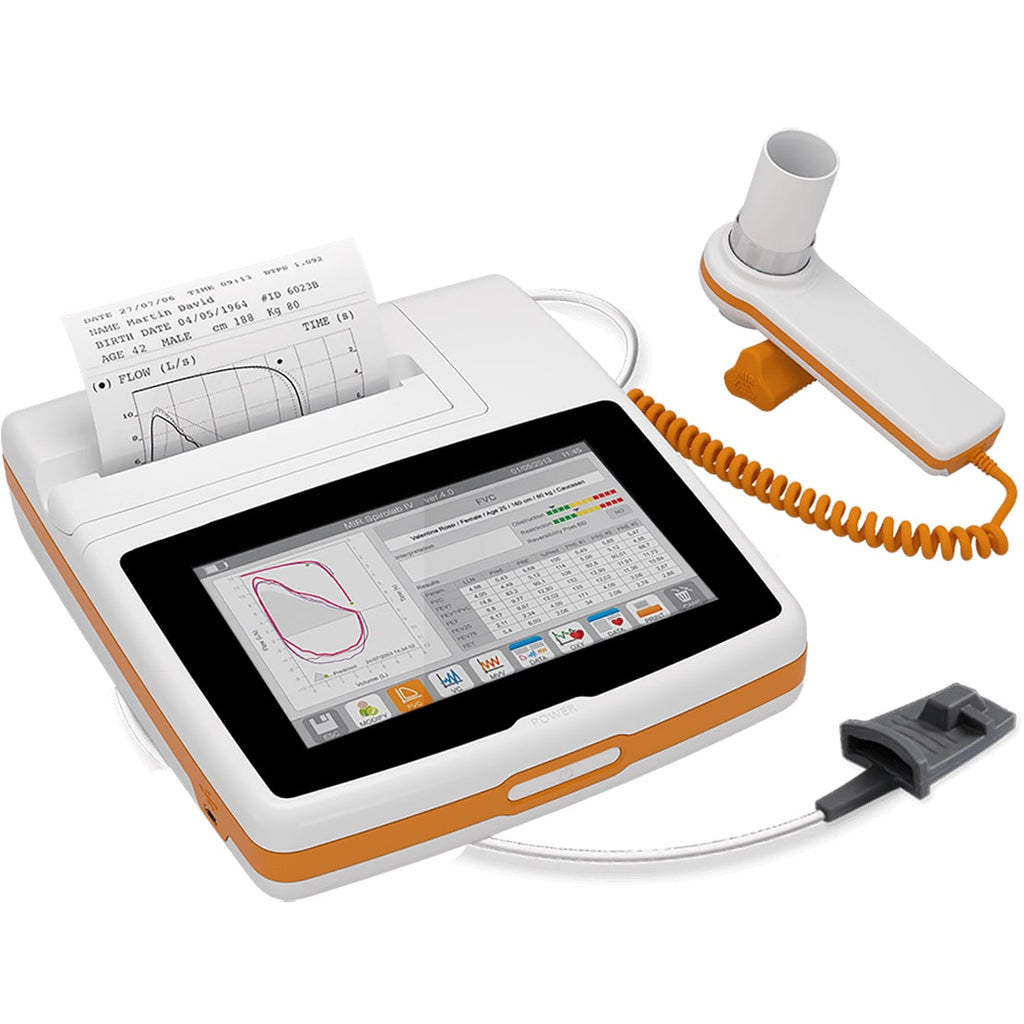

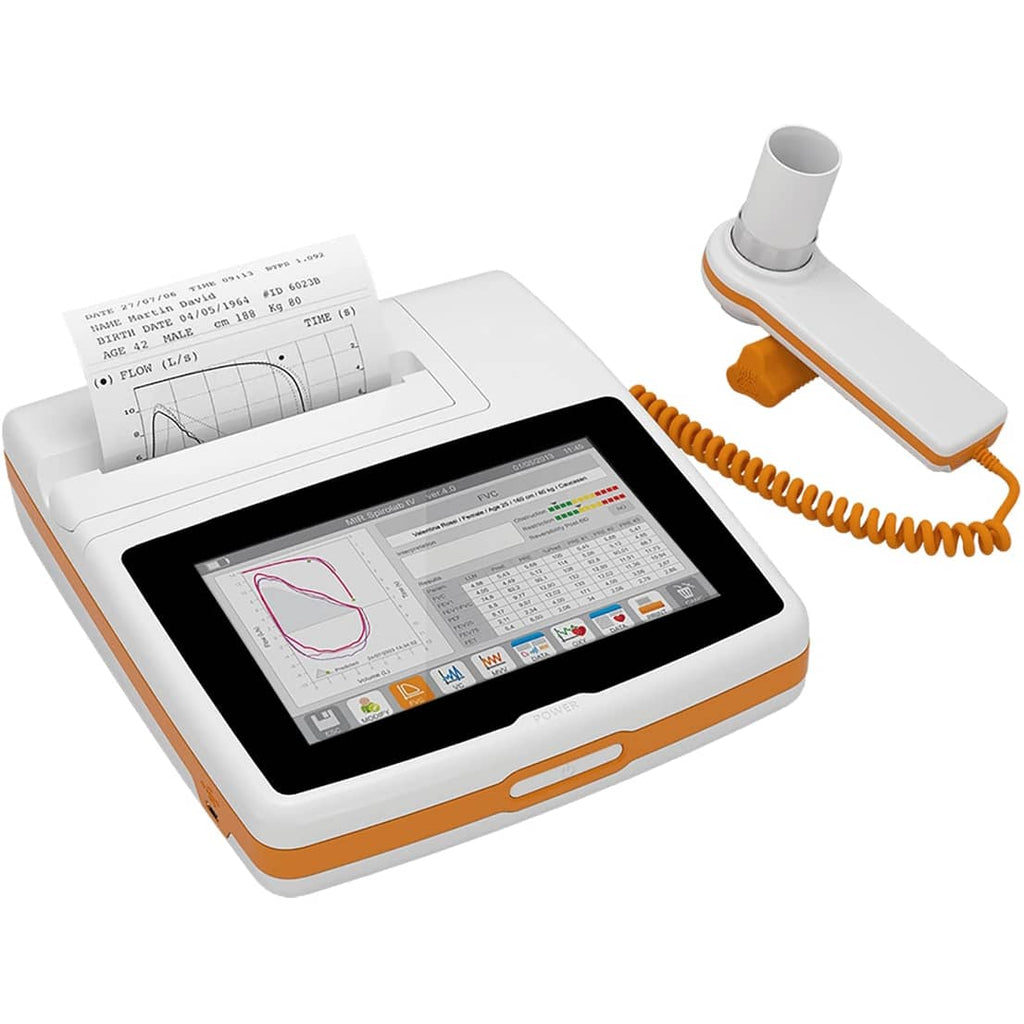

MIR Spirolab Spirometer Features:
Stand Alone Mode:

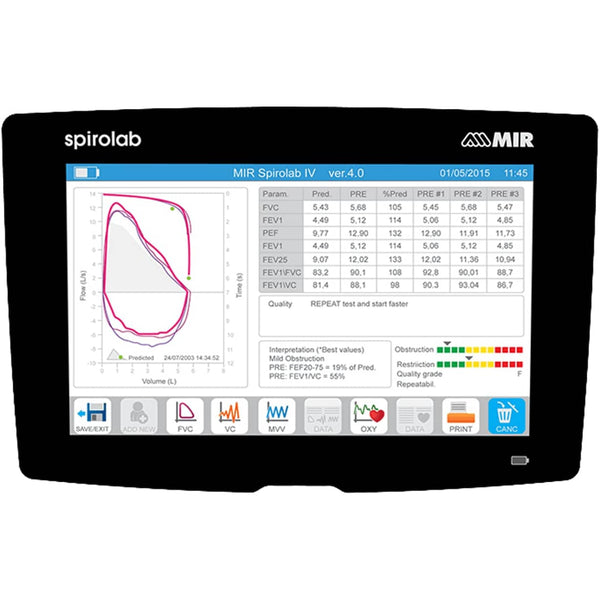

- Spirometry Test: FVC, VC, MVV, PRE/POST Brochodilator comparison with a wide range of selectable parameters.
- Fast and silent built-in printer with customizable printout format.

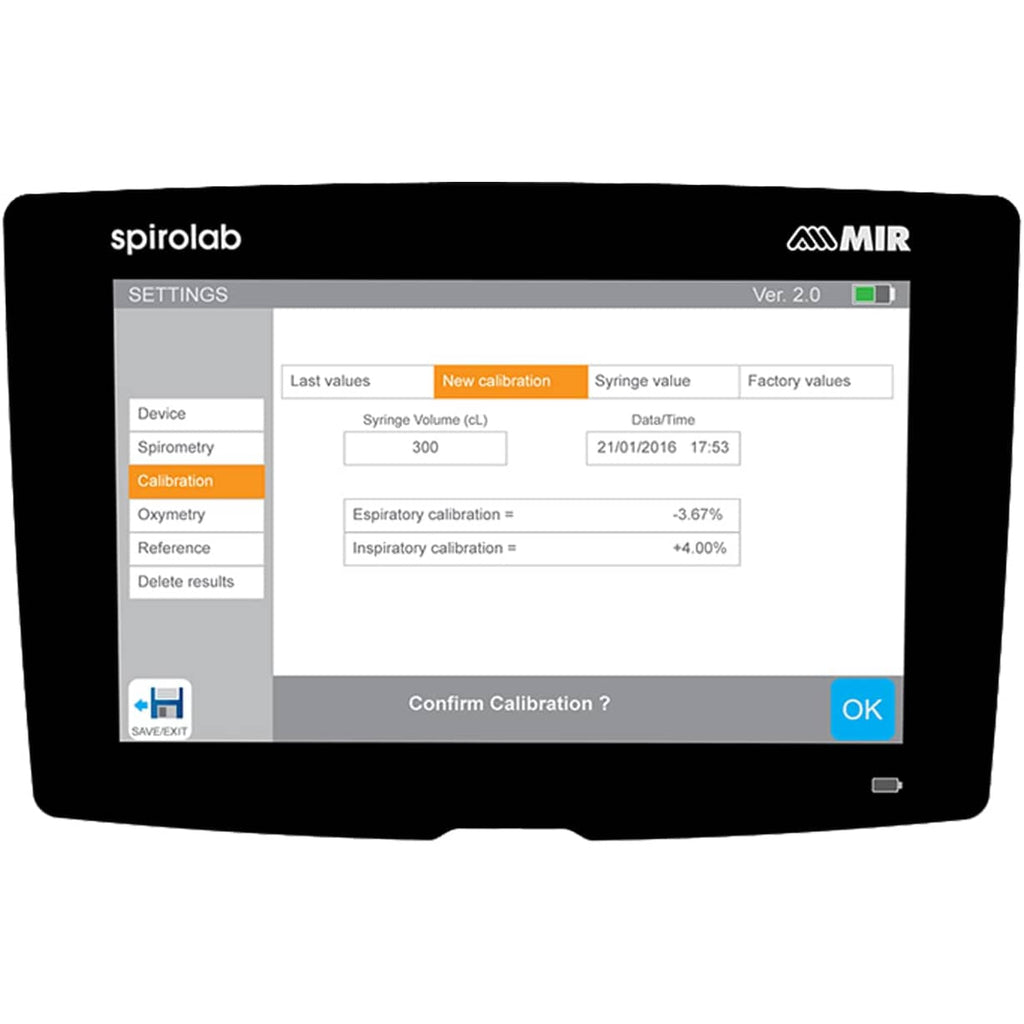

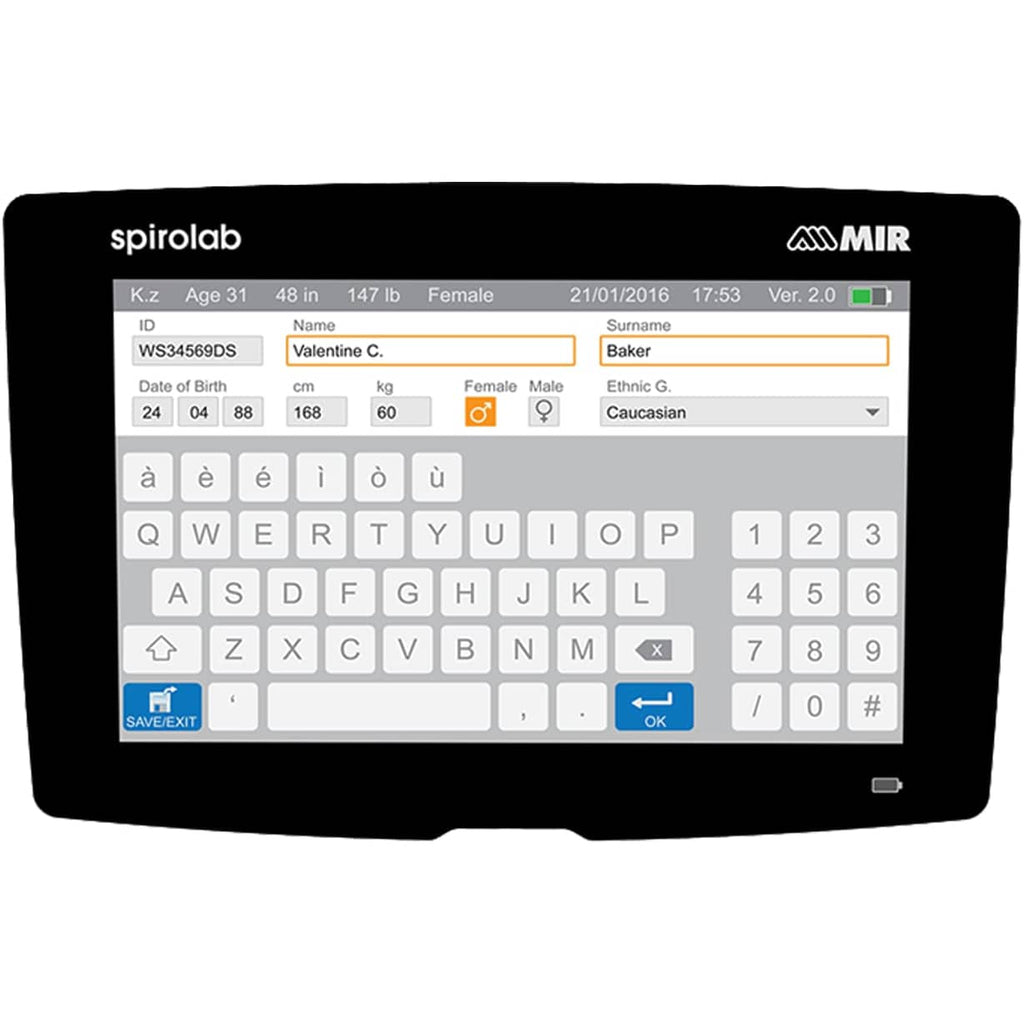

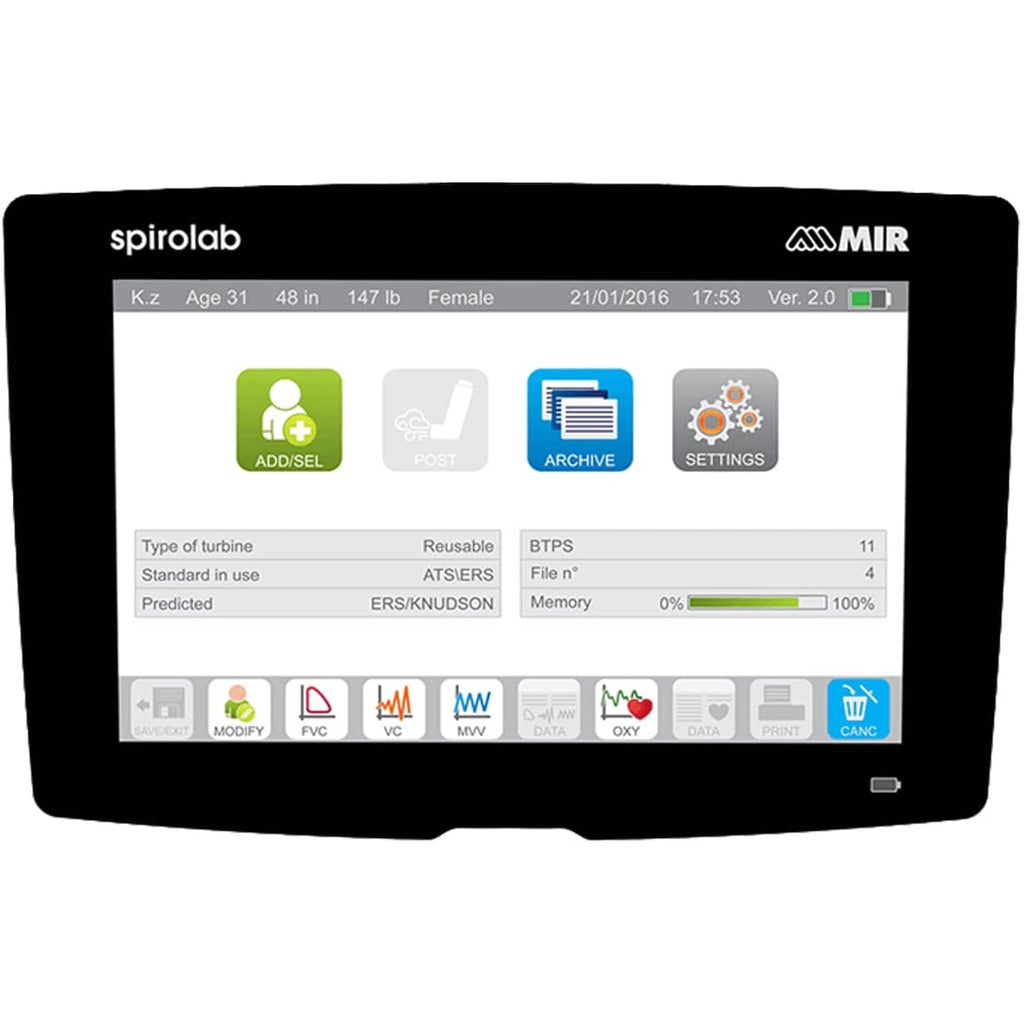

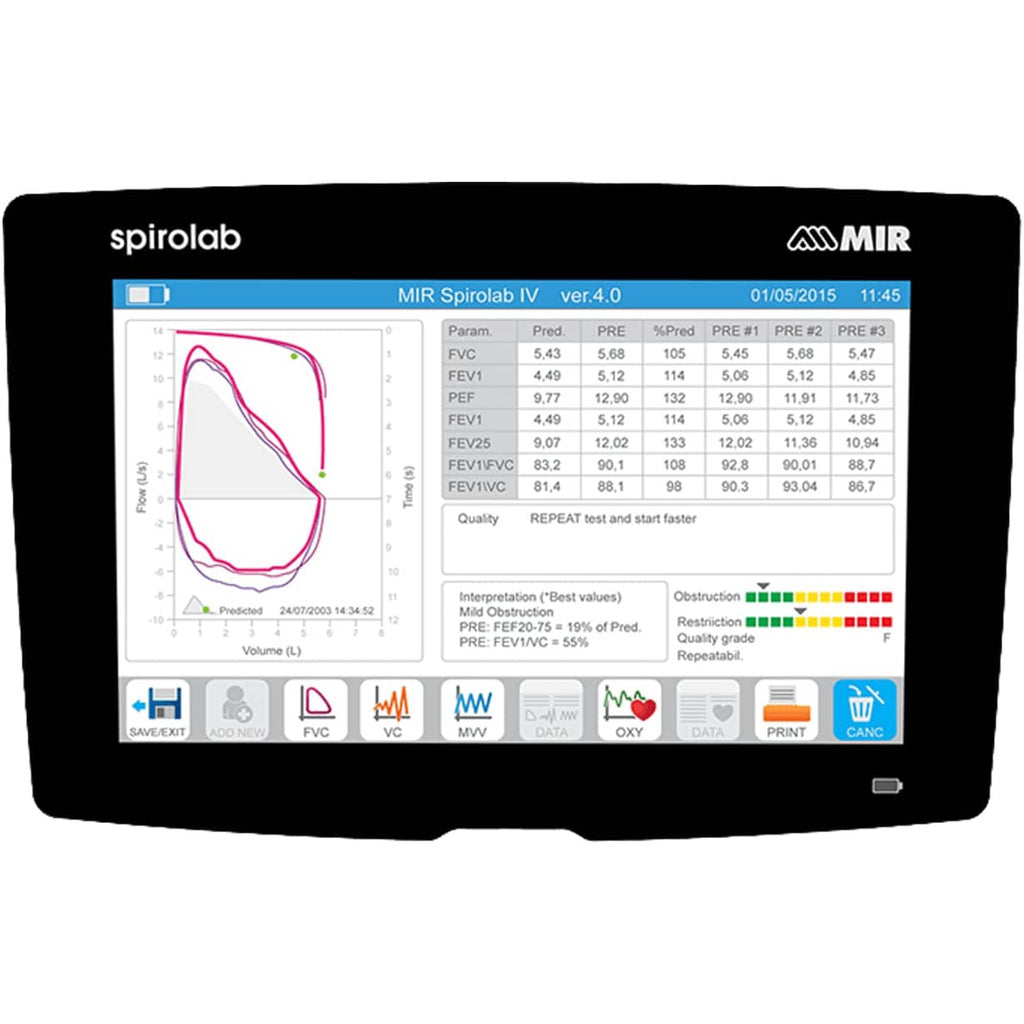

- Color Touchscreen: 7" LCD TFT display (800 x 480 resolution).

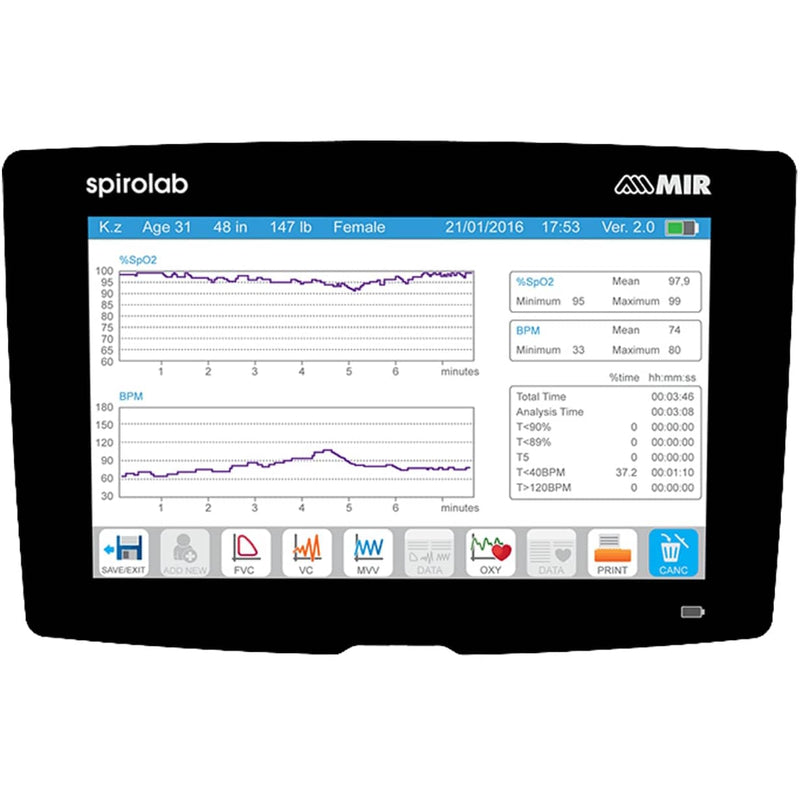

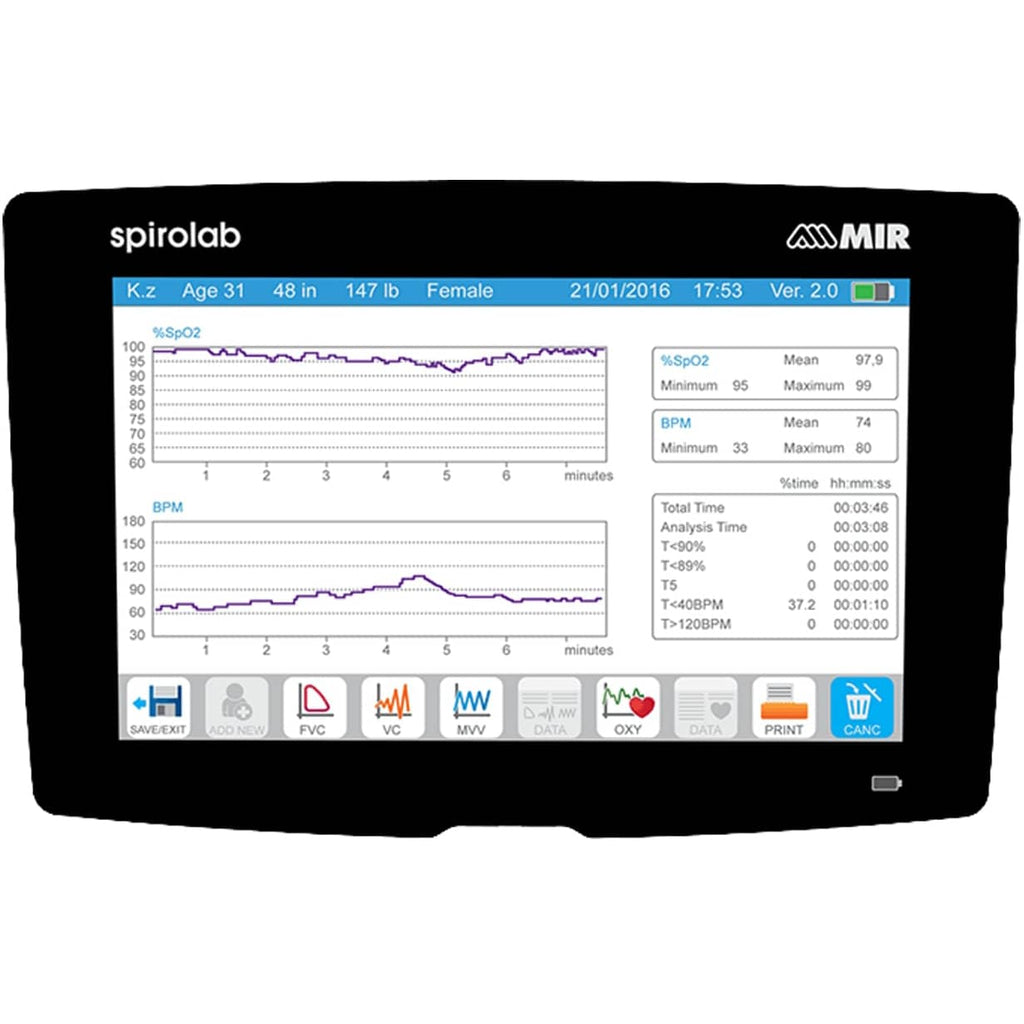

- Database of up to 10,000 Spirometry tests or 900 hours of Oximetry recording coupled with powerful and flexible search services.
- Long life rechargeable battery.
PC based Mode, using WinspiroPRO:
- Bluetooth 2.1 and USB Connectivity: Wireless or via cable Real Time test directly on your PC.
- Spirometry Test After Drug Administration: Bronchodilator Reversibility, Bronchial Challenge with FEV1-response curve with protocols for both Methacholine and Mannitol.
- Quanjer 2012-GLI Predicted values with LLN and Z-score.
- Patient Trend Charts for Easy Follow-Up: Search engine for instant access to database. Wide choice of communication protocols for integration with EMR.

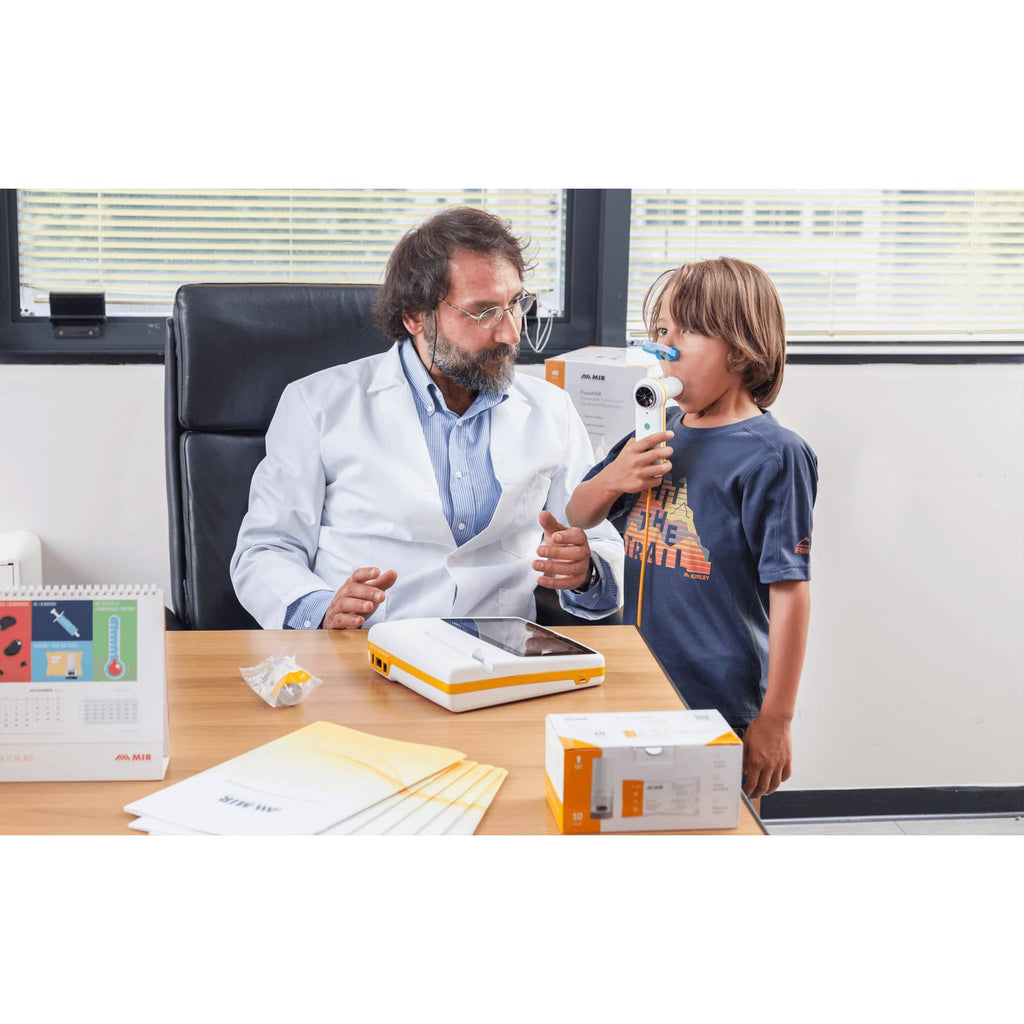

- Pediatric incentive for Spirometry with wide choice of pictures and animations makes it suitable for use with children.
- Carrying case is elegant and robust.
- Direct connection to an external USB Printer.
MIR Spirolab Spirometer Specifications:
- Power Supply: Rechargeable battery and mains power.
- Temperature Sensor: Semiconductor (0 - 45 °C).
- Flow Sensor: Bi-Directional digital turbine.
- Flow Range: ± 16 L/s.
- Volume Accuracy: ± 3% or 50 mL.
- Flow Accuracy: ± 5% or 200 mL/s.
- Dynamic Resistance: < 0.5 cmH2O/L/s.
- Connectivity: USB 2.0, Bluetooth 2.1.
- Mouthpieces: Ø 30 mm (1.18").
- SpO2 Range: 0 - 99%.
- SpO2 Accuracy: ± 2% between 70 - 99% (whichever is greater).
- Pulse Rate Range: 18 - 300 BPM.
- Pulse Rate Accuracy: ± 2 BPM or 2% (whichever is greater).
- Memory Capacity: Up to 500 hours oximetry.
- Dimensions: 8.66" x 8.26" x 2.0" (220 mm x 210 mm x 51 mm).
- Weight: 3.1 lbs (1450 g) (battery pack included).
MIR Spirolab Spirometer Accessories:
The Spirolab Spirometer is commonly purchased with:
- 910004: FlowMIR Disposable Turbine with Mouthpiece (Box of 50).
- 910002: Reusuable Turbine.
MIR Spirolab Spirometer Configurations:
- 911080: Standard (No Oximetry).
911081: With Oximetry.
- Includes Adult (standard) or Pediatric Finger Probe. *If you would like the Pediatric Finger Probe with your Oximetry model, please call or specify in the comments section during the checkout process.
MIR Spirolab Spirometer Literature:
MIR CPT Codes/Indications Flyer
MIR WinspiroPro Software Sample Report
MIR Spirolab Spirometer Brochure
