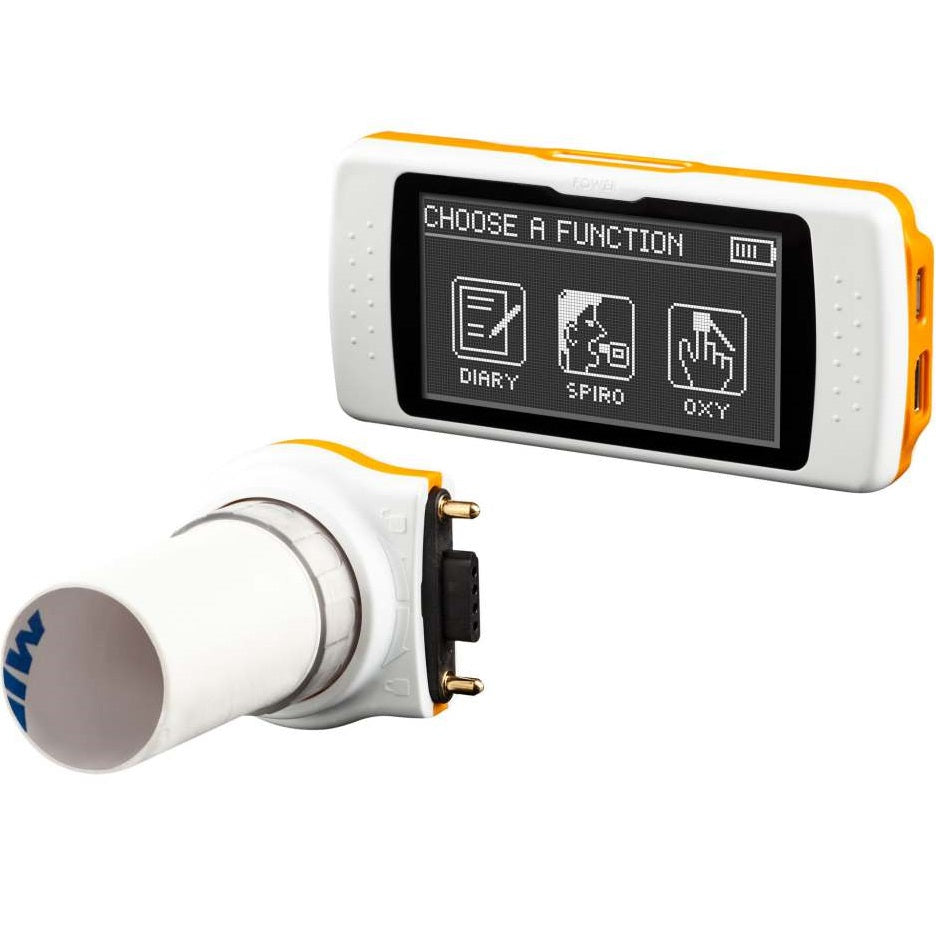

MIR Spirodoc + Oxi Spirometer

Yes, the MIR Spirodoc + Oxi Spirometer features a LCD backlit touch screen for easy navigation and data input.

The MIR Spirodoc + Oxi Spirometer comes as a complete kit, including all necessary components for immediate use in both clinical and homecare settings:

• Software and Documentation: WinspiroPRO CD (PC software) and Users manual CD.
• Power and Connectivity: Lithium-ion rechargeable battery pack and USB cable.
• Oximetry: Adult reusable oximetry sensor.
• Spirometry: Nose clip and a Box of 10 FlowMIR Disposable Turbines.
• Portability: Carrying case and a belt with plastic case.

The MIR Spirodoc + Oxi is an integrated device that provides a comprehensive range of diagnostic data, functioning both as a clinical spirometer and an advanced 3D oximeter.

Spirometry Testing

The device supports a full suite of spirometry tests, including PRE/POST bronchodilator comparisons and calculation of Lung Age. Key parameters measured include:

• Forced Maneuvers: FVC, FEV1, FEV1/FVC, PEF, FEF25, FEF50, FEF75, FEV3, FEV6, FEV1/FEV6, FIVC, FIV1, FIV1/FIVC, PIF, FET, Extrap. Volume.
• Capacity/Ventilation: VC, IVC, IC, ERV, MVV (measured and calculated), Rf, VE, VT, t

The device uses a bi-directional digital turbine for high-precision measurements:

• Volume Accuracy: ± 3% or 50 mL (whichever is greater).
• Flow Accuracy: ± 5% or 200 mL/s (whichever is greater).

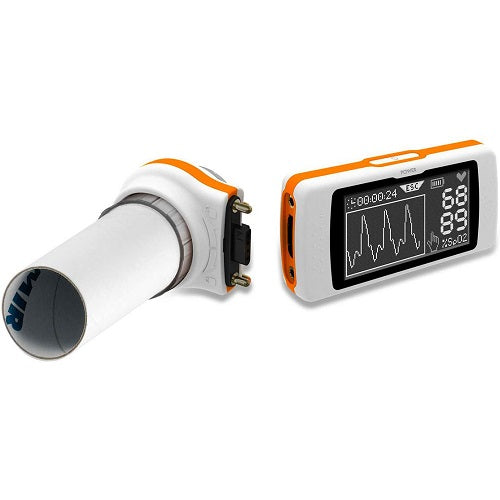

3D Oximetry (SpO2 & Pulse Rate)

This spirometer is unique for its 3D Oximetry functionality, utilizing a Triaxial Accelerometer to correlate blood saturation levels (%SpO2) directly with the patient’s physical activity. This is essential for monitoring during activities like the 6-Minute Walk Test (6MWT).

Parameters recorded during oximetry include:

• Core Readings: SpO2 and Pulse Rate (measured as Baseline, Min, Max, and Average).
• Activity Metrics: Step counter and Physical Activity (VMU).
• Event Analysis: Detailed analysis of desaturation events (T90%, T89%, T88%, T5%),

Accuracy specifications for oximetry are:

• SpO2 Accuracy: ± 2 % (in the 70 - 99% range).
• Heart Rate Accuracy: ± 2 BPM or 2% (whichever is greater).

The device utilizes both USB 2.0 and Bluetooth 2.1 for data transmission, ensuring versatile connectivity.

The MIR Spirodoc + Oxi Spirometer is powered by a Lithium Ion 3.7 V 1100 mA rechargeable battery.

The MIR Spirodoc + Oxi Spirometer is a multi-functional device that supports comprehensive pulmonary and cardiovascular assessment, including advanced testing modes:

• Full Spirometry Testing: Offers detailed respiratory analysis, measuring parameters such as FVC, FEV1, MVV, and VC. It also supports essential PRE/POST Bronchodilator comparisons.
• Integrated 3D Oximetry: This unique feature functions as the first “3D Oximeter” by using a triaxial accelerometer to correlate blood oxygen saturation (SpO2) levels with the patient’s physical movement. This provides superior diagnostic insight into activity tolerance.
• Extended Oximetry Monitoring: Provides comprehensive SpO2 and Pulse Rate analysis through specialized modes:
  • 24-hour Holter Test
  • Sleep Desaturation Study
  • 6-Minute Walk Test (6MWT)
  • Spot Oximetry Test
  • Respiratory Rehabilitation Monitoring
• Patient Monitoring Features: It includes a touch screen for on-screen entry into the Patient eDiary and Home Care Symptoms Diary, facilitating long-term patient monitoring.

The WinspiroPRO PC software is essential for managing and interpreting the data collected by the Spirodoc + Oxi Spirometer. It offers several benefits to enhance data analysis and workflow:

• Real-Time Testing: Allows for conducting tests and viewing results wirelessly in real-time on a PC via Bluetooth 2.1, or through a USB 2.0 connection.
• Comprehensive Review: Facilitates detailed analysis and review of all collected spirometry and advanced oximetry parameters, curves, and test modes.
• Clinical Comparison: Supports essential PRE/POST bronchodilator comparisons for accurate assessment of treatment efficacy.
• Continuous Updates: The software includes free online updates, ensuring you always have access to the latest features and diagnostic tools.

The MIR Spirodoc + Oxi Spirometer is a versatile diagnostic tool suitable for a wide range of professional and patient monitoring needs:

• Targeted Medical Fields: It is designed for use by professionals in pneumology, cardiology, and rehabilitation.
• Flexible Environments: The device is appropriate for both professional office use and patient home care monitoring.
• Advanced Testing: It supports key capabilities essential for comprehensive assessment, including:
  • Respiratory Rehabilitation Monitoring
  • 6-Minute Walk Tests (6MWT)
  • 24-hour Holter monitoring and Sleep desaturation studies.

Crucially, it is the first “3D Oximeter,” which allows it to correlate blood oxygen saturation (%SpO2) with physical activity by utilizing its integrated triaxial accelerometer.

The dimensions of the main unit are 101 mm x 48 mm x 16 mm, and it weighs 0.22 lb (99 g). The removable turbine head dimensions are 46 mm x 47 mm x 24 mm and weighs 17 g.

Yes, the MIR Spirodoc + Oxi Spirometer is an integrated device that combines both flow/volume spirometry testing with non-invasive SpO2 and Pulse rate monitoring. This allows for comprehensive assessment in one unit.
