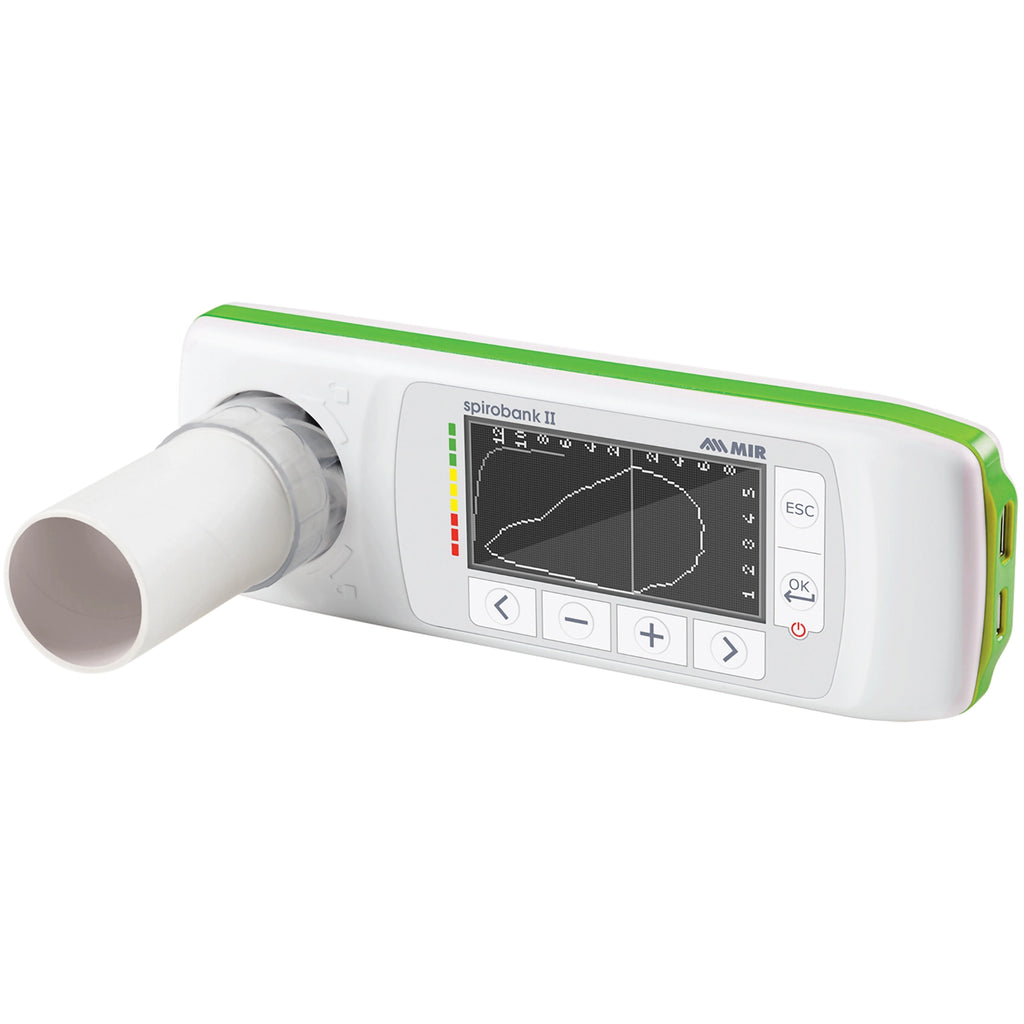

MIR Spirobank II Basic Spirometer

The MIR Spirobank II Basic Spirometer (#911021) includes a WinspiroPRO CD, rechargeable batteries, USB cable (#532367), Plastic Nose Clip (#910320-F), carrying case (#672679), and a users manual CD.

Warranty: 2 Years.

The Spirobank II Basic is fast and intuitive to operate with its icon-based navigation menu and backlit high resolution display which shows onscreen results and curves for immediate data analysis.

It is essential and easy-to-use, ideal for family doctors, occupational medicine, and screening.

MIR Spirobank II Basic Spirometer Features

• PRE and POST Bronchodilator comparison.
• Spirometry test interpretation.
• Internal Storage memory for up to 10,000 spirometry tests.
• WinspiroPRO PC and spiro Connect Software-compatible.
• Pediatric incentive for spirometry.
• Provides instant access to database and patient trend charts for easy follow-up.
• FVC, VC, IVC, IC, ERV, PRE, and POST with main Spirometry parameters enabled (FEV1, FEV1%, PEF, FEF 25-75, FET, EVOL).
• Estimated Lung Age (ELA) test to assess the benefits from smoking cessation.
• Traffic lights indicate immediate test interpretation.
• Real time tests may be reviewed via USB.
• Long-life Lithium ION battery provides approximately 40 hours of continuous operation and is rechargeable via USB.
• On screen results and curves preview.
• PC Connection: Real-time test on PC screen, connect with your EHR/EMR, back-up internal memory, and much more.
• Compliance with ATS/ERS 2019 and other standards.

MIR Spirobank II Basic Spirometer Specifications

• Display: 160 x 80 pixels.
• Power Supply: 3.7 V x 110 mA lithium battery USB rechargeable.
• Keypad: 6-Key Membrane Keyboard.
• Data Transmission: USB.
• Dimensions: 6" x 2" x 1" (160 mm x 55 mm x 25 mm).
• Weight: 0.31 lb (140 g) with battery.
• Flow Measurement: +/- 16 L/s.
• Volume Accuracy: +/- 3% or 50 mL.
• Flow Accuracy: +/- 5% or 200 mL/s.
• Temperature Sensor: Semiconductor (0 - 45 °C).
• Main Spirometry Parameters: FVC, FEV1, FEV1%, PEF, FEF25-75, FET, Extrap. Volume, Lung Age, VC, IVC, IC, ERV.

MIR Spirobank II Basic Spirometer Accessories

The following accessories are compatible and commonly purchased with the Spirobank II Basic Spirometer:

• #532367: USB Cable.
• #672679: Carrying Case.
• #910002: Reusable Turbine Flowmeter.
• FlowMIR Disposable Turbine:
  • #910004-10: Box of 10.
  • #910004: Box of 60.
• #910310: Disposable Pediatric Mouthpiece (15/Bag).
• #910310-S: Disposable Pediatric Adapter for FlowMIR (15/Bag).
• #910320-F: Plastic Nose Clip (100/Bag).
• #919000: Calibration Syringe.
• #920216: WinspiroPRO Net Additional License.
• #92068505: Battery Charger - 110 V (USA).

MIR Spirobank II Basic Spirometer Literature

MIR General Catalogue

MIR CPT Codes/Indications Flyer

MIR Winspiro Software Brochure

MIR WinspiroPro Software Sample Report

MIR Spirobank II Basic Quick Start

MIR Spirobank II BASIC Spirometer Datasheet
