Warranty: 1 Year.

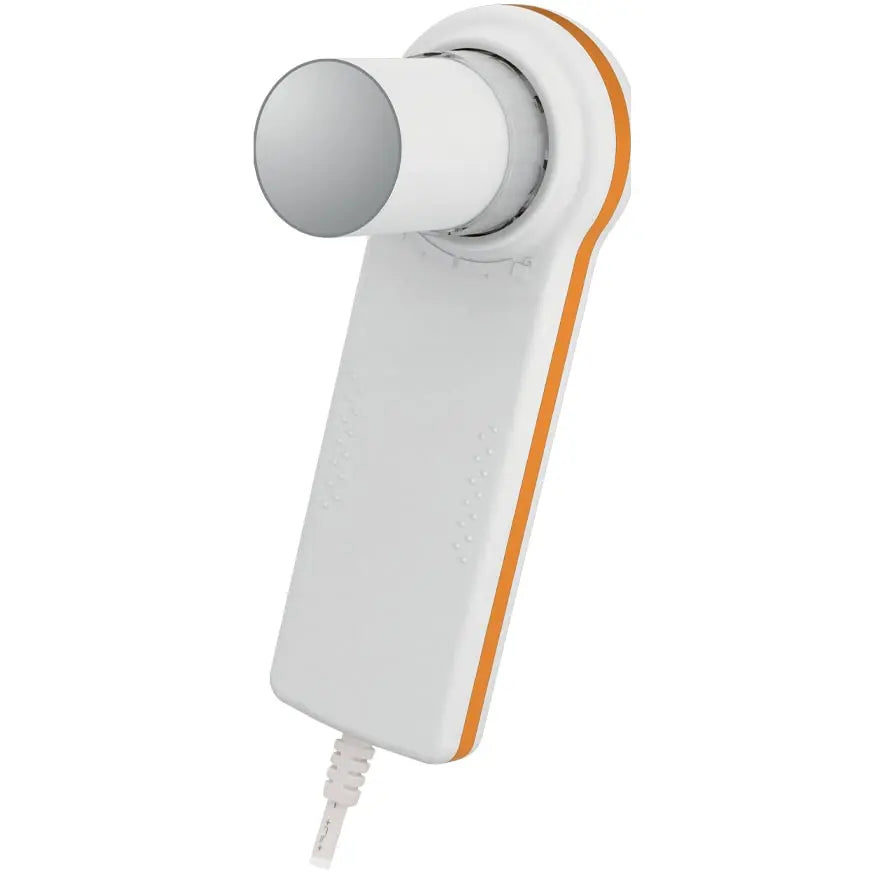

MIR Minispir Spirometer Features:
- Plugs directly into the USB socket on your PC.
- Real time flow/volume loops and volume/time curves with PRE/POST comparison.
- Advanced spirometry test interpretation.
- Pediatric incentive animations.
- Lung age estimation (ELA).
- Methacoline and mannitol provocation test with FEV1 dose-response curve.
- Temperature sensor for BTPS conversion.
WinspiroPRO is the new software for maximum spirometry and oximetry performance, already in use worldwide. With its extreme simplicity of use plus innovative user interface, WinspiroPRO represents a new frontier for PC spirometry and oximetry. Just 1 click is required to select and send spirometry results and graphs by email. WinspiroPro includes FVC, VC, MVV, and bronchial challenge testing, plus much more. Contains curves and tests in various formats including Word, Excel, Adobe Acrobat, HTML, and text file. WinspiroPRO is compatible with Windows XP, Vista, and 7. WinspiroPRO drivers have been certified by Microsoft. Network version available, and WinspiroPRO is now available with HL7 interface.
WinpiroPRO can easily be connected to a database, EPR, hospital, or occupational health system. Special edition with HL7 interface is available on request.
MIR Minispir Spirometer Specifications:
- Temperature Sensor: Semiconductor (0 - 45 ŒÁC).
- Flow Sensor: Bi-directional digital turbine.
- Flow Range: Œ± 16 L/s.
- Volume Accuracy: Œ± 3% or 50 mL.
- Flow Accuracy: Œ± 5% or 200 mL/s.
- Dynamic Resistance at 12 L/s: < 0.5 cmH2O/L/s.

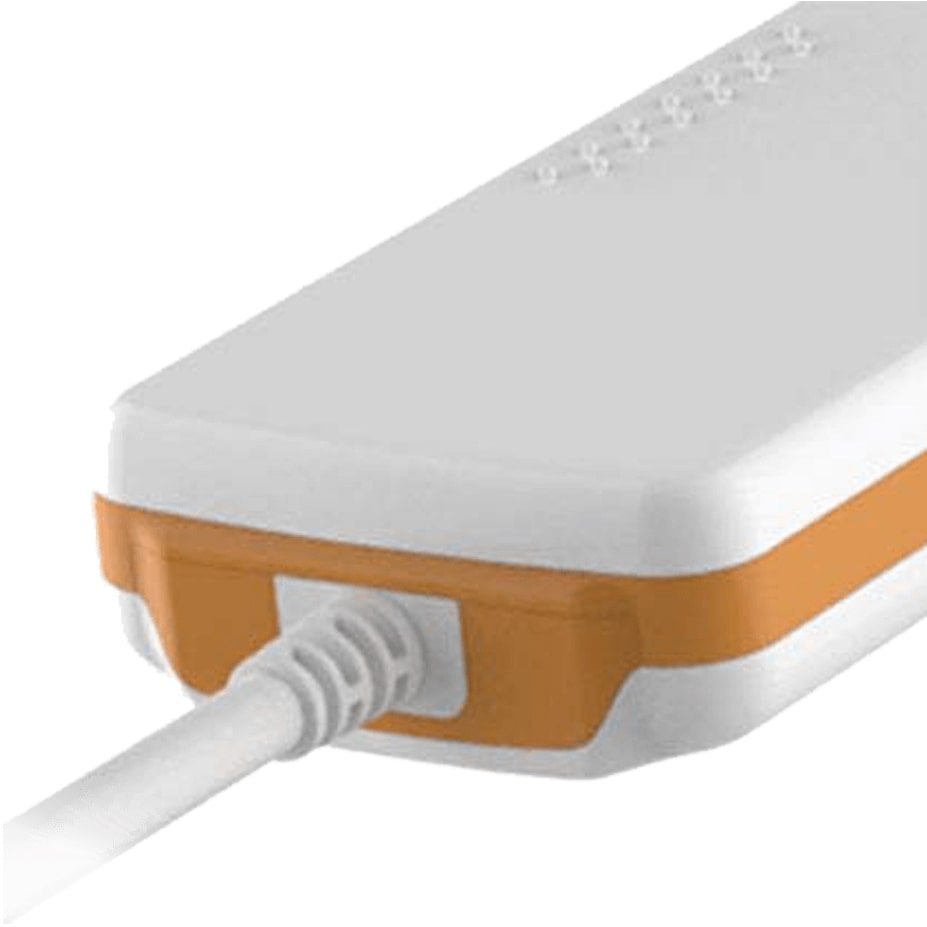

- Communication Port: USB.
- Power Supply: Line powered from USB port.
- Dimensions: 142.0 mm x 49.7 mm x 26.0 mm.
- Weight: 2.5 oz (65 grams).
- Spirometry Parameters: FVC, FEV1/FVC, FEV1/VC, PEF, FEF25, FEF50, FEF75, FEF25-75, Lung Age, Extrap. Volume, FET, FEV3, FEV3/FVC, FEV6, FEV1/FEV6, FIVC, FIV1, FIV1/FIVC, PEF, VC, IVC, IC, ERV, Rf, VE, VT, tI, tE, VT/tI, tEtTOT, MVV.
- Spirometry Test: FVC, VC, IVC, MVV, PRE/POST Bronchodilator comparison with a wide range of selectable parameters.
MIR Minispir Spirometer Accessories:
The Minispir Spirometer is commonly purchased with:
- 910004: MIR FlowMir Disposable Turbines for breath measurement.
- 910002: MIR Reusable Turbine Flowmeter.
MIR Minispir Spirometer Media & Literature:
MIR FlowMir Disposable Turbine Brochure
MIR WinspiroPro Software Sample Report
MIR Minispir Spirometer Brochure
