Condition:
- Weight: 0.67 lb

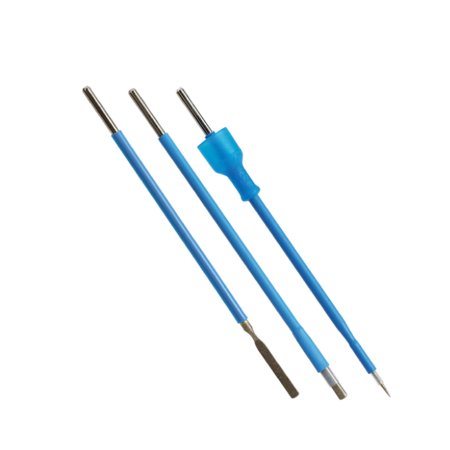

- Coated Blade Electrode, 7.62cm (3.0 in.), For All Non Hex-Locking Pencils, 50/cs
-
Learn more:
-
MFR:
Medtronic/Minimally Invasive Therapies Group
Ships from MFI Medical
-
MPN: E1465B
- Phone: (800) 633-8766
Frequently asked questions
Do these electrodes provide high-performance cutting and coagulation?
Yes, Medtronic Valleylab Edge Coated Electrodes are specifically designed for high-performance cutting and coagulation across various surgical procedures. The unique EDGE coating also provides a significant advantage by allowing for easy cleaning, eliminating the need for scraping.
Do these electrodes fit Valleylab pencils?
Yes, the Medtronic Valleylab Edge Coated Electrodes are designed for compatibility with a wide range of Valleylab electrosurgical pencil systems.
Compatibility is ensured by:
- Standardized Shaft Diameter: The electrodes feature a standard 0.24cm (3/32 inch) diameter shaft, ensuring compatibility with general fittings.
- Variety of Configurations: They are available in specific configurations to suit different pencil types, including:
- Hex-Locking fittings
- Handswitching fittings (some variants are PTFE insulated and may include a Safety Sleeve)
- General pencil fittings
This broad compatibility allows for seamless integration into your existing Valleylab equipment.
Do these electrodes offer enhanced safety features?
Yes, the Medtronic Valleylab Edge Coated Electrodes are available in configurations that incorporate several features designed to enhance safety and reliability during electrosurgical procedures. These features vary by variant:
- PTFE Insulation: Select variants feature PTFE (Polytetrafluoroethylene) insulation on the shaft, providing critical electrical isolation for improved patient safety.
- Safety Sleeves: Specific configurations designed for use with Valleylab Handswitching Pencils may include a Safety Sleeve for secure handling and added protection.
- Durable Coating: The innovative EDGE coating is highly durable and engineered to be bendable without compromising its integrity, ensuring consistent electrical performance and reliable operation.
- Smoke Evacuation: Certain specialized models include the AccuVac Smoke Evacuation Attachment to help manage the surgical environment and reduce surgical plume exposure.
Are various shaft lengths available?
Yes, the Medtronic Valleylab Edge Coated Electrodes are available in versatile lengths to accommodate diverse surgical needs.Key specifications regarding size:* Standard Shaft Diameter: All variants utilize a standard 0.24 cm (3/32 inch) diameter shaft, ensuring broad compatibility.* Length Options: The electrodes are offered in both standard and extended configurations: * Standard Lengths: Include options such as 6.35 cm, 6.99 cm, 7.21 cm, and 7.62 cm. * Extended Lengths: Available up to 16.51 cm (61/2 inches), with other long options like 10.16 cm also listed.
Does the unique EDGE coating ensure easy cleaning?
Yes, the unique EDGE coating on Medtronic Valleylab Edge Coated Electrodes provides a significant advantage by offering easy cleaning and eliminating the need for scraping. This specialized coating ensures cutting performance similar to stainless steel while greatly simplifying post-procedure care.
What are the available case quantities?
The Medtronic Valleylab Edge Coated Electrodes are supplied in two standard case quantities. The quantity depends on the specific product configuration you select (e.g., electrode type, insulation, and length).
Available packaging options are:
- 25 units per case
- 50 units per case
Are the electrodes durable and bendable?
Yes, these electrodes are designed to be durable and bendable without compromising the integrity of the coating, ensuring they maintain performance during various procedures.
What specific electrode types and lengths are offered?
The Medtronic Valleylab Edge Coated Electrodes are available in numerous configurations, all featuring the proprietary EDGE coating for clean, superior cutting performance without the need for post-procedure scraping.
Key configuration options include:

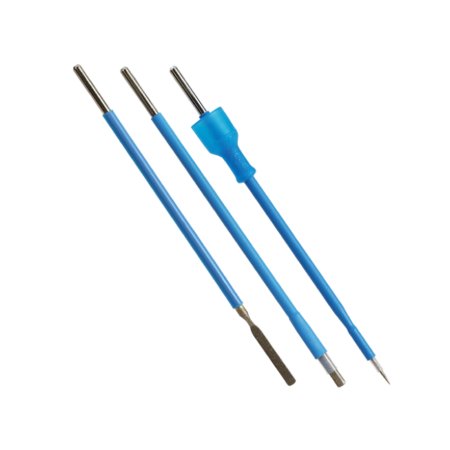

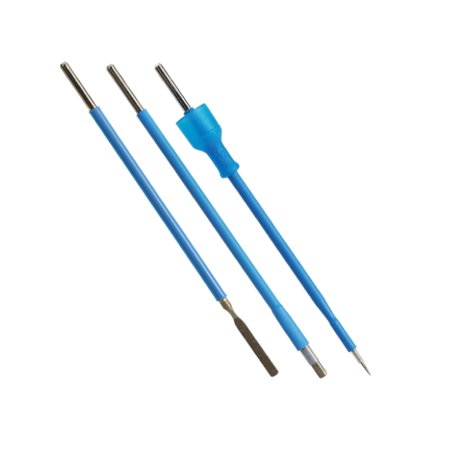

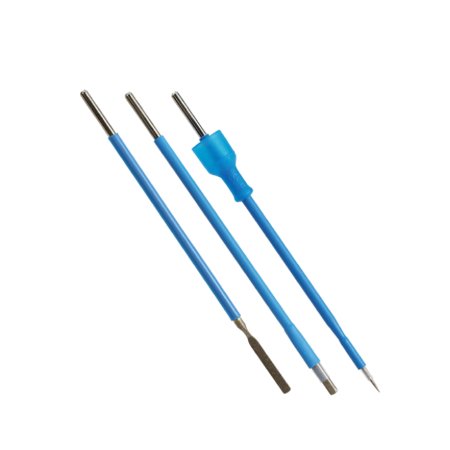

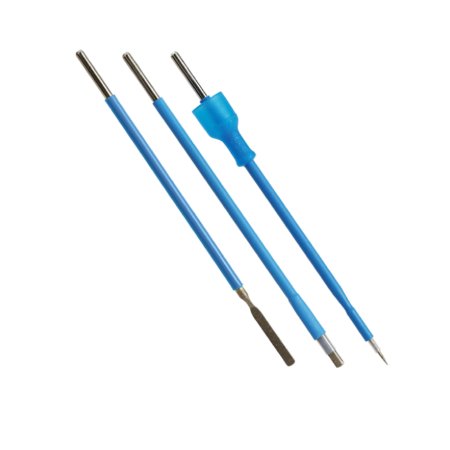

- Electrode Types: High-performance Coated Blade and Coated Needle electrodes.
- Insulation: Available in standard coated or specialized PTFE Insulated variants.
- Lengths: Configurations include standard lengths and extended options up to 16.51cm (6
inches). - Compatibility: They utilize a standard 0.24cm (3/32 inch) shaft diameter compatible with various Valleylab Handswitching and Hex-Locking pencils.
Do these electrodes include PTFE insulation options?
Yes, the Medtronic Valleylab Edge Coated Electrodes are offered in PTFE Insulated configurations, in addition to standard coated options. This feature is crucial for safety and control.
Choosing the PTFE insulation provides several advantages:
- Enhanced Safety and Precision: The insulation covers the electrode shaft, limiting the active surface area and improving control during electrosurgical procedures.
- Wide Availability: PTFE insulated options are available for both Blade and Needle electrode types, as well as various standard and extended lengths, ensuring compatibility for diverse surgical needs.
Are PTFE-insulated electrodes available?
Yes, PTFE (Polytetrafluoroethylene) insulated options are available within the Medtronic Valleylab Edge Coated Electrodes product line.
PTFE insulation offers several benefits for precise surgical work:
- Enhanced Safety and Precision: The insulation helps to focus energy delivery efficiently for targeted cutting and coagulation.
- Variety: PTFE insulated electrodes are available in multiple configurations, including both blade and needle types, to meet various procedural requirements.
- Durability: The design ensures that even the insulated electrodes are durable and maintain the integrity of their specialized coating, including the PTFE layer, even when subject to bending.
