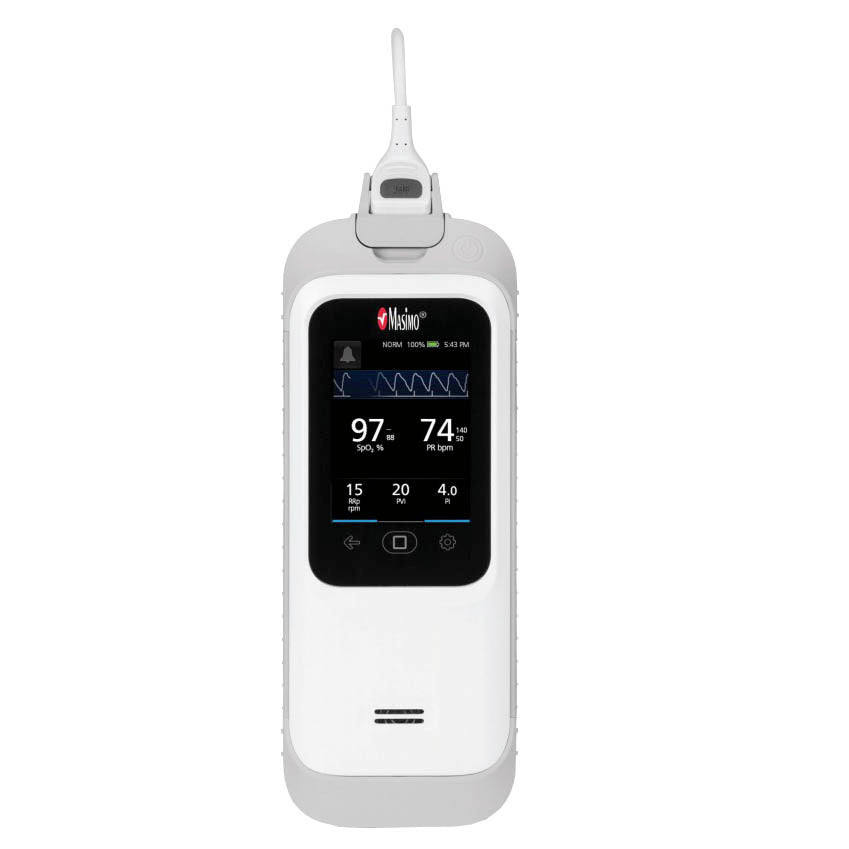

Masimo Rad-G Pulse Oximeter

The Masimo Rad-G Pulse Oximeter (#9847) includes rechargeable battery and Rad-G Reusable Sensor (#43250).

Warranty: 1 Year.

The Masimo Rad-G Pulse Oximeter is a rugged, portable, handheld pulse oximetry device indicated for monitoring both adult and pediatric patients. It provides SET pulse oximetry, respiration rate from the pleth, and other vital parameters for both spot-checking and continuous monitoring.

The Masimo Rad-G Pulse Oximeter features a universal sensor that provides a one-sensor solution for most patients, from infants to adults. By eliminating the need to stock and carry multiple sensor types, the Rad-G Sensor further increases Rad-G’s versatility and ease of use, especially in more challenging field environments. In addition to this innovative new sensor, Rad-G is compatible with the vast portfolio of Masimo reusable and single-patient-use sensors, maximizing its flexibility and offering clinicians the ability to customize the solution based on the unique needs of each care setting.

Masimo Rad-G Pulse Oximeter Features

• Strong external casing built to withstand drops from 6 ft. onto a hard surface.
• Lightweight, small profile allows for easy transport and storage.
• Internal rechargeable battery provides 24 hours of operational use, with the ability to use while charging.
• On-screen animations with music help distract pediatric patients and minimize motion during measurement.
• Hospital-grade Masimo SET Measure-through Motion and Low Perfusion pulse oximetry.
• Display of pleth waveform for additional information to use in patient assessment.
• Configurable alarms to offer insight into patient status changes that may require intervention.
• Universal sensor provides a one-sensor solution for most patients, from infants to adults.

Masimo Rad-G Pulse Oximeter Specifications

• Accuracy:
  • Oxygen Saturation (%SpO2): 70 to 100%.
    • No Motion Adults/Pediatrics/Infants: 2%.
    • Motion Adults/Pediatrics/Intants: 3%.
    • Low Perfusion Adults/Pediatrics/Infants: 2%.
  • Pulse Rate (PR): 25 to 240 bpm.
    • No Motion Adults/Pediatrics/Infants: 3 bpm.
    • Motion Adults/Pediatrics/Infants: 5 bpm.
    • Low Perfusion Adults/Pediatrics/Infants: 3 bpm.
  • Respiration Rate (RRP): 4 to 90 rpm.
  • RRp Accuracy: 1 rpm.
• Weight: 0.27 kg (0.59 lb).
• Dimensions: 7.4 cm x 19.8 cm x 2.5 cm (2.9" x 7.8" x 1").
• Operating Temperature (While Battery is Charging): 0 to 40 degrees C (32 to 104 degrees F).
• Operating Temperature (While Battery is NOT Charging): 0 to 50 degrees C (32 to 122 degrees F).
• Battery Type: Lithium Ion.
• Capacity: 24 hours.

Masimo Rad-G Pulse Oximeter Literature

Masimo Rad-G Pulse Oximeter Brochure

Masimo Rad-G Pulse Oximeter Operator's Manual
