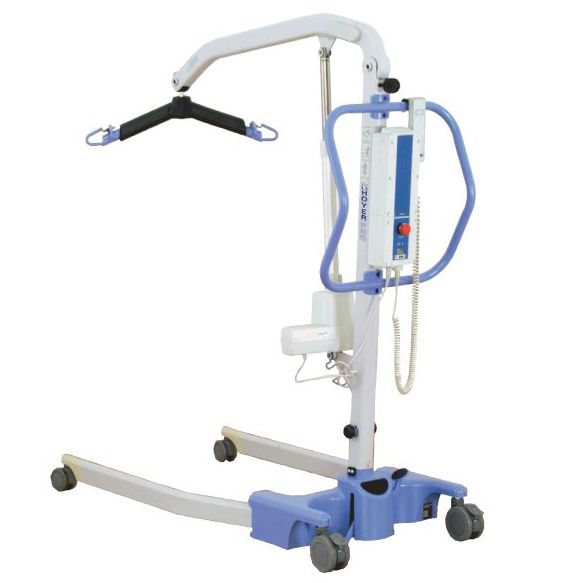

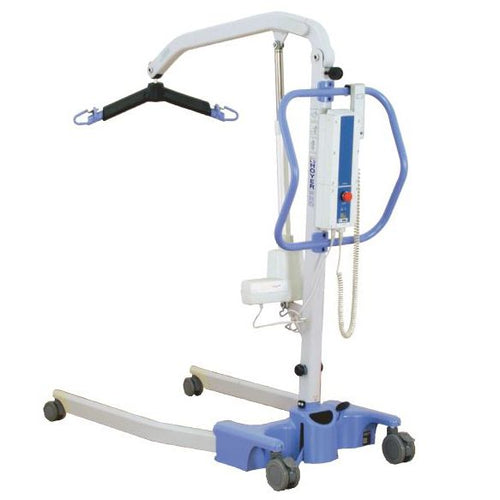

Joerns Hoyer Advance Portable Patient Lift

Name: Joerns Hoyer Advance Portable Patient Lift
Brand: Joerns
SKU: JRN-HOY-ADVANCE-E
Price: 4059.0 USD
Availability: InStock
Rating: 5.0 (1 reviews)

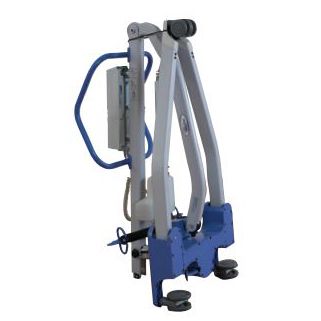

Joerns Hoyer Advance Portable Patient Lift - Folded

Joerns Hoyer Advance Portable Patient...

PRODUCT DEMO | Hoyer Advance

Key Features

SKU: JRN-HOY-ADVANCE-E
Condition: Factory New
Country of Origin: USA
Warranty: 2 Years
Compact triangle design allows for standing storage without falling over
Large handle makes it easy to grasp and maneuver the unit
Low profile base slides easily under beds and furniture
Safe Working Load: 341 lb (155 kg)
Learn more:

Contact The Manufacturer

MFR: Joerns Ships from Manufacturer

Items shipped from the manufacturer

This item will be shipped directly from the manufacturer to your doorstep, ensuring that you receive the newest product available. The estimated delivery range provided is based on the manufacturer's inventory levels and is subject to change depending on the quantity ordered. We ship items as soon as they become available, so if you order multiple quantities, you may receive them in separate shipments.

Special order item

A special order item will need to ship to our warehouse from the manufacturer before then shipping to you. The estimated delivery range that you see is based on the information that we receive from the manufacturer, which is also contingent upon your ordered quantity and the current inventory levels of the manufacturer. We will ship the items to you as soon as they become available, which may result in multiple shipments if you order more than one quantity.
MPN: HOY-ADVANCE-E
Phone: (800) 826-0270

$4,059.00

Est. Delivery:

Quantity

Earn [points_amount] when you buy this item.

Shop with Confidence

Description

The Joerns Hoyer Advance Portable Patient Lift (#HOY-ADVANCE-E) includes a battery.

Warranty:

2 Years - Defects in Material and Workmanship (mechanical and electrical components).
Lifetime (welds and aluminum structural components).
90 Days (parts such as the battery and casters).

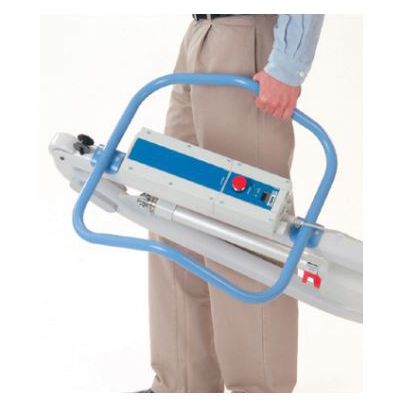

The Advance Portable Patient Lift is incredibly versatile, thanks to it's folding, collapsible design. It can be easily carried between rooms or stowed away in its compact form. With the triangle design, the compact form can stand stable and unaided while being stored or moved around. The mounted oversize handle makes it easy for users to transport the unit, as well as maneuver it while in use. This lift can also be taken outdoors, to help patients in and out of vehicles and the like. It should be noted that it's difficult to steer.

The unit is tapered in design with a low profile base that makes it easy to slide under beds, wheelchairs, and other furniture. The base also comes with a footpad, which makes it easy to shift the unit with your feet.

Features

Joerns Hoyer Advance Portable Patient Lift Features

Lightweight, aluminum construction.
Can be collapsed into handheld, portable mode.
Compact triangle design allows for standing storage without falling over.
Large handle makes it easy to grasp and maneuver the unit.
Intuitive push pad assists with initiation movement.
Swan neck style legs allow the Advance to get closer to the resident.
Low profile base slides easily under beds and furniture.
Tested to EN ISO 10535, the global standard for patient lifts.

Specifications

Joerns Hoyer Advance Portable Patient Lift Specifications

Weight: 69.7 lb (31.7 kg).
Safe Working Load: 341 lb (155 kg).
Maximum Overall Length: 51.2" (1300 mm).
Minimum Overall Length: 49.2" (1250 mm).
Maximum Overall Height: 73.2" (1860 mm).
Minimum Overall Height: 53.5" (1360 mm).
Folded Height: 17.7" (450 mm).
Folded Depth: 46.5" (1180 mm).
Folded Width: 21.7" (550 mm).
Spreader Bar Max. Height: 66.5" (1690 mm).
Spreader Bar Min. Height (usable): 15.4" (390 mm).
Height at Maximum Reach: 46.1" (1170 mm).
Reach at Maximum Height: 25.6" (650 mm).
Reach at Minimum Height: 13.8" (350 mm).
Maximum Reach: 32.9" (835 mm).
Turning Radius: 55.9" (1420 mm).
Legs Open - Internal Width: 39.4" (1000 mm).
Legs Closed - External Width: 26.4" (670 mm).
Overall Height of Legs: 4.5" (115 mm).
Ground Clearance: 1.2" (30 mm).
Front Twin Casters: 3.0" (75 mm).
Rear Braked Casters: 4.0" (100 mm).

Electric Shock Protection:

Charger: Class II.
Lift: Internal power source.

Degree of Shock Protection:

Charger: Type B.
Lift: Type B.
Intended Operating Environment: 5 to 40 °C (outside this environment, functionality and safety may be compromised).

Electrical:

Battery: 24 vDC rechargeable sealed lead acid type.
Battery Capacity: 3.2 A Ampere hours.
Charger Rated Input: 100 to 240 V AC 24 VDC 50/60 Hz.
Charger Rated Output: 29.5 VDC, Max. 19 W.

Accessories

Joerns Hoyer Advance Portable Patient Lift Accessories

The following slings are compatible with the Hoyer Advance Portable Patient Lift (please note these are NOT included with purchase of the lift, and are sold separately):

Hoyer Professional Full Back Sling.
Hoyer Professional Quickfit Sling.
Hoyer Professional Quickfit Deluxe Sling.
Hoyer Professional Access Sling.
Hoyer Professional Standing Harness Sling.
Hoyer Professional Long Seat Sling.

Literature

Joerns Hoyer Advance Portable Patient Lift Literature

Joerns Hoyer Family Brochure

Joerns Hoyer Loop Style Sling Color/Size Chart

Joerns Hoyer Advance Parts Manual

Joerns Hoyer Advance User Instruction Manual
