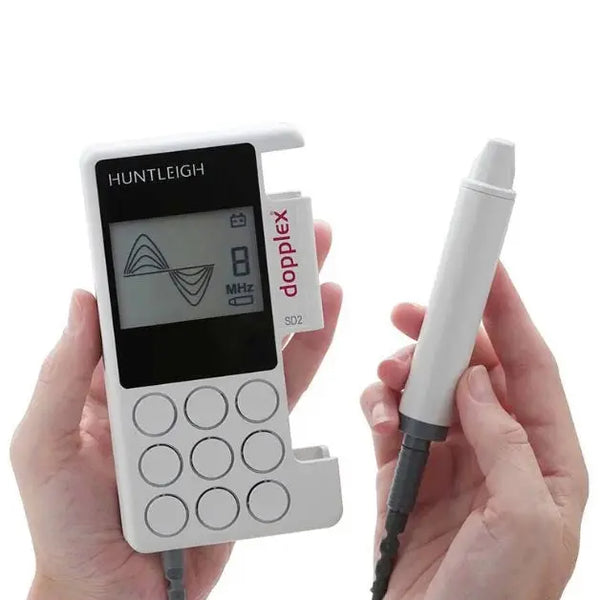

Huntleigh Dopplex SD2 Bi-Directional Doppler

Huntleigh Dopplex SD2 Bi-Directional Doppler

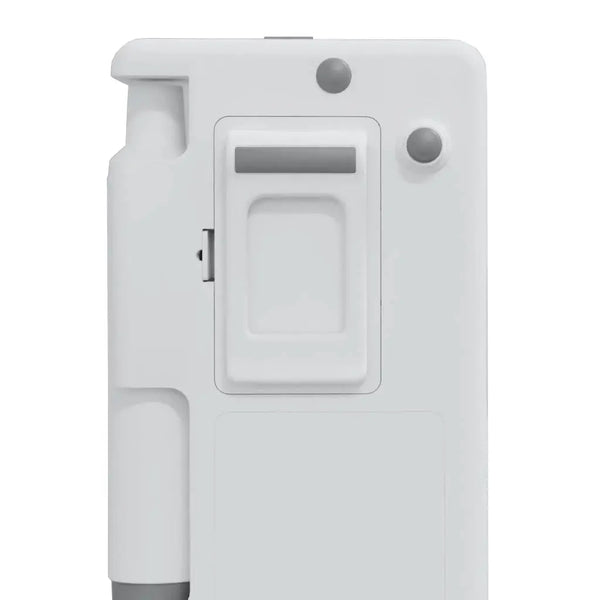

Huntleigh Dopplex SD2 Bi-Directional Doppler - Back
Huntleigh Dopplex SD2 Bi-Directional Doppler - Size Comparison
Huntleigh Dopplex SD2 Bi-Directional Doppler
Huntleigh Dopplex SD2 Bi-Directional Doppler - Back
Huntleigh Dopplex SD2 Bi-Directional Doppler - Size Comparison
Key Features
  • SKU: AJH-SD2-P-USA
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: 5 Years
  • Weight: 0.62 lb

  • Learn more:

Contact The Manufacturer
  • MFR: ArjoHuntleigh
    Ships from Manufacturer
  • MPN: SD2-P-USA
  • Phone: (800) 323-1245
$925.00 $854.00

+ Free Shipping

Est. Delivery:
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

The Huntleigh Dopplex SD2 Bi-Directional Doppler includes a probe of your choice, stereo headphones, gel, alkaline battery (9 V), soft carry bag, and user manual.

Warranty: 5 Years.

The Dopplex SD2 provides bi-directional vascular information to the vascular professional including the display of flow direction. It is ideal for clinical specialists wishing to conduct advanced Doppler studies.

Features

Huntleigh Dopplex SD2 Bi-Directional Doppler Features

  • Compatible with all high sensitivity vascular probes (audio only with OP2 and OP3).
  • Ideal for ABPI assessment.
  • Provides bi-directional blood flow information.
  • Enhanced stereo audio output.
  • Range of probe options with probe coding.
  • Built-in loudspeaker.
  • Output for headphones.
  • Enhanced bi-directional LCD display.
  • Gain control.
  • Auto shut off.
  • Active noise reduction.
  • Obstetric capability.
  • Battery Life: 250 minutes.
  • Pole stand capability.
  • Integrated probe protection and storage.
  • Belt clip.
  • Rechargeable battery option.
  • Neck cord option.

Specifications

Huntleigh Dopplex SD2 Bi-Directional Doppler Specifications

  • Weight: 295 grams (10 ounces) with battery and probe.
  • Dimensions: 5.5" (H) x 2.9" (W) x 1.1" (D) (140 mm x 74 mm x 27 mm).

Probes

Huntleigh Dopplex SD2 Bi-Directional Doppler Probes

  • #SD2-P-USA: No Probe (Doppler only).
  • #LUS-SD2-P-OP2KIT: 2 MHz Obstetric Probe for fetal heart detection.
  • #LUS-SD2-P-OP3KIT: 3 MHz Obstetric Probe for fetal heart detection in early gestation. 3 MHz is the recommended standard for obstetrical applications.
  • #LUS-SD2-P-VP4KIT: 4 MHz Vascular Probe for detection of deep lying vessels.
  • #LUS-SD2-P-VP5KIT: 5 MHz Vascular Probe for oedematous limbs and deep lying vessels. Ideal adjunct to the EZ8 Probe for ABI measurements.
  • #LUS-SD2-P-VP8KIT: 8 MHz Vascular Probe for the detection of peripheral vessels and calcified arteries. 8 MHz is the recommended standard for vascular applications.
  • #LUS-SD2-P-EZ8KIT: 8 MHz Widebeam Vascular Probe for easy location of vessels. The high sensitivity widebeam makes it easier to maintain vessel contact during inflation and deflation.
  • #LUS-SD2-P-VP10KIT: 10 MHz Vascular Probe for detection of smaller superficial vessels.
  • #LUS-ISP3-SD2KIT (Intraoperative Probe Starter Pack): Starter Pack includes three intraoperative probes, probe pod, and IV pole clamp. The reusable Dopplex intraoperative probe can be used to immediately confirm blood flow prior to closing, saving time and costs of a potential re-operation. The high sensitivity probes can be re-sterilized by autoclave, ethylene oxide, or Steris System 1.

Frequently asked questions

What high-sensitivity probes are compatible with the Dopplex SD2?

The Huntleigh Dopplex SD2 is compatible with a wide array of specialized high-sensitivity vascular and obstetric probes, ensuring versatility for different diagnostic needs. The device also supports specialized kits like the Intraoperative Probe Starter Pack.

Probe options range from 2 MHz up to 10 MHz, including:

  • Obstetric Probes: 2 MHz and 3 MHz (recommended for fetal heart detection).
  • Vascular Probes: 4 MHz, 5 MHz, 8 MHz (the recommended standard for peripheral vessels), 8 MHz Widebeam (for high sensitivity and easier vessel location), and 10 MHz (for smaller superficial vessels).

Note on Functionality: While compatible with all high-sensitivity probes, the device provides audio output only when used with the OP2 and OP3 probes.

Is the Huntleigh Dopplex SD2 suitable for ABPI (Ankle Brachial Pressure Index) assessment?

The Huntleigh Dopplex SD2 is particularly well-suited for Ankle Brachial Pressure Index (ABPI) assessments, providing critical data on vascular health.

What is included with the Huntleigh Dopplex SD2?

The Huntleigh Dopplex SD2 Bi-Directional Doppler comes with everything you need for immediate use, including:

  • The Dopplex SD2 unit itself
  • A probe of your choice (selected during purchase)
  • Stereo headphones for clear audio
  • Gel for optimal signal transmission
  • An alkaline 9V battery
  • A soft carry bag for portability
  • A user manual for guidance
Does the Huntleigh Dopplex SD2 provide bi-directional blood flow information?

Yes, the Huntleigh Dopplex SD2 provides bi-directional blood flow information, which is displayed on its enhanced LCD screen, allowing for detailed vascular analysis.

What are the audio output options for the Huntleigh Dopplex SD2?

The Dopplex SD2 enhances audio output with stereo sound and a built-in loudspeaker. It also has a headphone output for private listening.

What additional features does the Huntleigh Dopplex SD2 include?

The Huntleigh Dopplex SD2 is equipped with several user-friendly features:

  • Gain Control: Adjust audio sensitivity.
  • Auto Shut Off: Conserves battery life.
  • Active Noise Reduction: Minimizes interference for clear sound.
Can the Huntleigh Dopplex SD2 be used for obstetric purposes?

Yes, the Huntleigh Dopplex SD2 can be used for obstetric applications. Probes are available to support this.

What is the weight of the Huntleigh Dopplex SD2?

The Huntleigh Dopplex SD2 weighs 295 grams (10 ounces) with the battery and probe attached, making it lightweight and easy to carry.

What is the battery life of the Huntleigh Dopplex SD2?

The Huntleigh Dopplex SD2 has a battery life of 250 minutes.

Is the Dopplex highly portable?

Yes, the Huntleigh Dopplex SD2 is engineered for portability and designed for demanding clinical environments. It is both compact and lightweight.

Key portability features include:

  • Low Weight: The unit weighs only 295 grams (10 ounces) with the battery and probe.
  • Secure Design: Features integrated probe protection and storage.
  • Easy Transport: Includes a belt clip for immediate access and a soft carry bag for comprehensive transport.
