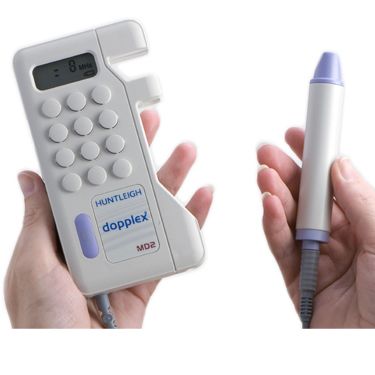

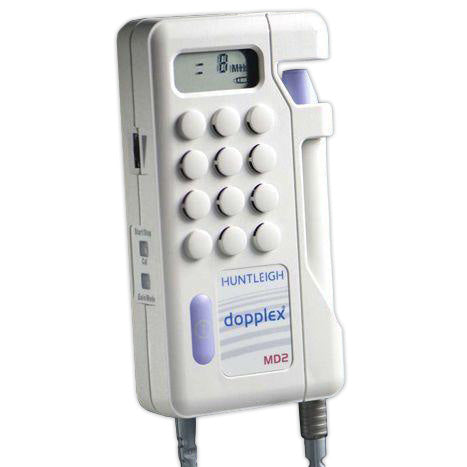

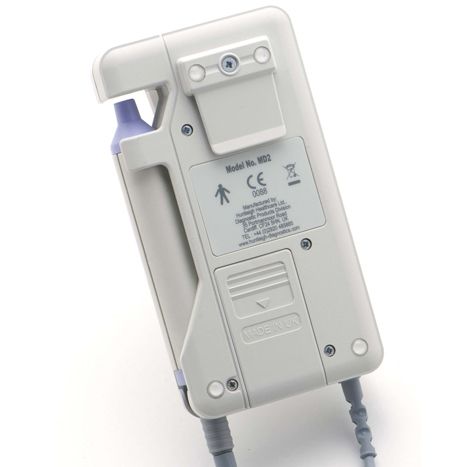

Huntleigh Dopplex MD2 Bi-Directional Doppler

The Huntleigh Dopplex MD2 Bi-Directional Doppler unit comes with a standard set of accessories required for immediate functionality and transport. Note that the specific high-sensitivity probe (e.g., 8 MHz Vascular) is selected based on your chosen configuration and is included with that selection.

The standard included accessories are:

• Large/Soft Carry Bag: A spacious bag designed to accommodate the MD2 unit, probe, and additional components like sphygmomanometers and cuffs.
• Stereo Headphones: Provides true separated stereo output for enhanced audio assessment.
• Alkaline Battery (9 V): Included to power the device immediately.
• Conductive Gel: For optimal probe performance.
• User Manual: Instructions for device operation.

Yes, the Huntleigh Dopplex MD2 Bi-Directional Doppler complies with essential international safety standards, ensuring safe and reliable operation in clinical settings.The unit meets the requirements of the following safety standards:

• EN60601-1:1990
• IEC 60601 - 1:1988
• EN60601-1-2:1993

Yes, the Huntleigh Dopplex MD2 offers exceptional probe versatility, connecting with all of Huntleigh’s high-sensitivity probes across a wide range of frequencies, from 2 MHz up to 10 MHz.

This compatibility allows the device to be used for diverse clinical applications, including advanced vascular assessment (PAD, diabetic foot, venous studies) and basic obstetric monitoring.

Probe Compatibility Features

• Supported Frequencies: The MD2 is compatible with 2, 3, 4, 5, 8, and 10 MHz probes.
• Automatic Recognition: The unit includes probe coding capability, which automatically recognizes the frequency of the connected probe for seamless, simplified operation.

Yes, the Huntleigh Dopplex MD2 is an advanced pocket doppler system designed specifically for high-level vascular assessment.

It is highly effective for evaluating:

• Peripheral Arterial Disease (PAD)
• Diabetic foot conditions
• Venous applications

The MD2 provides superior diagnostic capability through its key features:

• Bi-Directional Flow: It provides quality bi-directional blood flow information, which is displayed visually on the enhanced LCD screen.
• Probe Versatility: The unit is compatible with a wide range of high-sensitivity vascular probes (4, 5, 8, and 10 MHz) and features automatic probe coding.
• Reporting: The MD2 features a digital interface that allows for seamless integration with the Dopplex Printa 2 or Dopplex Reporter Software to generate detailed waveform documentation.

Yes, the Dopplex MD2 features a digital interface designed to enhance reporting and documentation capabilities.

This interface allows seamless connection to external systems:

• Dopplex Reporter Software Package (DR3): Used for advanced data logging and comprehensive reporting when connected to a computer.
• Dopplex Printa (Printa 2): Used for printing documentation directly.

Yes, the Dopplex MD2 is designed for reliable performance during vascular assessments, offering over four hours of continuous use.

Key features related to power and battery management include:

• Operational Battery Life: The device provides up to 250 minutes of continuous operational battery life.
• Power Management: It features an integral battery management system and an active auto shut-off function to help conserve power.
• Battery Type: The unit operates using a standard 9V alkaline battery, which is included with the purchase.

Yes, the Huntleigh Dopplex MD2 features active noise reduction to ensure you get clear and precise audio during examinations.

Yes, the Huntleigh Dopplex MD2 is designed to be highly portable and ideal for clinical and field use.

Here are the details on its compact design and operational readiness:

• Lightweight: The unit, including the battery and probe, weighs only 295 grams (10 ounces).
• Compact Dimensions: The main unit measures 5.5” (H) x 2.9” (W) x 1.1” (D), making it easily pocketable.
• Extended Use: The integral battery management provides up to 250 minutes of continuous operation.
• Accessories: It comes standard with a large, soft carry bag that can hold the unit, headphones, and potentially extra items like a sphygmomanometer and cuffs.

Yes, the Huntleigh Dopplex MD2 is highly versatile, supporting comprehensive assessments for both vascular and obstetric applications by connecting to all high-sensitivity probes (2, 3, 4, 5, 8, and 10 MHz).

Key capabilities include:

• Vascular Assessment: The primary function, ideal for detecting peripheral arterial disease, diabetic foot conditions, and venous applications. It provides bi-directional blood flow information via the enhanced LCD display.
• Obstetric Assessment: When used with an appropriate obstetric probe (2 or 3 MHz), the device supports audio-only capability for fetal heart rate (FHR) detection. Note that the FHR is not displayed visually on the LCD screen.

This versatility is ensured by the unit’s automatic probe coding feature, which correctly configures the system for the connected probe.

The Huntleigh Dopplex MD2 is a sophisticated, bi-directional pocket Doppler system engineered for detailed, high-level peripheral circulation diagnostics. It provides quality bi-directional blood flow information essential for advanced assessment.

Key specialized clinical applications include:

• Peripheral Arterial Disease (PAD): Provides crucial data for detecting and monitoring arterial flow complications.
• Diabetic Foot Conditions: Used for early evaluation and monitoring of circulation in diabetic limbs.
• General Venous Applications: Aids in the assessment of venous blood flow characteristics.

Furthermore, the MD2 has audio-only obstetric capability for detecting the fetal heart rate when equipped with a 2 MHz or 3 MHz obstetric probe. Its versatility is ensured by compatibility with all high-sensitivity probes ranging from 2 MHz to 10 MHz.
