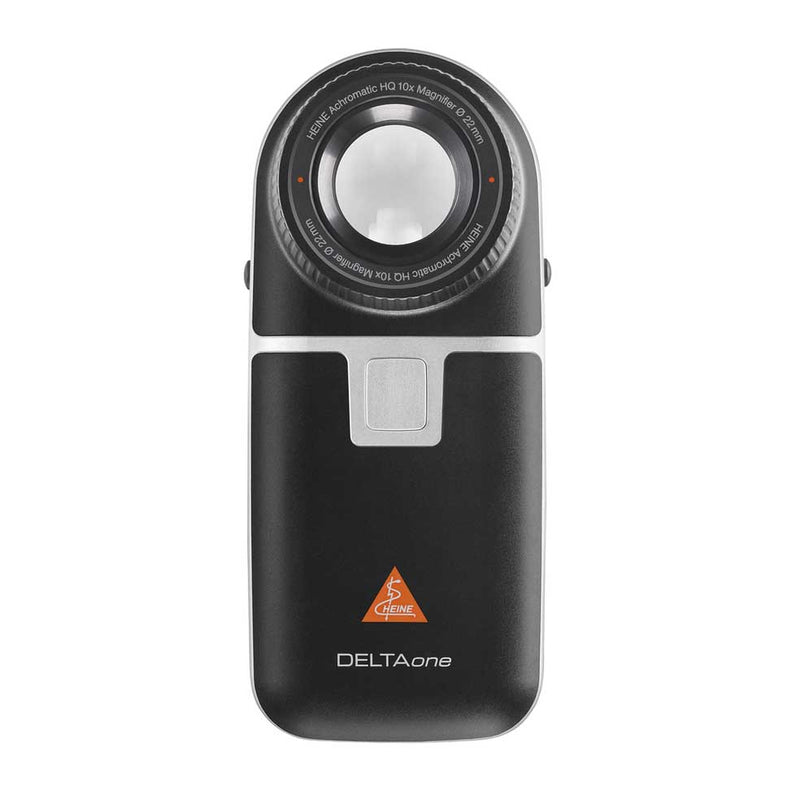

HEINE DELTAone Dermatoscope

HEINE DELTAone Dermatoscope
Key Features
  • SKU: HNE-K-210-28-305
  • Condition:
    Condition: Factory New
  • Country of Origin: Germany
  • Warranty:
    Warranty: 1 Year
  • Extremely sharp image with the new achromatic HEINE optical system
  • Fast change from contact to non-contact examination
  • True field of view of 21 mm (lens 22 mm)
  • 10x magnification

  • Learn more:

Contact The Manufacturer
  • MFR: Heine
    Ships from MFI Medical
  • MPN: K-210.28.305
  • Phone: (603) 742-7103
$1,305.70 $1,206.52

+ Free Shipping

Select a Color

Special Order Item

Est. Delivery:
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

The HEINE DELTAone Dermatoscope Complete is a pocket sized visual aid device that is used to examine skin.

Warranty: 1 Year - Parts and Labor.

The HEINE DELTAone Dermatoscope Complete offers an extremely sharp image with excellent color rendering. It fits into any pocket and offers excellent color rendering due to LED HQ.

Features

HEINE DELTAone Dermatoscope Complete Features

  • Fits into any pocket.
  • Extremely sharp image with the new achromatic HEINE optical system.
  • Digital documentation with the exclusive HEINE DERM app or the HEINE Cube System.
  • Polarisation eliminates reflections and glare.
  • Fast change from contact to non-contact examination.
  • Crystal clear image, no matter if you prefer a closer or greater working distance.
  • True field of view of 21 mm (lens 22 mm).
  • Easily cleaned with spray disinfectant.
  • 10x magnification.
  • No cross-contamination: autoclavable contact plate with scale.
  • Dioptre compensation.
  • Switch between polarized and non-polarized light at the touch of a button.
  • Rechargeable battery with Li-ion technology: no memory effect; you can safely recharge the battery regardless of its charge state.
  • Small contact plate for difficult-to-access pigmented lesions.
  • 3 possibilities for digital documentation: HEINE DERM app (Bodymap, patient folder, e-mail function, and more), wirelessly with the HEINE Cube System (allows up to 10 physicians and HEINE Dermatoscopes), and with conventional digital images using many popular smartphones.

Specifications

HEINE DELTAone Dermatoscope Complete Specifications

  • Dimensions: 128 mm x 57 mm x 40 mm.
  • Connections: Micro USB port, mounting for mounting case smartphone.
  • Imprints: Instrument: product name, HEINE logo, CE, production date, serial number, www.heine.com, data matrix code, symbols, power supply, optics specification.
  • Protection Class: IP20.
  • Brightness Control: 3 levels of light intensity.
  • Power Supply: Li-ion Cell (internal battery).
  • Input: USB 2.0 Micro B: 5 V DC, 650 mA.
  • Power Consumption: Max. 3.25 W.
  • Operating Time with Max. Energy Consumption: Typ. 80 min.
  • Operating Time with Min. Energy Consumption: Typ. 460 min.
  • Average Working Time Before Charging: 5 Days.
  • Charging Time: USB: typ. 75 min.
  • Safety Class: Charging: II; Operating: internally powered.
  • Optical Type: HEINE LED Illumination (HQ).
  • Magnification: 10-fold.
  • Diopter: -4 to +4 dpt.
  • Optical System: Achromatic System, 3 Elements.
  • Illuminance: Typ. greater than 17,000 lx in 15 mm distance without contact plate.
  • Color Temperature: Typ. 5,700 K.
  • Color Rendering Index (CRI): Typ. greater than or equal to 90.
  • Medium Life Expectancy (LED): Typ. greater than 50,000 h.
  • Lense Diameter: 22 mm.
  • Antireflection Coating:
    • Loupe optics multilayer coating R less than 0.5% per optical surface.
    • Contact plate inside surface multilayer coating R less than 0.5%, outside surface no coating.
    • Polarisation plate inner/outer side no coating.
  • Working Distance: 15 mm distance in non-contact mode, contact to skin in contact mode.
  • Contact/Non-Contact Mode: Can be used in contact and non-contact mode.
  • Resolution: 40 LP/mm in image center with 80% contrast at 50 mm observation distance.
  • Classification According to IEC 62471: Group I.
  • Operating System: Requires iOS 12 or later.
  • Updates: Software updates are distributed via app store and must be installed as soon as they are available.
  • Image Format: PNG, JPEG.
  • Special Features: aCapture, management and classification of dermatoscopic images, patient management, skin cancer screening assistant, image sharing, and autofocus.
  • Hygienic Reprocessing Procedure: Housing can be cleaned and disinfected manually (wipe clean and wipe disinfect).
  • Environmental Conditions Operation: +10 degrees C to +35 degrees C, 30% to 75% rel. humidity, 700 hPa to 1060 hPa.
  • Environmental Conditions Storage: +5 degrees C to +45 degrees C, 45% to 80% rel. humidity, 500 hPa to 1060 hPa.
  • Environmental Conditions Transport: -20 degrees C to +50 degrees C, 45% to 80% rel. humidity, 500 hPa to 1060 hPa.

Frequently asked questions

Is the HEINE DELTAone Dermatoscope compatible with any digital documentation systems?

Yes, the HEINE DELTAone Dermatoscope is compatible with the HEINE DERM app and Cube System for efficient digital record-keeping, image capture, management, and sharing.

Can the HEINE DELTAone Dermatoscope be used for both contact and non-contact examinations?

Yes, the HEINE DELTAone Dermatoscope can be used in both contact and non-contact modes, offering versatility for different examination techniques.

What is the typical operating time of the HEINE DELTAone Dermatoscope on a full charge?

The HEINE DELTAone Dermatoscope has a typical operating time of 80 minutes at maximum energy consumption and 460 minutes at minimum energy consumption on a full charge.

What is the warranty period for the HEINE DELTAone Dermatoscope?

The HEINE DELTAone Dermatoscope comes with a 1-year warranty.

How do I clean and disinfect the HEINE DELTAone Dermatoscope?

The housing of the HEINE DELTAone Dermatoscope can be cleaned and disinfected manually by wiping it clean and using a wipe disinfectant. The contact plate is autoclavable to prevent cross-contamination.

What magnification does the HEINE DELTAone Dermatoscope offer?

The HEINE DELTAone Dermatoscope offers a 10x magnification, providing a detailed view for skin examinations.

What is the field of view provided by the HEINE DELTAone Dermatoscope?

The HEINE DELTAone Dermatoscope offers a true field of view of 21 mm with a lens diameter of 22 mm.

What type of light source does the HEINE DELTAone Dermatoscope use?

The HEINE DELTAone Dermatoscope uses HEINE LED Illumination (HQ), providing high-quality lighting for clear visualization.

What is the charging time for the HEINE DELTAone Dermatoscope?

The charging time for the HEINE DELTAone Dermatoscope is typically 75 minutes via USB.

What operating systems are compatible with the HEINE DERM app?

The HEINE DERM app requires iOS 12 or later.
