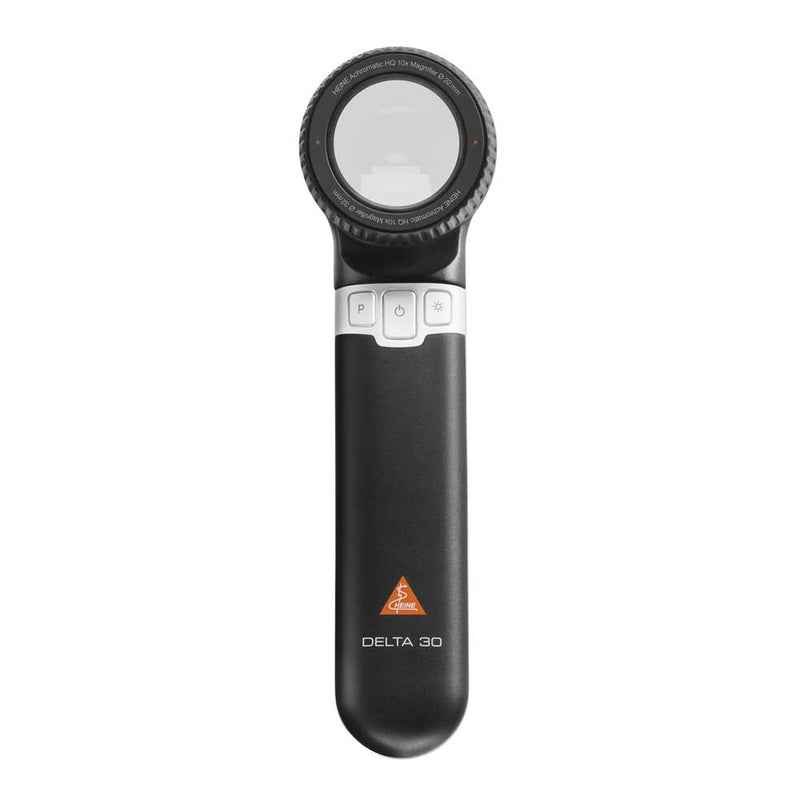

HEINE DELTA 30 Dermatoscope

HEINE DELTA 30 Dermatoscope Features

• Largest true field of view of 30 mm (lens 32 mm).
• Extremely sharp image with the new achromatic HEINE optical system.
• Ergonomic handling due to angled product design.
• Excellent color rendering due to LED HQ.
• Digital documentation with the exclusive HEINE DERM app or the HEINE Cube System.
• Fast change from contact to non-contact examination.
• Crystal clear image, no matter if you prefer a closer or greater working distance.
• Polarization eliminates reflections and glare.
• Brightness Control: 3 levels of light intensity.
• Easily cleaned with spray disinfectant.
• 10x magnification.
• No cross-contamination: Autoclavable contact plate with scale.
• Dioptre compensation.
• Switch between polarized and non-polarized illumination made at the touch of a button = toggle function.
• Rechargeable battery with Li-ion technology: no memory effect; safely recharge the battery regardless of its state of charge.
• Small contact plate for difficult-to-access pigmented lesions.
• Table charging station Charger 30.
• 3 possibilities of digital documentation:
  • HEINE DERM App: Bodymap, patient folder, e-mail function, and more.
  • HEINE Cube System: Wireless documentation for up to 10 doctors and HEINE dermatoscopes.
  • Conventional digital images with many popular smartphones.

HEINE DELTA 30 Dermatoscope Specifications

• Dimensions: 195 mm x 55 mm x 70 mm.
• Connections:
  • Micro USB port, mounting for mounting case smartphone.
  • Connection to Charger 30 table charging station.
• Imprints: Instrument: product name, HEINE logo, CE, production date, serial number, www.heine.com, data matrix code, symbols, power supply, optics specification.
• Protection Class: IP20.
• Power Supply: Li-ion Cell (internal battery).
• Input:
  • USB 2.0 Micro B: 5 V DC, 1.2 A.
  • Charger 30 Table Charging Station: See charger datasheet.
• Power Consumption: Max. 6 W.
• Operating Time with Max. Energy Consumption: Typ. 160 min.
• Operating Time with Min. Energy Consumption: Typ. 640 min.
• Avg. Working Time Before Charging: 6 Days.
• Charging Time:
  • USB: Typ. 120 min.
  • Charger 30 Table Charging Station: Typ. 120 min.
• Safety Class: Charging: II; Operating: Internally powered.
• Optical Type: HEINE LED illumination (HQ).
• Magnification: 10-fold.
• Diopter: -4 to +4 dpt.
• Optical System: Achromatic System, 3 Elements.
• Illuminance: Typ. greater than 25,000 lx in 15 mm distance without contact plate.
• Color Temperature: Typ. greater than 5,700 K.
• Color Rendering Index (CRI): Typ. greater than or equal to 90.
• Medium Life Expectancy (LED): Typ. greater than 50,000 h.
• Lense Diameter: 32 mm.
• Antireflection Coating:
  • Loupe optics multilayer coating R less than 0.5% per optical surface.
  • Contact plate inside surface multilayer coating R less than 0.5% per optical surface.
  • Polarisation plate inner / outer side no coating.
• Working Distance: 15 mm distance in non-contact mode, contact to skin in contact mode.
• Contact/Non-Contact Mode: Can be used in contact and non-contact mode.
• Resolution: 40 LP/mm in image center with 80% contrast at 50 mm observation distance.
• Classification According to IEC 62471: Group 1.
• Operating System: Requires iOS 12 or later.
• Updates: Software updates are distributed via App Store and must be installed as soon as they are available.
• Image Format: PNG, JPEG.
• Special Features: aCapture, management and classification of dermatoscopic images, patient management, skin cancer screening assistant, image.
• Environmental Conditions Operation: +10 degrees C to +35 degrees C, 30% to 75% rel. humidity, 700 hPa to 1060 hPa.
• Environmental Conditions Storage: +5 degrees C to _45 degrees C, 45% to 80% rel.humidity, 500 hPa to 1060 hPa.
• Environmental Conditions Transport: -20 degrees C to +50 degrees C, 45% to 80% rel. humidity, 500 hPa to 1060 hPa.
• Hygienic Reprocessing Procedure: Housing can be cleaned and disinfected manually (wipe clean and wipe disinfect).
