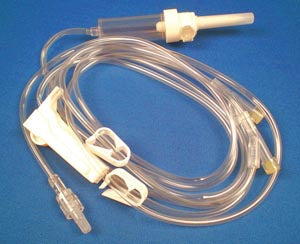

Exel Corporation Exel Iv Administration Sets

Yes, these IV administration sets are manufactured under stringent safety standards to ensure patient safety and meet critical medical requirements. The fluid path and components are certified to be:

• Sterile: Guaranteed sterile upon delivery.
• Non-pyrogenic: The fluid path is free from fever-inducing substances.
• Non-toxic: All materials used are non-toxic.
• Latex-Free: The entire set is completely latex-free.

Yes, the Exel IV Administration Sets offer highly versatile fluid delivery and feature a combination Vented/Non-Vented capability on the same unit.

• This functionality is controlled by manipulating an integrated valve.
• This design allows the set to be used effectively with various types of intravenous fluid containers, regardless of whether they require venting, maximizing clinical utility.

Yes, these administration sets feature sophisticated designs, including dual flow control and versatile configuration options to ensure precision and safety in IV fluid delivery.

Enhanced Flow Control

Each set incorporates two distinct flow control mechanisms:

• Adelberg III Roller Clamp: Used for precise, continuous adjustment of the fluid flow rate.
• Occlusion (Pinch) Clamp: Used as a secondary mechanism to immediately and completely shut off IV flow without disturbing the precise setting of the roller clamp.

Additional Versatility

• Venting: Certain sets offer a combination vented/non-vented option, controllable via an integrated valve, providing flexibility for different container types.
• Configuration Options: You can choose from various specifications to meet clinical needs:
  • Drop Rates: Available in 15 drops/mL or high-precision 60 drops/mL (microdrip).
  • Connection Types: Includes Luer Slip, Luer Lock, and Option Lock connections.
  • Injection Sites: Choices include standard (Y) Injection Sites or Needle Free (Y) Injection Sites.
  • Lengths: Full administration sets come in 78” or 105” lengths, and various extension sets are available up to 72”.

The available tubing lengths depend on whether you are choosing a complete Administration Set or a separate Extension Set.

• IV Administration Sets: These sets typically feature a tube length of 78 inches, with some specialized configurations reaching 105 inches.

• IV Extension Sets: Various extension sets are available in lengths of 12 inches, 20 inches, and 30 inches. A 72-inch Universal IV Administration Set is also offered.

Yes, these Exel IV Administration Sets are equipped with a dual clamping system for superior control and safety during fluid delivery. This feature is a key selling point, allowing users to shut off the flow while preserving the established rate setting.The system includes two separate clamps: * Adelberg III Roller Clamp: Used for precise regulation and setting of the IV fluid flow rate. * Occlusion Clamp (Pinch Clamp): A secondary shut-off mechanism that allows you to immediately halt the infusion flow completely without altering the precise flow rate you set using the roller clamp.

Exel IV Administration Sets are manufactured with high-precision tubing to ensure consistent clinical performance. The specifications are as follows:

• Inner Diameter: 3.0 mm (±0.05 mm)
• Outer Diameter: 4.1 mm (+0.10 mm / -0.05 mm)

These components are designed for reliability and safety, featuring a sterile, latex-free, and non-pyrogenic fluid path suitable for professional medical environments.

Yes, Exel IV Administration Sets are designed for high patient safety and reliable fluid delivery, featuring both material certification and advanced flow control mechanisms.

Patient Safety Certifications

The fluid path is guaranteed to meet stringent medical device standards:

• Sterility: Supplied sterile for immediate clinical use.
• Biocompatibility: Certified as non-toxic and non-pyrogenic.
• Allergy Safety: They are completely latex-free.

Dual Flow Control System

Operational safety is enhanced by the unique dual clamping system, allowing for flexible and redundant flow management:

1. Adelberg III Roller Clamp: Used for standard, precise adjustment of the flow rate.
2. Occlusion Clamp (Pinch Clamp): Provides a secondary, independent mechanism to completely shut off the IV flow instantly, without altering the roller clamp’s setting.

The Exel IV Administration Sets offer two common drop rate configurations to ensure accurate fluid management across various clinical needs:

• 15 Drops/mL (Macro-drip): Suitable for standard or high-volume fluid administration, ideal when large volumes need to be delivered relatively quickly.
• 60 Drops/mL (Micro-drip): Designed for precise, slow fluid delivery. These sets are essential for critical care, pediatric use, or other applications requiring strict, low-volume control.

This selection allows clinicians to choose the optimal set for their patient’s therapeutic requirements.
