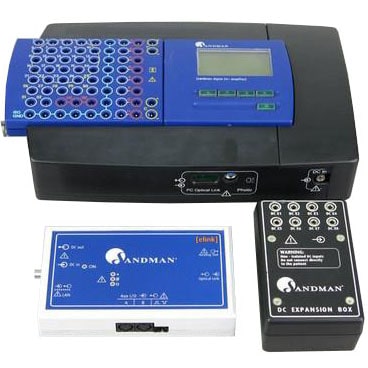

Embla Sandman Elite PSG System

Embla Sandman Elite PSG System Features

• Digital 32+ Amplifier:
  • Slim, lightweight headbox with quick disconnect for easy patient mobility.
  • Fully programmable references, filters, gains, and sampling rates.
  • Multireferencing and re-referencing of any channel during collection.
• Amplifier:
  • Digital conversion immediately after signal is received from electrode and/or sensor.
  • High/low frequency filters are fully customizable.
  • Programmable calibration and electrode impedance check for all channels.
  • Signal amplification - 20 levels for DC channels, nine levels for AC channels.
  • True 16-bit resolution.
  • Sampling rates selectable up to 8,192 Hz.
  • Optically isolated for patient protection.
  • Common Mode Rejection Ratio greater than 100 dB.
  • DC offset ± 300 mV/leakage less than 100 µA.
• Power:
  • Isolated medical grade AC/DC adapter (Class I, Type B), providing 15 V DC headbox.
  • Compatible with standard 1.5 mm electrodes, sensors, and inputs.
  • Connects to amplifier via docking station or 6' cable.
  • Convenient strap for easy patient mobility channels.
  • 40 Inputs (including up to 16 DC):
    • 32 Monopolar AC inputs (eight DC optional).
    • Eight bipolar AC inputs (DC optional).
    • One temperature channel.
    • One calibration output channel.
• e-link Adapter:
  • Plug-and-play, state-of-the-art ethernet interface.
  • Plenum cabling to control room, 100 - 250' (30 - 76 meters).
• Pulse Oximetery:
  • Built-in Nellcor Oximetry for simplified calibration.
  • Provides both SpO₂ and pulse rate channels.
  • Two - three second averaging for sleep labs.
• Multiple Applications:
  • PSG: Sleep diagnostics.
  • EEG: Neurodiagnostics.
  • EP: Evoked potential.
• Safety Standards:
  • Meets requirements EN IEC 60601-1.
  • Complies with CSA and UL544.
  • Classified according to MDD 93/42/EEC.

Embla Sandman Elite PSG System Specifications

• Amplifier:
  • Size: 10.2" (L) x 6.8" (W) x 2.2" (H) (250 mm x 170 mm x 65 mm).
  • Weight: 3 lb (1.36 kg).
• Head Box:
  • Size: 5.2" (L) x 3.8" (W) x 2.5" (H) (126 mm x 96 mm x 25 mm).
  • Weight: 0.5 lb (0.2 kg).
• DC Expansion Box:
  • Size: 4.8" (L) x 2.8" (W) x 2.2" (H) (120 mm x 70 mm x 55 mm).
  • Weight: 0.5 lb (0.2 kg).

Embla Sandman Elite PSG System Accessories

The following accessories are compatible and commonly purchased with the Sandman Elite PSG System:

• #MFI-IR-PSG-LTM-CAMERA: MFI Medical IR PSG & LTM Sleep System Camera.
• #MFI-EMB-SAND-LPTP: Embla Sandman Elite Computer - Laptop.
• #MFI-EMB-SAND-DESK: Embla Sandman Elite Computer - Desktop.
• #MFI-EMB-REM-LPTP: Embla RemLogic Computer - Laptop.
• #MFI-EMB-REM-DESK: Embla RemLogic Computer - Desktop.
• #MFI-EMB-REMBRANDT-LPTP: Embla Rembrant Computer - Laptop.
• #MFI-EMB-REMBRANDT-DESK: Embla Rembrant Computer - Desktop.
• #1200: SleepSense Dynamic Snore Sensor.
• #9010-Kit: SleepSense Reusable Inductive System - Adult Kit.
• #1450-Kit: SleepSense Thermistor Flow Sensor Kit.
• #15805: SleepSense Adult Nasal Pressure Monitoring Cannula.
• #1575-Kit: SleepSense 1/8" Plug DC Body Position Sensor Kit.
• #1770-Kit: SleepSense Limb Movement Sensor Kit.
• #8110-T100A300: SleepSense Adult Soft-Tip SpO2 Sensor - Nonin Compatible.
• Technomed Reusable EEG Cup Electrode.
• Weaver Nuprep Skin Prep.
• Weaver Ten20 Conductive Paste.
• 3M Transpore Surgical Tape.
• Dynarex Stretch Gauze Bandage.

Embla Sandman Elite PSG System Literature

Embla Sandman Digital 32+ Amplifier Hardware Requirements

Embla Sandman Digital 32+ Amplifier Brochure
