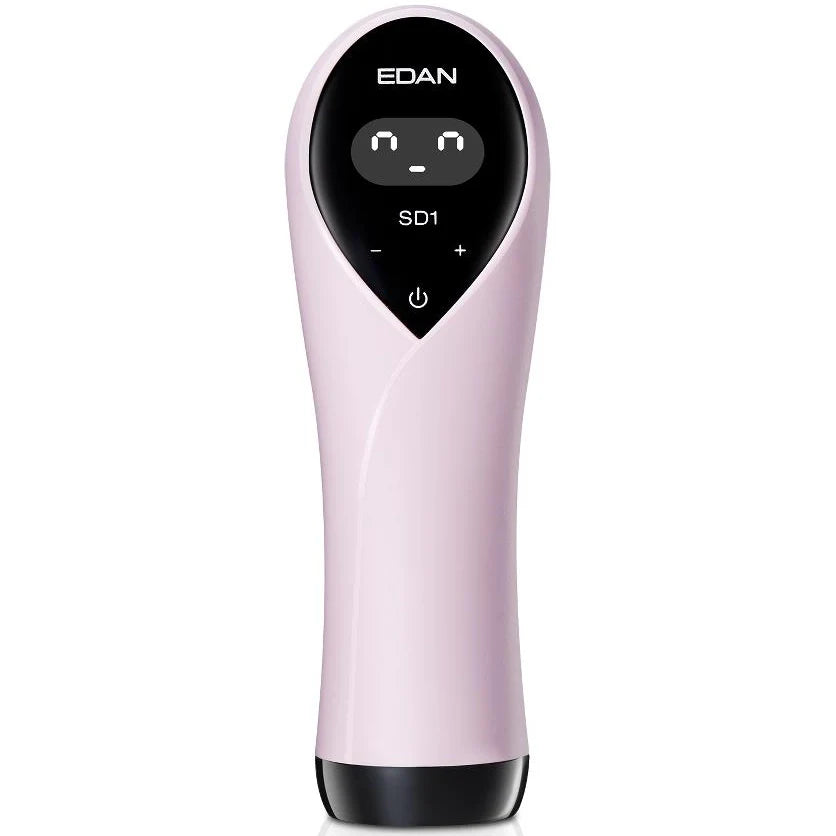

Edan SD1 Ultrasonic Pocket Doppler

Edan SD1 Ultrasonic Pocket Doppler  With Internal Bluetooth
Edan SD1 Ultrasonic Pocket Doppler
Edan SD1 Ultrasonic Pocket Doppler  With Internal Bluetooth
Edan SD1 Ultrasonic Pocket Doppler
Key Features
  • SKU: EDN-SD1
  • Condition:
    Condition: Factory New
  • Country of Origin: China
  • Warranty:
    Warranty: 2 Years
  • Weight: 0.4 lb
  • Pulse wave technology surpasses the limitations of probe angles and fetal heart depth requirements
  • Quickly and easily locate the fetal heart rate signal
  • Improves the quality of sound performance and minimizes interference
  • Touch panel for easy control

  • Learn more:

Contact The Manufacturer
  • MFR: Edan
    Ships from Manufacturer
  • MPN: SD1
  • Phone: (888) 850-4597
$119.00 $110.00
Select a Configuration
Est. Delivery:

Earn [points_amount] when you buy this item.

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Edan SD1 Ultrasonic Pocket Doppler includes a Carrying Case (#01.56.466428) and built-in 3 MHz Probe.

Warranty: 2 Years (Doppler) / 1 Year (Carrying Case) - Free from Defects in Materials and Workmanship.

Unlike traditional technology, the SD1 all-in-one compact handheld Doppler utilizes pulse waves, surpassing the limitations of probe angles and fetal heart depth requirements. This enables users to quickly and easily locate the fetal heart rate signal. The SD1's pulse wave technology improves the quality of sound performance and minimizes interference.

With an exceptionally low radiation level, it ensures a safer and more comfortable application. Beyond its professional clinical use, the SD1 is also a user-friendly home-based device, allowing you the flexibility to use it anywhere, anytime.

Features

Edan SD1 Ultrasonic Pocket Doppler Features

  • Digital display of FHR.
  • Touch panel for easy control.
  • Built-in speaker with adjustable volume.
  • Probe detects fetal heart beat.
  • AA batteries for easy replacement.
  • Automatic power-off for battery power saving.

Specifications

Edan SD1 Ultrasonic Pocket Doppler Specifications

  • Weight: 0.4 lb (180 g).
  • Dimensions: 48 mm x 39 mm x 147 mm.
  • Display:
    • Size: 24 mm x 13 mm.
    • Content: FHR, Battery Level, Signal Intensity, Sound Volume Level, and FH Icon.
  • Battery:
    • Two AA 1.5 V Alkaline (LR6).
    • Working Duration: Greater than or equal to 6 hours.
  • Audio:
    • Output Power: 2 W.
    • Background Noise: Less than 45 dBA.
    • Overall Sensitivity: Greater than 110 dB.
  • FHR:
    • Operating Mode: Pulse wave (PW).
    • Working/Nominal Frequency: 3 MHz.
    • Measurement Range: 50 to 240 bpm.
    • Resolution: 1 bpm.
    • Accuracy: ± 2 bpm.
    • Effective Radiation Area: 490 ± 15% mm2.
  • Auto Power-Off: With no signal or operation for two minutes.

Configurations

Edan SD1 Ultrasonic Pocket Doppler Configurations

  • #SD1: Standard (No Bluetooth).
  • #SD1.B: With Internal Bluetooth - For connecting to free iOS or Android app:
    • Growth tracking.
    • Care information.
    • Examination recording.
    • FHR examination.

Literature

Edan SD1 Ultrasonic Pocket Doppler Literature

Edan SD1 Ultrasonic Pocket Doppler Brochure
