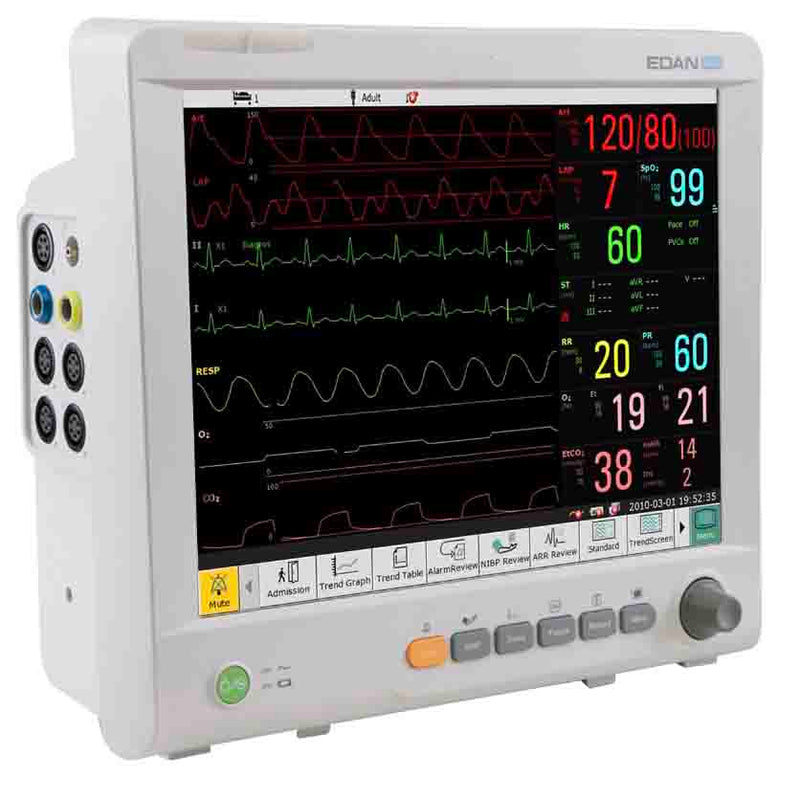

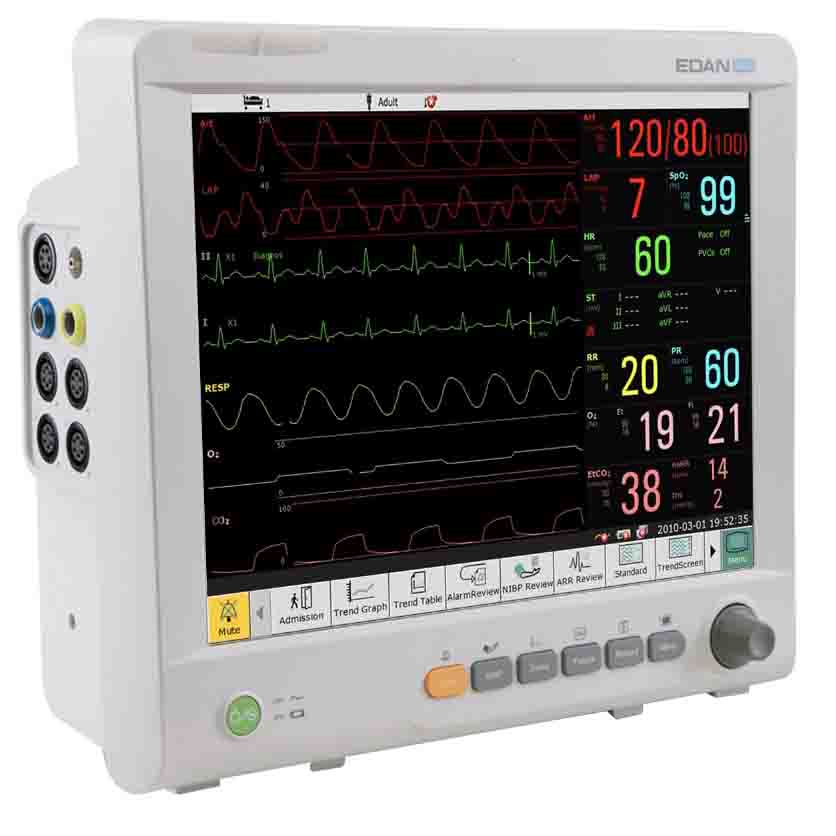

Edan iM80 Patient Monitor

The Edan iM80 Patient Monitor includes:

• #01.15.040187: Skin Temperature Probe.
• #02.01.210119-11: Adult Reusable SpO₂ Sensor.
• #01.57.040205-13: Adult Cuff (25 to 35 cm).
• #01.59.036118-11: NIBP Tube (3 m) with connector.
• #01.57.471095-10: 3-Lead ECG Integrative Cable with Lead Wires, Snap (AHA) (Defibrillation).
• #01.13.036106: Power Cord (USA standard).
• #11.57.471056: Adult Diposable Adhesive Snap Electrodes.
• #01.21.064143: Rechargeable Lithium-Ion Battery (14.8 V, 4200 mAh).
• #11.13.114214: Grounding Cable.
• User manual.

Warranty: 2 Years - Free from Defects in Materials and Workmanship.

The iM80 features standard parameters such as ECG (3-lead, 5-lead), respiration (RESP), Edan noninvasive blood pressure (NIBP), Temperature (dual-TEMP), PR, HR, and Edan functional arterial oxygen saturation (SpO₂). It is equipped with alarms that indicate system faults (such as loose or defective electrodes), physiologic parameters that have exceeded the limits set by the operator, or both.

Edan iM80 Patient Monitor Features

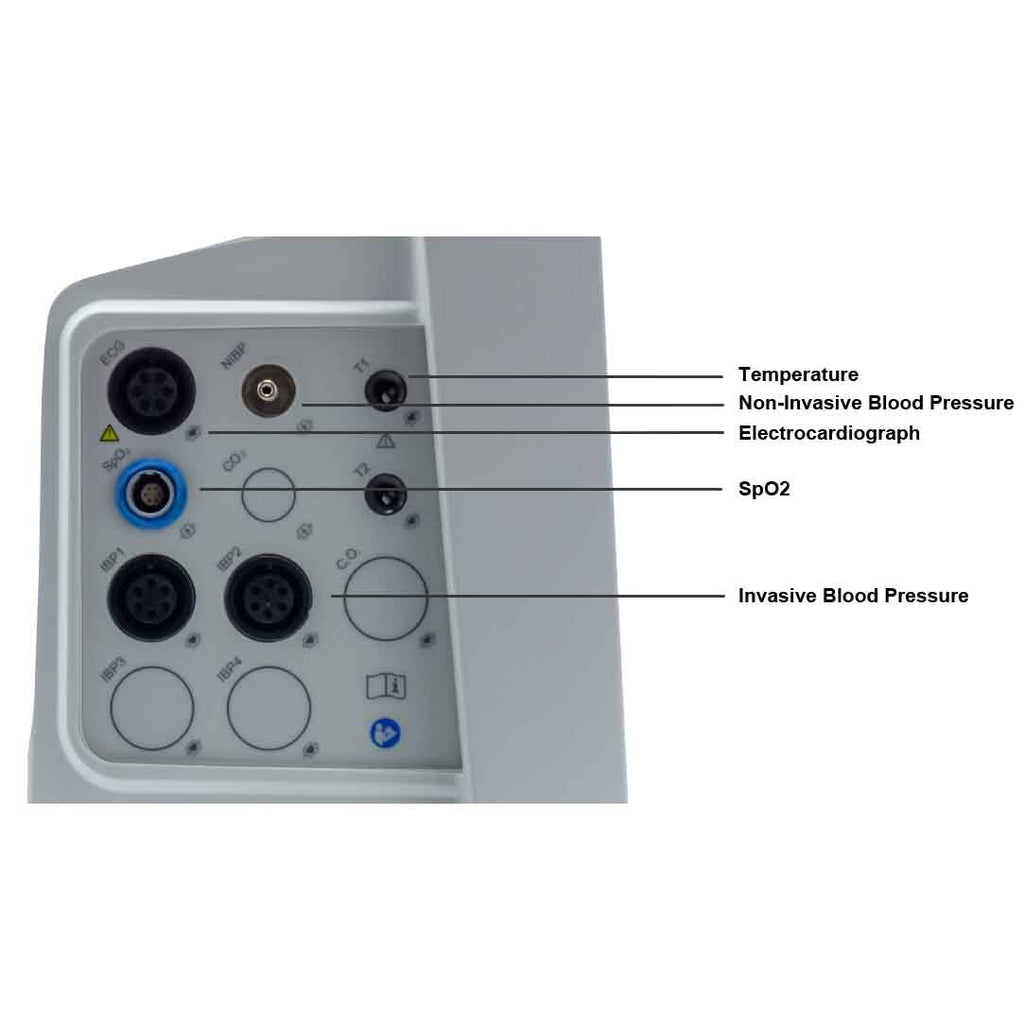

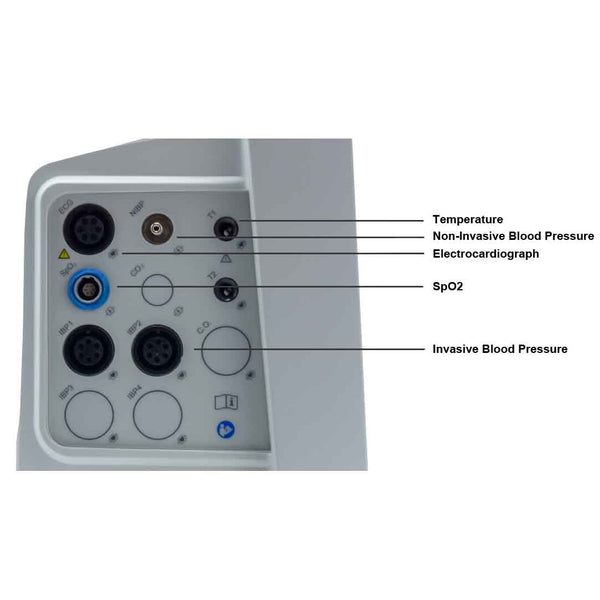

• Standard Parameters: 3/5-lead ECG, Resp, Edan NIBP, 2-Temp, PR, HR, Edan SpO₂.
• Open CO₂ and IBP ports.
• 15" high-resolution color TFT touch screen display.
• Multiple Display Modes: Standard Display, Large Font, Vital Display, Trend View, OxyCRG, and Bed View.
• Waveform color adjustable.
• Pacemaker detection.
• 120 seconds of full-disclosure waveforms review.
• 120-hour graphic and tabular trends of all parameters.
• Built-in rechargeable Li-ion battery.
• VGA output and analog output.
• USB data storage and review.
• Powerful Technologies:
  • Arrythmia and S-T segment analysis.
  • Electrosurgical interference proof.
  • Nurse Call function.
  • Bi-directional communication with MFM-CMS central station.
• Built-in WiFi.
• Barcode scanner.
• Optional Parameters: 12-lead ECG, thermal recorder, 4-IBP (with ICP support), cardiac output (C.O.), Respironics CO₂ (mainstream and sidestream), Masimo AG/O₂, Drager AG/O₂, Nellcor OxiMax SpO₂, SunTech NIBP, Edan G2 CO₂ (sidestream).
• OxyCRG available.

Edan iM80 Patient Monitor Specifications

• Weight: 15.43 lb (7 kg) without battery.
• Size: 370 mm (L) x 175 mm (W) x 320 mm (H).
• Display Resolution: 1024 x 768.
• Operating Time with 4.2 Ah battery:
  • One Battery: 120 min or longer.
  • Two Batteries: 240 min or longer.
• Charge Time:
  • One Battery: 320 min or shorter.
  • Two Batteries: 560 min or shorter.

Edan iM80 Patient Monitor Configurations

• #iM80_Touch: Standard.
• #iM80_Touch.P: With Printer.
• #iM80-G2_Touch: With Internal Edan Sidestream G2 CO₂ Module.
• #iM80-G2_Touch.P: With Internal Edan Sidestream G2 CO₂ Module and Printer.
• #iM80-DAG: With Internal Draeger Multigas Bench (CO₂, N₂O, and 5AG).
• #iM80-DAG.P: With Internal Draeger Multigas Bench (CO₂, N₂O, and 5AG) and Printer.
• #iM80-DAGO2: With Internal Draeger Multigas Bench (CO₂, N₂O, and 5AG) and Paramagnetic O₂.
• #iM80-DAGO2.P: With Internal Draeger Multigas Bench (CO₂, N₂O, and 5AG), Paramagnetic O₂, and Printer.

G2 CO₂ Module (optional): Uses traditional water traps and any male luer lock cannula with generic connection.
