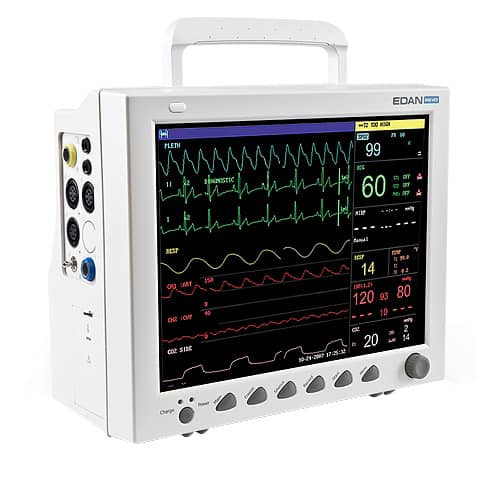

Edan iM8 VET Veterinary Monitor

Liquid error (snippets/ced-product-media line 113): external_video_tag does not support String

Key Features

SKU: EDN-iM8-Vet
Condition: Factory New
Country of Origin: China
Warranty: 2 Years
High resolution color TFT-LCD screen
3/5-lead ECG, RESP, NIBP, Edan SpO2, 2-TEMP, PR
Arrhythmia, S-T Analysis, OxyCRG, Large Font Display
Built-in rechargeable Li-ion battery
Learn more:

Contact The Manufacturer

MFR: Edan

Ships from Manufacturer

Ships from Manufacturer

Items shipped from the manufacturer

This item will be shipped directly from the manufacturer to your doorstep, ensuring that you receive the newest product available. The estimated delivery range provided is based on the manufacturer's inventory levels and is subject to change depending on the quantity ordered. We ship items as soon as they become available, so if you order multiple quantities, you may receive them in separate shipments.

Special order item

A special order item will need to ship to our warehouse from the manufacturer before then shipping to you. The estimated delivery range that you see is based on the information that we receive from the manufacturer, which is also contingent upon your ordered quantity and the current inventory levels of the manufacturer. We will ship the items to you as soon as they become available, which may result in multiple shipments if you order more than one quantity.
MPN: iM8 Vet

MPN: IM8_Vet_EtCo2Main
Phone: (888) 850-4597

$2,294.25

Select a Configuration

Variant

Est. Delivery:

Quantity

Earn [points_amount] when you buy this item.

Shop with Confidence

Description

The Edan iM8 VET Veterinary Monitor allows you to deliver high quality care for all animals. Thanks to innovative technology and an optimized performance, the iM8 VET provides the accurate readings necessary to have reliable monitoring available at your finger tips.

Warranty: 2 Years.

Note: Data saved on the USB is encrypted. Users cannot simply see the vitals on a computer without the proper software. CMS/CMS-Lite software is required for viewing live to capture that data as a PDF. Alternatively an installed printer can be used to view results. Printers MUST be added to a monitor order at the time of purchase. Otherwise a $195 labor fee plus the cost of the printer will be added. Please select the with printer option at checkout or contact MFI directly before purchasing to make sure your order includes a printer.

Features

Edan iM8 VET Veterinary Monitor Features

3/5-lead ECG, RESP, NIBP, Edan SpO2, 2-TEMP, PR.
Arrhythmia, S-T Analysis, OxyCRG, Large Font Display.
120 Seconds Full-disclosure Waveforms Review.
120 Hour Graphic and Tabular Trends Of All Parameters.
Bi-directional Communications with Central Monitoring System.
Customized alarm setting.
High resolution color TFT-LCD screen.
Pacemaker detection.
Defibrillation and electrosurgical interference protection.
Pitch tone (Pulse-tone modulation).
Unique iSEAPTM algorithm optimized for arrhythmia patients.
Dual-mode anti-interference pulse Oximetry.
SP10 Validated NIBP.
Built-in rechargeable Li-ion battery.
Nurse call.
VGA output (optional).

Specifications

Edan iM8 VET Veterinary Monitor Specifications

Physical Specifications

Device Dimensions: 320 mm (L) x 150 mm (W) x 265 mm (H).
Weight: 11.02 lb (5 kg).

Display

Color TFT LCD: 12.1”.
Resolution: 800 x 600.
Traces Displayed: Up to 8.
Waveforms Displayed: Up to 11.
Sweep Speed: 6.25, 12.5, 25, 50 mm/s.

ECG

Lead Type: 5-lead and 3-lead selectable.
Gain: : Auto, x 0.125, x 0.25, x 0.5, x 1, x 2, x 4.
Sweep Speed: 6.25, 12.5, 25, 50 mm/s.
ECG HR Range:
- Adult: 15-300 bpm.
- Pediatric / Neonate: 15-350 bpm.
Resolution: 1 bpm.
Accuracy: +1 bpm or +1%.
Filter:
- Diagnostic Mode: 0.05 ~ 150 Hz.
- Monitoring Mode: 0.5 ~ 40 Hz.
- Surgical Mode: 1~20 Hz.
ST-Segment Detection:
- Measurement Range: -2.0 mV~2.0 mV.
- Alarm Range: -2.0 mV~2.0 mV.

RESP

Method: Trans-thoracic impedance.
Operation Mode: Auto/Manual.
RR Measurement Range:
- Adult: 0~120 rpm.
- Neonate/Pediatric: 0~150 rpm.
Resolution: 1 rpm.
Apnea Alarm Threshold: 10, 15, 20, 25, 30, 35, 40 s.
Band Width: 0.2-2.5 Hz (-3 dB).
Sweep Speed: 6.25, 12.5, 25, 50 mm/s.

Sp0₂

Measurement & Alarm Range: 0~100% (Sp0₂).
Resolution: 1%.
Accuracy: +2% (70~100%, Adult/Pediatric). +3% (70~100%, Neonate).
PR Measurement:
- Resolution: 25-300 bpm.
- 1 bpm.
- Refresh Rate: 1 second.

NIBP

Method: Automatic Oscillometric.
Operation Modes: Manual/Automatic/Continuous.
Auto Measurement Time Interval: 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 240, 480 minutes.
Measurement Unit: mmHg/kPa.
Measurement Types: Systolic, Diastolic, Mean.
Pressure Range:
- Adults:
  - Systolic: 40~200 mmHg.
  - Diastolic: 10~160 mmHg.
  - Mean: 20~235 mmHG.
- Pediatrics:
  - Systolic: 40~200 mmHg.
  - Diastolic: 10~150 mmHg.
  - Mean: 20~165 mmHG.
- Neonates:
  - Systolic: 40~135 mmHg.
  - Diastolic: 10~100 mmHg.
  - Mean: 20~110 mmHG.
Resolution: 1 mmHg.
Accuracy:
- Max Mean Error: +5 mmHg.
- Max Standard Deviation: 8 mmHg.
- PR from NIBP Measurement Range: 40~240 bpm.
- Resolution: 1 bpm.
- Accuracy: 3 bpm or 3.5%.
- SP10:2002.

Configurations

Edan iM8 VET Veterinary Monitor Configurations

#iM8 Vet: Standard - 3/5-lead ECG, RESP, SpO₂2 NIBP, PR, 2-TEMP.
#iM8 Vet-G2: Includes G2 CO2 and Thermal Recorder - 2-IBP, Respironics CO2, G2 CO2, Thermal Recorder, WLAN Kit.

Literature

Edan iM8 VET Veterinary Monitor Literature

Edan iM8 VET Veterinary Monitor Brochure
