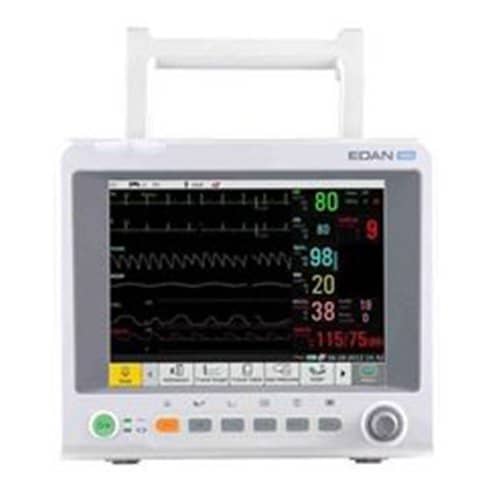

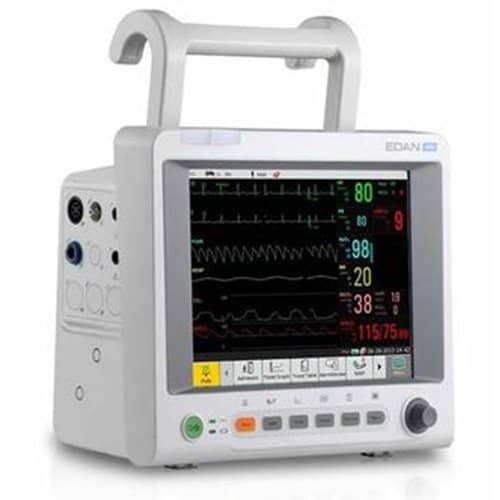

Edan iM60 Patient Monitor with 10" Touch Screen and WiFi

Name: Edan iM60 Patient Monitor with 10" Touch Screen and WiFi
Brand: Edan
SKU: EDN-iM60-Touch-WiFi
Price: 3480.0 USD
Availability: InStock

Edan iM60 Patient Monitor with 10" To...

Liquid error (snippets/ced-product-media line 113): external_video_tag does not support String

Key Features

SKU: EDN-iM60-Touch-WiFi
Condition: Factory New
Country of Origin: China
Warranty: 2 Years
Large, high resolution screen
No fan design
Waterproof and dust proof keypad design
Pacemaker detection
Learn more:

Contact The Manufacturer

MFR: Edan Ships from Manufacturer

Items shipped from the manufacturer

This item will be shipped directly from the manufacturer to your doorstep, ensuring that you receive the newest product available. The estimated delivery range provided is based on the manufacturer's inventory levels and is subject to change depending on the quantity ordered. We ship items as soon as they become available, so if you order multiple quantities, you may receive them in separate shipments.

Special order item

A special order item will need to ship to our warehouse from the manufacturer before then shipping to you. The estimated delivery range that you see is based on the information that we receive from the manufacturer, which is also contingent upon your ordered quantity and the current inventory levels of the manufacturer. We will ship the items to you as soon as they become available, which may result in multiple shipments if you order more than one quantity.
MPN: iM60_Touch_WiFi
Phone: (888) 850-4597

$5,196.00 $3,480.00

Est. Delivery:

Quantity

Earn [points_amount] when you buy this item.

Shop with Confidence

Description

The Edan iM60 Patient Monitor with 10" Touch Screen and WiFi includes:

#01.15.040187: *Skin Temperature Probe.
#02.01.210119-11: *Adult Reusable SpO₂ Sensor.
#01.57.040205-13: *Adult Reusable NIBP Cuff (25 to 35 cm).
#01.57.471095-10: *3-lead ECG Integrative Cable with Snap Leadwires.
#01.59.036118-11: 3 m NIBP Tube with Connector.
#01.13.036106: Power Cord.
#11.57.471056: (30x) Adult Disposable Adhesive Snap Electrodes.
#01.21.064143: Rechargeable Lithium-Ion Battery.
#11.13.114214: Ground Cable.
User Manual.

Note: *Accessories can be customized by size/configuration to match your needs. These options can be found below; please call MFI to personalize your iM60 standard accessories.

Warranty: 2 Years - Free from Defects in Materials and Workmanship.

Note II: Data saved on the USB is encrypted. Users cannot simply see the vitals on a computer without the proper software. CMS/CMS-Lite software is required for viewing live to capture that data as a PDF. Alternatively an installed printer can be used to view results. Printers MUST be added to a monitor order at the time of purchase. Otherwise a $195 labor fee plus the cost of the printer will be added. Please select the with printer option at checkout or contact MFI directly before purchasing to make sure your order includes a printer.

The Edan iM60 Patient Monitor with 10" Touch Screen and WiFi has a high resolution color TFT-LCD display and up-to-date customizable shortcut menu design which brings easy one-touch access to frequently used functions.

The iM60 employs low-power consumption design with its fanless structure which creates no noise and no dust accumulation. It is also embedded with various communication capabilities including HL7, LAN, Nurse Call, Defibrillator Synchronization, and built-in Wi-Fi, making it easy to communicate and co-work with hospital information systems and other hospital facilities.

Features

Edan iM60 Patient Monitor with 10" Touch Screen and WiFi Features

Large, high resolution screen.
No fan design.
Waterproof and dust proof keypad design.
Pacemaker detection.
Electrosurgical interference proof.
Defibrillation protection and defibrillation synchronization.
Pitch tone.
iSEAP ECG algorithm optimized for arrhythmia detection, pacemaker detection, and HR measurement.
iCUFS NIBP algorithm optimized for cardiac patients, hypertensive patients, and neonatal patients.
iMAT SpO₂ algorithm with outstanding motion resistance and low perfusion resistance performance.
Large storage capacity.
Nurse call function.
LAN connection with DHCP support.
Built-in Wi-Fi.
Bi-directional communication with the MFM-CMS central station.
HL7 support.
VGA output.

Specifications

Edan iM60 Patient Monitor with 10" Touch Screen and WiFi Specifications

Standard Parameters: 3/5-lead ECG, RESP, EDAN SpO₂, EDAN NIBP, PR, 2-TEMP.
Optional Parameters: Nellcor OxiMax SpO₂, 2-IBP, Respironics CO₂.
Display: 10.4" color screen.
Screen Resolution: 800 x 600.
Dimensions: 12" x 6.3" x 10" (303 mm x 161 mm x 254 mm).
Weight: < 9.9 lb (< 4.5 kg).
Power Supply:
- Current: 1.4 to 0.7 A
- Fuse: T3.15AH, 250 V.
Battery Operating Time:
- 2.1 Ah: 150 minutes or longer.
- 4.2 Ah: 300 minutes or longer.
Battery Charging Time:
- 2.1 Ah: 200 minutes or shorter.
- 4.2 Ah: 360 minutes or shorter.
IBP Channels: 2.

Accessories

Edan iM60 Patient Monitor with 10" Touch Screen and WiFi Accessories

The following accessories are compatible and commonly purchased with the iM60 Patient Monitor:

Temperature Probe:
- #01.15.040187: Skin Temperature Probe.
- #01.15.040186: Rectal / Oral Temperature Probe.
Reusable SpO₂ Sensor:
- #12.01.110492-11: Neonate (< 3 kg / < 6.6 lb) Wrap Reusable SpO₂ Sensor (DB9 / 1 m). Compatible with Edan M series patient monitors with use of extension cable.
- #02.01.210121-11: Pediatric (10 to 50 kg / 22 to 110 lb) Reusable Silicone Soft-tip SpO₂ Sensor (DB9 / 1 m). Compatible with Edan M series patient monitors with use of extension cable.
- #02.01.210119-11: Adult (> 30 kg / > 66 lb) Reusable SpO₂ Sensor (Lemo / 2.5 m). Compatible with Edan M series patient monitors (Standard).
- #02.01.210120-11: Adult (> 30 kg / > 66 lb) Reusable SpO₂ Sensor (DB9 / 1 m). Compatible with Edan M series patient monitors with use of extension cable.
- #02.01.210122-11: Adult (> 30 kg / > 66 lb) Reusable Silicone Soft-tip SpO₂ Sensor (DB9 / 1 m). Compatible with Edan M series patient monitors with use of extension cable.
NIBP Cuff:
- #01.57.040212: Infant (10 - 19 cm) Reusable NIBP Cuff, CM 1301.
- #01.57.040211: Child (18 - 26 cm) Reusable NIBP Cuff, CM 1302.
- #01.57.040205-13: Adult (25 - 35 cm) Reusable NIBP Cuff, CM 1303 (Standard).
- #01.57.040210-12: Large Adult (33 - 47 cm) Reusable NIBP Cuff, CM 1304.
ECG Cable:
- #01.57.471087-10: 3-Lead ECG Integrative Cable with Leadwires, Grabber (AHA) Defibrillation.
- #01.57.471095-10: 3-Lead ECG Integrative Cable with Leadwires, Snap (AHA) Defibrillation (Standard).
- #01.57.471096-10: 5-Lead ECG Integrative Cable with Leadwires, Snap (AHA) Defibrillation.
- #01.57.471097-10: 5-Lead ECG Integrative Cable with Leadwires, Grabber (AHA) Defibrillation.
#Recorder_edan: Thermal Printer Upgrade Kit.
#01.57.78035: Thermal Printer Paper.
#MT-207_plate_im60: Rolling Stand with Mounting Plate and Basket.

Literature

Edan iM60 Patient Monitor with 10" Touch Screen and WiFi Literature

Edan iM Series Patient Monitor User Manual

Edan iM50/iM60/iM70/iM80 Patient Monitor Product Specifications

Edan iM60 Patient Monitor Brochure
