Dynarex Resp-O2 CGA Oxygen Regulator (5/Case)

Yes, the Dynarex Resp-O2 Regulator is specifically engineered for reliable performance with oxygen cylinders that utilize the CGA 870 fitting.

This compatibility is a crucial feature, ensuring:

• Secure and reliable connection: Guarantees proper attachment to standard medical oxygen tanks.
• Optimal regulation: Facilitates precise flow control, with configurations available to handle flow rates ranging from 0 LPM up to 25 LPM.
• Durable Construction: The high-pressure conduits are made from durable brass, complementing the lightweight aluminum body for enhanced performance and longevity.

The Dynarex Resp-O2 regulator is constructed from materials selected for reliability, although the exact composition depends on the chosen configuration:

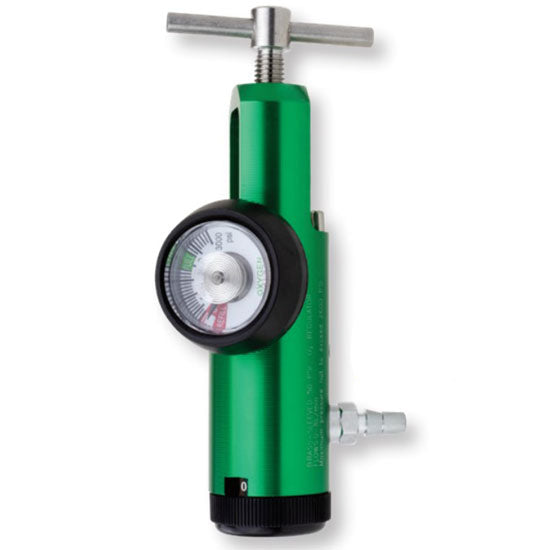

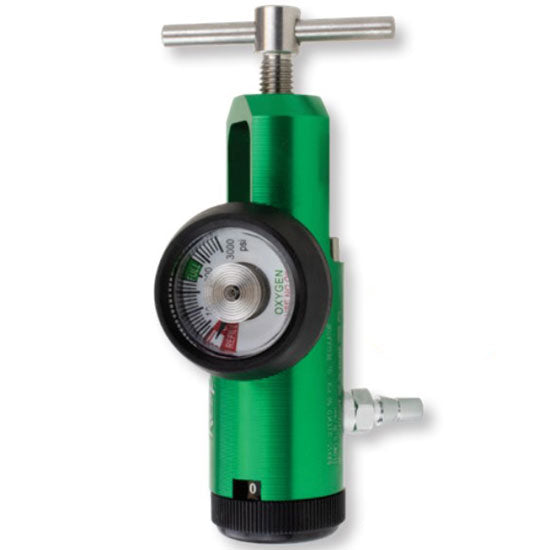

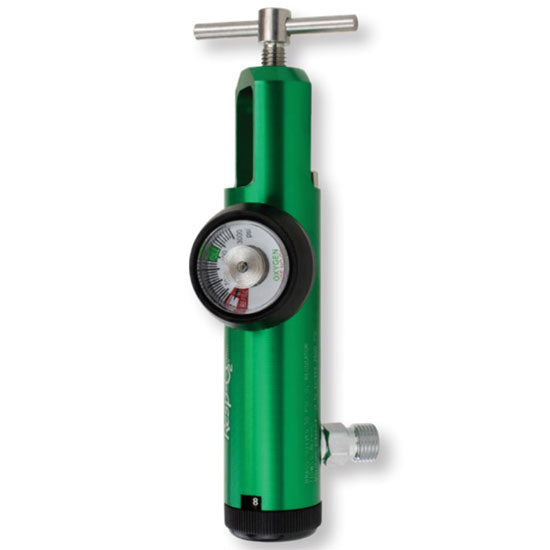

• Standard Variants (Mini, Standard, Extended): These configurations feature a lightweight aluminum body for portability, with robust brass used for all high-pressure conduits to ensure reliable performance.

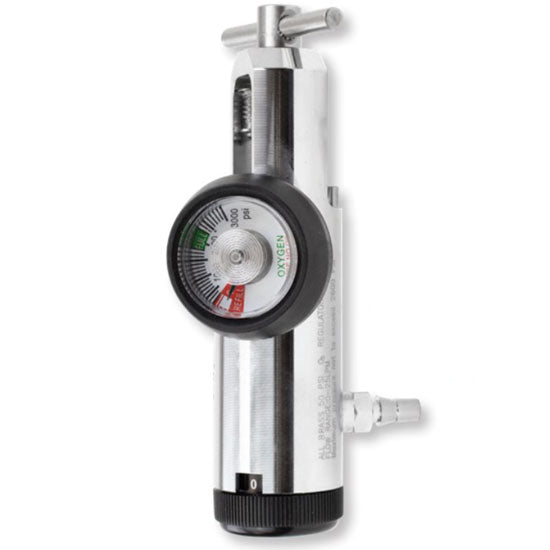

• All-Brass Variant: An all-brass option is available for enhanced material durability and maximum strength, often preferred for specific operational requirements.

Yes, the Dynarex Resp-O2 CGA Oxygen Regulator is sold in a convenient bulk case quantity.

• Each purchase includes 5 regulator units per case.
• This packaging is ideal for medical facilities, institutions, or other settings that require stocking multiple units for immediate use.

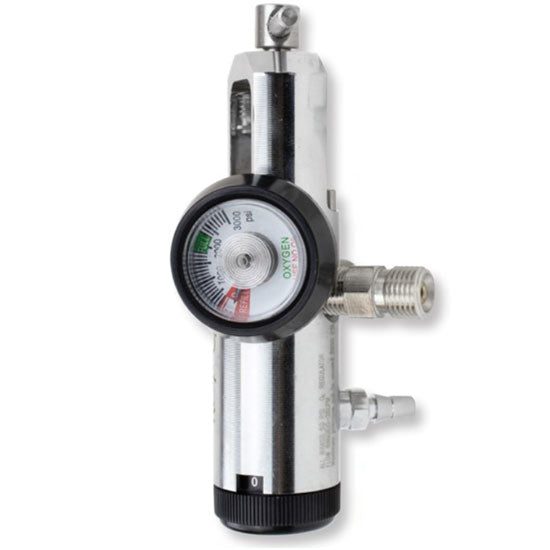

Yes, a specialized variant of the Dynarex Resp-O2 regulator is available that includes multiple outlets for enhanced utility.

• 2 DISS Outlet Configuration: You can select the All Brass configuration, which features two DISS (Diameter Index Safety System) outlets.
• Simultaneous Use: This allows for the simultaneous connection of two oxygen-delivery accessories or devices from a single CGA 870 oxygen cylinder.
• Durable Build: Choosing the All Brass construction also provides superior material robustness and durability for demanding applications.

The Dynarex Resp-O2 CGA Oxygen Regulator offers four distinct flow rate configurations, ensuring precise titration of oxygen delivery across various clinical needs.The available flow meter ranges are:* 0 - 4 LPM* 0 - 8 LPM* 0 - 15 LPM* 0 - 25 LPM (Maximum flow configuration)Each regulator is equipped with an easy-to-read gauge that displays both the system pressure (up to 3000 psi) and the selected flow setting.

Yes, all configurations of the Dynarex Resp-O2 CGA Oxygen Regulator include an easy-to-read gauge for efficient monitoring.This gauge provides crucial information for safe oxygen delivery:* Pressure Monitoring: The integrated pressure gauge is calibrated up to 3000 psi, allowing for clear assessment of cylinder supply levels.* Flow Rate Indication: The regulator features a calibrated flow indicator that displays the flow rate in Liters Per Minute (LPM). Depending on the specific configuration chosen, available flow ranges go up to 0 - 25 LPM.

Yes, the Dynarex Resp-O2 CGA Oxygen Regulator is highly versatile and designed to meet diverse medical and clinical requirements. It is compatible with CGA 870 oxygen cylinders and offered in several configurations:

• Flow Rate Options: Precise flow control is available with maximum settings of 0-4 LPM, 0-8 LPM, 0-15 LPM, or 0-25 LPM.
• Physical Styles: Available in Standard, Mini, and Extended sizes.
• Construction Material: You can select models constructed from lightweight aluminum (with brass conduits) or the heavy-duty All Brass variant for maximum durability.
• Outlet Connectivity: A specialized All Brass version is also available featuring 2 DISS Outlets for enhanced system connectivity.

Yes, the Dynarex Resp-O2 regulator is built with reliability in mind, utilizing a combination of robust materials:

• The main body is constructed from lightweight aluminum, balancing durability with ease of portability.
• It incorporates durable brass components for the high-pressure conduits, ensuring robust performance.

For enhanced durability, an All-Brass configuration option is also available, which is often preferred for more demanding or fixed installations.

Yes, the Dynarex Resp-O2 CGA Oxygen Regulator is manufactured or assembled in the US.

Yes, the integrated, high-precision gauge is designed to reliably monitor oxygen pressure up to 3000 psi. <ul><li>Clear Readability: The gauge features a well-defined dial for quick, accurate pressure checks.</li><li>Safety Zones: It is color-coded with green, white, and red indicators to help users easily identify pressure status during operation.</li></ul>
