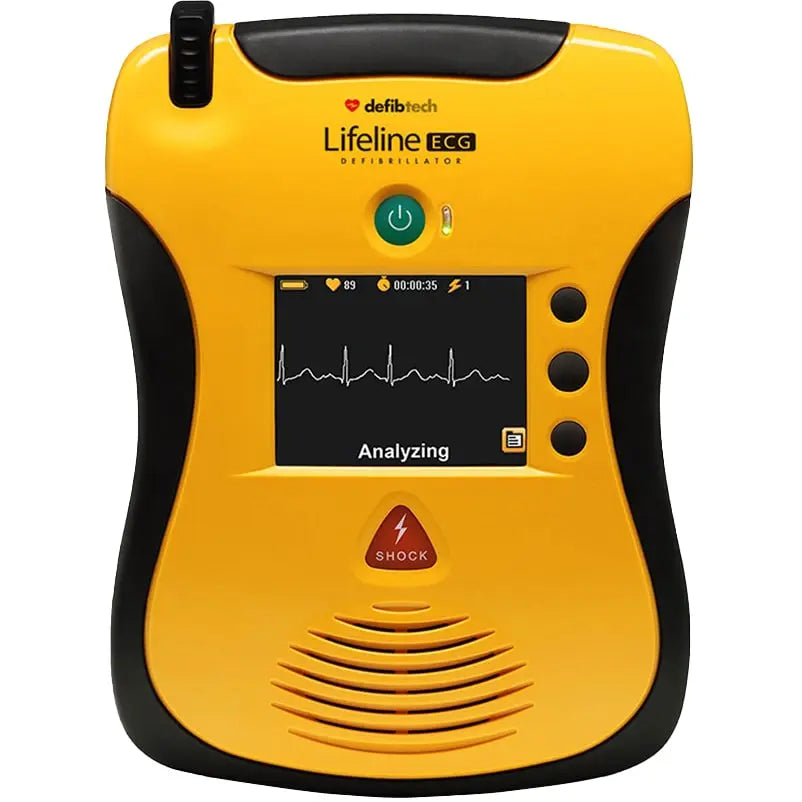

Defibtech Lifeline ECG AED

Defibtech Lifeline ECG AED
Defibtech Lifeline ECG AED status screen
Defibtech Lifeline ECG AED
Defibtech Lifeline ECG AED status screen
Key Features
  • SKU: DFT-DCF-A2460EN
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: 8 Years
  • Weight: 3.0 lb
  • Offers users the ability to view step-by-step instructional videos or ECG information
  • Waveform: Impedance Compensated Biphasic Truncated Exponential
  • Using data cards, the unit can be upgraded as rescue protocols change, and data can be recorded and retrieved
  • Bright yellow color makes it highly visible and easy to locate in an emergency

  • Learn more:

Contact The Manufacturer
  • MFR: Defibtech
    Ships from MFI Medical
  • MPN: DCF-A2460EN
  • Phone: (866) 333-4241
$3,370.00 $2,381.93

+Free Shipping*

Select a Configuration
Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Defibtech Lifeline ECG AED includes a set of Adult Defibrillation Pads (#DDP-2001), Quick Start Card (#DAC-2501), Operating Guide (#DAC-A2530EN), and a 4 Year Battery Pack (#DCF-2003 or #DCF-2013).

Before Purchasing: The FDA requires a prescription for the purchase of an AED. If you have a prescription already, you may select a non-Rx package. If not, you may get a prescription from your own physician, or purchase a package that includes a prescription activation form. This form will be shipped with your AED and must be completed and returned to an MD.

Warranty: 8 Years (AED) / 4 Years (Battery) / Until Use or Expiration (Single-Use Items) / 1 Year or Until Expiration (all other accessories).

The DDU-2450 Lifeline ECG AED offers users the ability to view step-by-step instructional videos or ECG information. It can be used in a non-diagnostic ECG monitoring mode, to allow for rhythm and heart rate monitoring.

The Lifeline ECG allows the user to display the patient's ECG data and event information while in AED mode using defibrillation pads. The unit's bright yellow color makes it highly visible and easy to locate in an emergency. This AED includes all the important features necessary to provide emergency treatment for Sudden Cardiac Arrest, and allows professional rescuers to either receive video and audio instructions or monitor detailed ECG data.

This AED is fully integrated, extremely durable, and has no lids or moving parts which could hinder a rescue. It has been manufactured to resist water and dust, and tested to military standards for shock and crush damage, and for use on high-vibration environments like boats, helicopters, or jet aircraft. The rubberized surface makes it easy to grip in an emergency. Using data cards, the unit can be upgraded as rescue protocols change, and data can be recorded and retrieved.

Features

Defibtech Lifeline ECG AED Features

  • Personal Coach at Your Side: Built-in metronome counts out the beat so you know what to do and when to do it.
  • Real-time Protocol Selection: Enables you to switch rescue protocols without skipping a beat, giving you the comfort and confidence to deliver emergency care your way.
  • Simple to Use:
    • The status screen gives you up to the minute information on maintenance if it's required. In addition, built-in video helps give you easy, step-by-step guidance on maintenance that supplements the user manual. Proactive reporting monitors the status of the device and its components.
    • As protocols change over time, your unit can be easily upgraded in the field with a data card.
    • Data from the unit can be recorded or retrieved from the device using a data card.
  • Safe and Effective: Uses biphasic technology, a clinically proven waveform and algorithm to deliver shocks and save lives. This is one of the most widely used impedance compensated waveforms which has extensive clinical experience, and success, in thousands of defibrillators around the world.
  • Operating Modes:
    • AED with Video Display: Displays full-motion animated instructions with CPR coaching.
    • AED with ECG Display: Displays ECG data and event information.
  • Defibrillator:
    • Type: Semi-automatic external defibrillator.
    • Waveform: Impedance Compensated Biphasic Truncated Exponential.
    • Controls:
      • Lighted On / Off button.
      • Lighted shock button.
    • Display: High-resolution color LCD.
    • Video Prompts:
      • Full motion video.
      • On-screen text prompts.
    • CPR Coaching:
      • Voice and voice coaching.
      • On-demand video help.
    • Voice Prompts: Extensive voice prompts guide user through operation of the unit.
    • Rescue Protocol: AHA / ERC (default); supports protocol updates by the user (password protected).
  • Patient Analysis System:
    • Patient Analysis:
      • Automatically evaluates patient impedance for proper pad contact.
      • Monitors signal quality and analyzes patient ECG for shockable / non-shockable rhythms.
    • Sensitivity / Specificity: Meets or exceeds IEC-60601-2-4 requirements; meets AAMI DF80 requirements and AHA recommendations.
  • Event Documenation:
    • Internal Event Record: Critical ECG segments and rescue event parameters are recorded (greater than 60 minutes) and can be downloaded to a removable data card.
    • PC-Based Event Review: ECG with event tag display, and audio playback when available.
    • Removable Storage (optional):
      • Up to 30 hours of ECG and event data storage (no audio option) or up to 3 hours of audio (audio option).
      • ECG and event storage on a removable data card. Actual length of storage is dependent on card capacity.
    • USB Port: Event download and maintenance operations.
  • Self Tests:
    • Automatic daily, weekly, monthly, and quarterly circuitry tests.
    • System integrity test on battery insertion.
    • Pad Presence: Pads preconnected tested daily.
    • Unit and battery pack system test initiated by the user.

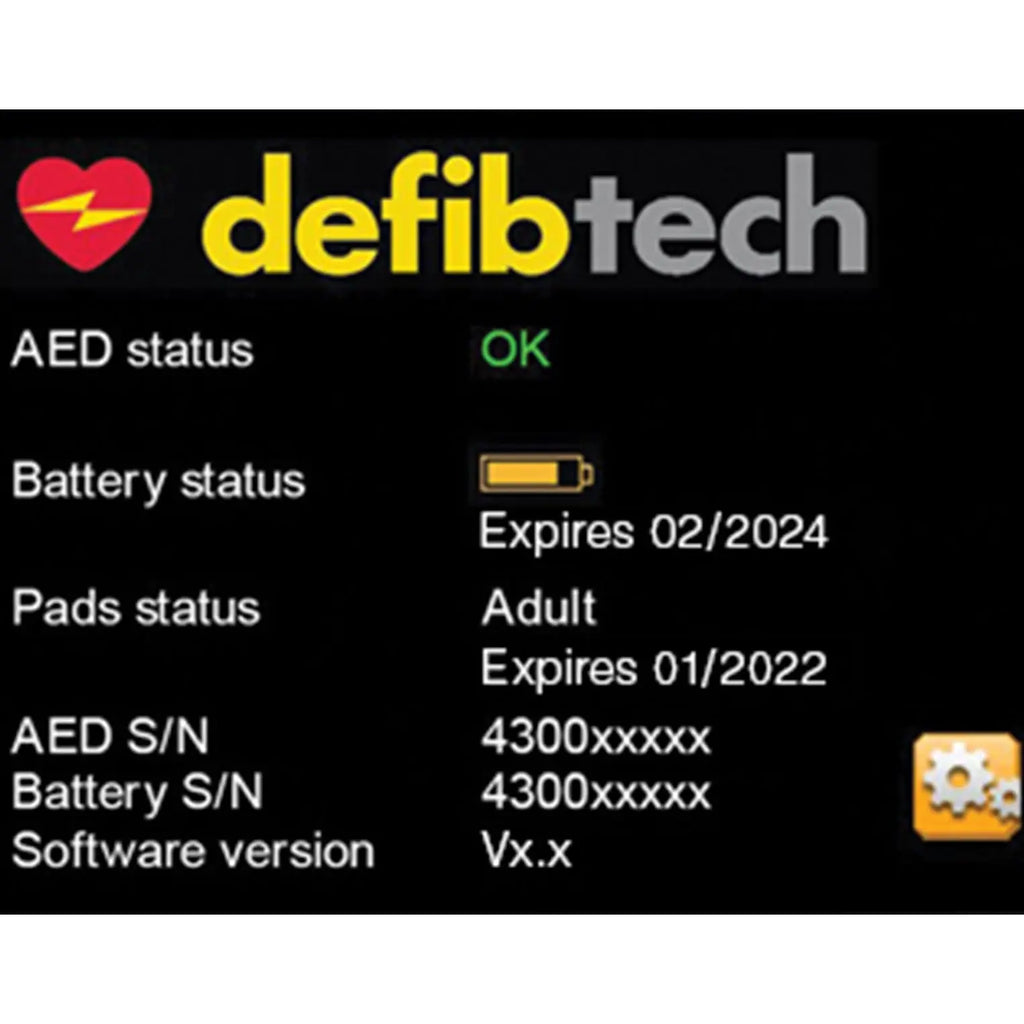

    • Status Screen:
      • Unit self-test results.
      • Pads and battery information (status and expiration).

Specifications

Defibtech Lifeline ECG AED Specifications

  • Energy: (nominal into 50 Ohm load)
    • Adult: 150 Joules.
    • Child / Infant: 50 Joules.
  • Charge Time: 4 seconds or less (from shock advised).
  • Battery Pack:
    • Type: Lithium/Manganese Dioxide (disposable, recyclable, non-rechargeable).
    • Power: 12 V, 2800 mAh.
    • Capacity: Can deliver 125 shocks or continuously operate for 8 hours.
    • Standby Life: 4 years.
  • Dimensions: 7.3" x 9.5" x 2.3" (18.5 cm x 24 cm x 5.8 cm).
  • Weight: Less than 3 lb (1.4 kg).
  • Operating Tolerances: 0 to 50 °C (32 to 122 °F), 5 to 95% humidity (non-condensing).
  • Altitude Tolerance: -150 to 4500 meters (-500 to 15,000 feet).
  • Shock/Drop Abuse Tolerance: 1.2 meters onto any edge, corner, or surface in standby mode.
  • Crush Tolerance: 1000 lb.
  • Water and Dust Resistance: IEC60529 class IP55 protects against dust and waterjets.
  • Vibration Tolerance: Rated to US military standards for helicopters and jet aircraft.

Configurations

Defibtech Lifeline ECG AED Configurations

  • #DCF-A2460EN: Standard.
  • #DCF-A2460RX: With Prescription Activation Form.
  • #DCF-A2463EN: With FAA Compliant 4 Year Battery Pack (#DCF-2013).

Accessories

Defibtech Lifeline ECG AED Accessories

The following accessories are compatible and commonly purchased with the Lifeline ECG AED:

  • #DAC-2100: Lifeline VIEW/ECG AED Soft Carrying Case.
  • DDU-2000 Series Battery Pack:
    • #DCF-2003: Standard.
    • #DCF-2013: FAA Compliant.
  • #DDC-2001: Lifeline VIEW/ECG Standard Data Card.
  • #DDP-2001: Adult Defibrillation Pads (1 Pair) - For Lifeline VIEW/ECG AEDs.
  • #DDP-2002: Pediatric Defibrillation Pads (1 Pair) - For Lifeline VIEW/ECG AEDs.

Frequently asked questions

Can professional rescuers view real-time ECG data?

Yes, the Defibtech Lifeline ECG AED is specifically engineered to provide real-time patient ECG monitoring for professional rescuers. This feature is enabled via the high-resolution color LCD screen.

The unit operates in two modes:

  • AED with ECG Display: This mode allows professional users to view the patient’s real-time heart rhythm data and critical event information.
  • AED with Video Display: This mode offers full-motion instructional videos and voice coaching, ideal for lay rescuers.

Furthermore, the device records critical ECG segments and rescue event parameters internally for over 60 minutes, ensuring comprehensive data documentation for post-event review.

Does the Lifeline ECG AED offer extreme durability?

Yes, the Defibtech Lifeline ECG AED is specifically engineered for extreme durability and reliable operation in demanding, high-vibration environments. Its design is rugged, featuring a bright yellow casing, a rubberized surface for grip, and a lidless design with no moving parts to ensure rapid deployment.

Key durability specifications include:

  • Shock & Drop Resistance: Tested to US military standards for shock, surviving drops of 1.2 meters onto any corner, edge, or surface while in standby mode.
  • Crush Tolerance: Built to withstand up to 1,000 lbs of crush force.
  • Vibration Resistance: Meets US military standards for reliable use in high-vibration settings, such as helicopters and jet aircraft.
  • Environmental Protection: Rated IP55 (IEC60529 class) for strong resistance against both dust and water ingress.
Is this AED easily upgradeable for new protocols?

Yes, the Defibtech Lifeline ECG AED is designed to be easily upgradeable.

This functionality allows the unit to adapt to evolving rescue guidelines. Updates are managed using data cards, ensuring the device remains current with the latest rescue protocols.

What is the battery's standby life and capacity?

The Defibtech Lifeline ECG AED comes with a disposable, non-rechargeable Lithium/Manganese Dioxide battery pack, designed for high reliability and long standby time.

Key specifications for the included battery (#DCF-2003 or #DCF-2013) are:

  • Standby Life: The battery is rated for a 4-year standby life.
  • Operational Capacity: It can deliver up to 125 shocks or provide 8 hours of continuous operation during a rescue scenario.
  • Warranty: The battery is covered by a 4-year warranty.

The AED performs automatic daily, weekly, and monthly self-tests, and the status screen continuously displays the battery’s status and expiration date to ensure readiness.

Does the AED feature advanced CPR coaching?

Yes, the Defibtech Lifeline ECG AED provides advanced CPR coaching using integrated audiovisual guidance to assist responders with proper technique and timing:

  • On-Demand Video: The high-resolution color LCD screen displays full-motion animated instructions and step-by-step CPR coaching tailored to the rescue phase.
  • Voice Prompts: Clear voice coaching guides the user through every critical step of the rescue sequence.
  • Built-in Metronome: This feature ensures proper compression technique and timing by providing rhythmic cues.
Does the AED record critical patient data?

Yes, the Defibtech Lifeline ECG AED is designed with robust documentation capabilities to record and save all critical rescue event details for post-rescue review.

Here are the details regarding event documentation and data storage:

  • Internal Event Record: The device automatically records over 60 minutes of ECG segments and rescue event parameters internally.
  • Optional Removable Storage: If utilizing an optional data card, the storage capacity is significantly extended to hold up to 30 hours of ECG data or 3 hours of audio recording.
  • Data Retrieval: Recorded information can be retrieved for PC-based event review using either a built-in USB port or the optional removable data card.
  • Upgradability: Rescue protocols can also be updated in the field using a password-protected data card.
How frequently does the AED perform self-tests?

The Defibtech Lifeline ECG AED is designed for continuous operational readiness and performs comprehensive automatic self-tests frequently to ensure reliability:

  • Scheduled Circuitry Tests: Automatic diagnostics are run daily, weekly, monthly, and quarterly to check internal systems.
  • Pad Presence Test: The device performs a daily test to confirm the defibrillation pads are properly connected.
  • System Integrity Test: A full integrity check is automatically performed every time the battery is inserted.
What is included with the Defibtech Lifeline ECG AED?

The Defibtech Lifeline ECG AED package is ready for immediate deployment and includes all essential components for operational readiness:

  • 4-Year Battery Pack (Model #DCF-2003 or #DCF-2013): This disposable battery ensures a 4-year standby life and provides capacity for up to 125 shocks or 8 hours of continuous operation.
  • Adult Defibrillation Pads (Model #DDP-2001): The necessary pads for immediate adult application.
  • Operating Guide (Model #DAC-A2530EN): The comprehensive user manual.
  • Quick Start Card (Model #DAC-2501): A handy, rapid reference guide for starting rescue procedures.
