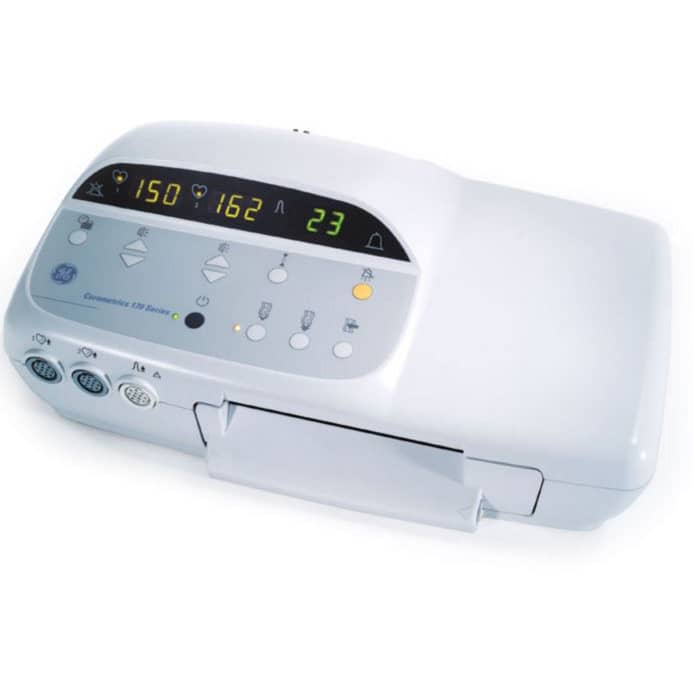

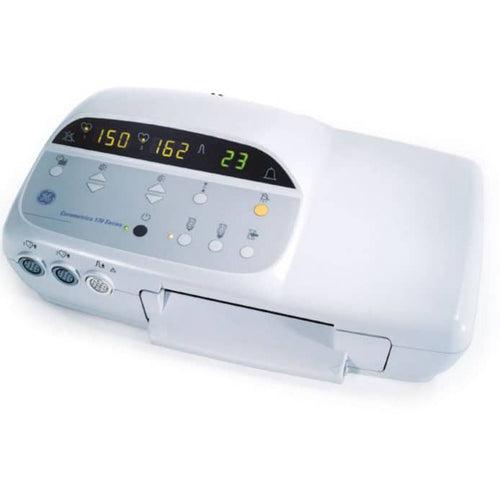

Corometrics 171 Fetal Monitor

The Corometrics 171 Fetal Monitor (Single Fetus) includes new standard 5700 series ultrasound/toco transducers and power cord.

Warranty:

• Certified Refurbished: 90 Days - Parts and Labor.
• Factory New: 1 Year - Parts and Labor.

The 171 Model is an antepartum, single ultrasound for reliable non-stress testing. It is compact and lightweight in design, while maintaining high quality fetal monitoring features ideally suited for office, clinic, home, and hospital settings.

Indications for Use: The monitoring of the fetus during the antepartum period as well as throughout labor and delivery.

Corometrics 171 Fetal Monitor Features

• Large LED Display: Allows easy, at-a-glance confirmation of fetal heart rate and uterine activity.
• Telemetry Interface: Promotes ambulatory monitoring and surveillance; when used with Nautilus watertight transducers, it also promotes hydrotherapy.
• 9-Crystal Pulsed Doppler Ultrasound: Provides a wide-beam profile for high-quality fetal heart rate detection.
• Nautilus Toco: Provides external uterine activity information with an easy-to-use, easy-to-clean, comfortable transducer.
• High/Low Heart Rate Alarm: Notifies clinician when high or low fetal heart rates exceed the user-specified limits.
• Remote Event Marker Interface: Annotates fetal movements perceived by the mother.
• Standard Z-Fold Paper: Easy-to-load and simplifies storage of traces and events.
• Unique Fetal Acoustic Stimulator: Interfaces with the monitor to automatically annotate the strip when generating a vibro-acoustic pulse during an NST.
• Two standard RS232 interfaces for CIS and NIBP.
• Allows ambulatory monitoring with the Corometrics 340 Telemetry interface.

Corometrics 171 Fetal Monitor Specifications

• Technique: Pulsed doppler with auto correlation processing.
• Transducer Type: Loop.
• Pulse Repetition: 2 kHz (all modes).
• Frequency Pulse Duration: 92 μs.
• Transmitter Frequency: 1.151 MHz.
• Spatial-Average Temporal Isata: Less than 5 mW/cm².
• Focal: 20 dB Beam Area 16.6 cm², at a range = 7 cm.
• Peak Instantaneous: 1.8 mW/cm².
• Heart Rate Counting Range: 50 - 210 BPM.
• Leakage: Current complies with IEC 60 1.1 and/or IEC 601.1.1 harmonized national standard; Complies with EN 60601-1-2:2002.

Corometrics 171 Fetal Monitor Configurations

• #MFI-GEH-171: Certified Refurbished.
• #2091059-001-501484: Factory New - Nautilus US (Loop).
• #2091059-001-502985: Factory New - Nautilus US (Button).
• #2091059-001-501483: Factory New - FMD and Nautilus US (Loop).
• #2091059-001-501971: Factory New - FMD and Nautilus US (Button).
