ConMed System 5000 Super Electrosurgical System

The ConMed System 5000 utilizes Dynamic Response Technology to guarantee highly consistent energy delivery and optimal clinical effects.

This technology achieves precision through:

• Continuous Synchronization: It constantly synchronizes current and voltage outputs.
• High-Speed Adjustment: The system samples the output over 450,000 times per second using Advanced Digital Signal Processing (DSP).

This continuous, ultra-fast adjustment ensures a stable tissue effect regardless of the specific surgical mode or environment.

Yes, the ConMed System 5000 is highly versatile, providing a comprehensive range of modes for various procedures. The system features:

• Specialized Modes:
  • Laparoscopic Mode: Enhances safety by limiting output voltages below 2,700 volts to minimize risks like capacitive coupling.
  • Fluids Mode: Boosts energy delivery for procedures conducted in wet environments.
  • Pulse Cut Mode: Provides precise energy bursts for critical dissections.
  • Pulse Coag Mode: Delivers pulsing bursts for controlled hemostasis with visibly less tissue carbonization.
  • General Mode: Offers full power performance for open surgical procedures.

• Monopolar Modes: Includes Pure Cut (up to 300W), Blend 1-3 Cut, Pinpoint Coag, and Standard Coag.

• Bipolar Modes: Features Micro Bipolar (for fine, precise coagulation) and Macro Bipolar (for more energy-intensive applications).

Yes, the ConMed System 5000 is designed for extensive customization and setup flexibility. You can save and recall specific configurations using 9 Memory Locations for set-up and power settings. Additionally, the unit features 9 programmable accessory portals to tailor instrument connections to your needs.

The ConMed System 5000 is equipped with 9 memory locations for saving and quickly recalling your preferred set-up and power settings. This allows for efficient transitions between different procedures.

The Contact Quality Monitoring (CQM) system uses an Improved ARM (Automatic Return Monitor) for enhanced patient safety. The specific monitoring parameters are:

• Range: 10 - 150
• Trip Point: 30%

The ConMed System 5000 includes an AER Defense Smoke Evacuator and a Vacuum Control Assembly to help maintain a clear and safe operating environment.

The Laparoscopic Mode limits open circuit voltages to below 2,700 volts to reduce the risk of burns from capacitive coupling, enhancing patient safety during laparoscopic procedures.

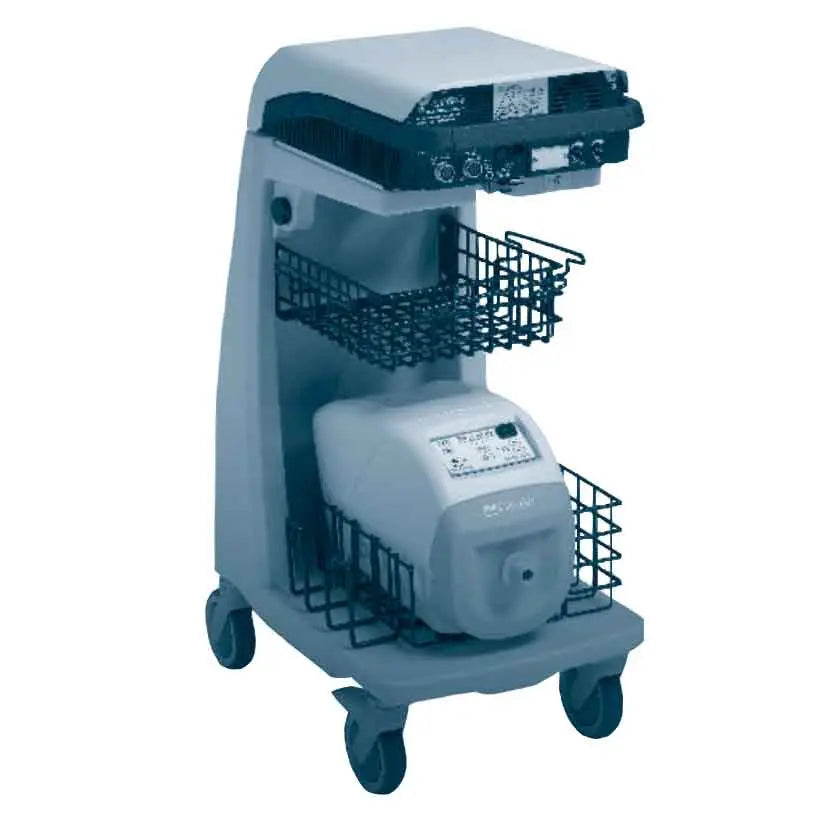

Yes, the ConMed System 5000 is sold as a comprehensive system package designed for immediate use and mobility. It includes all necessary accessories, such as:

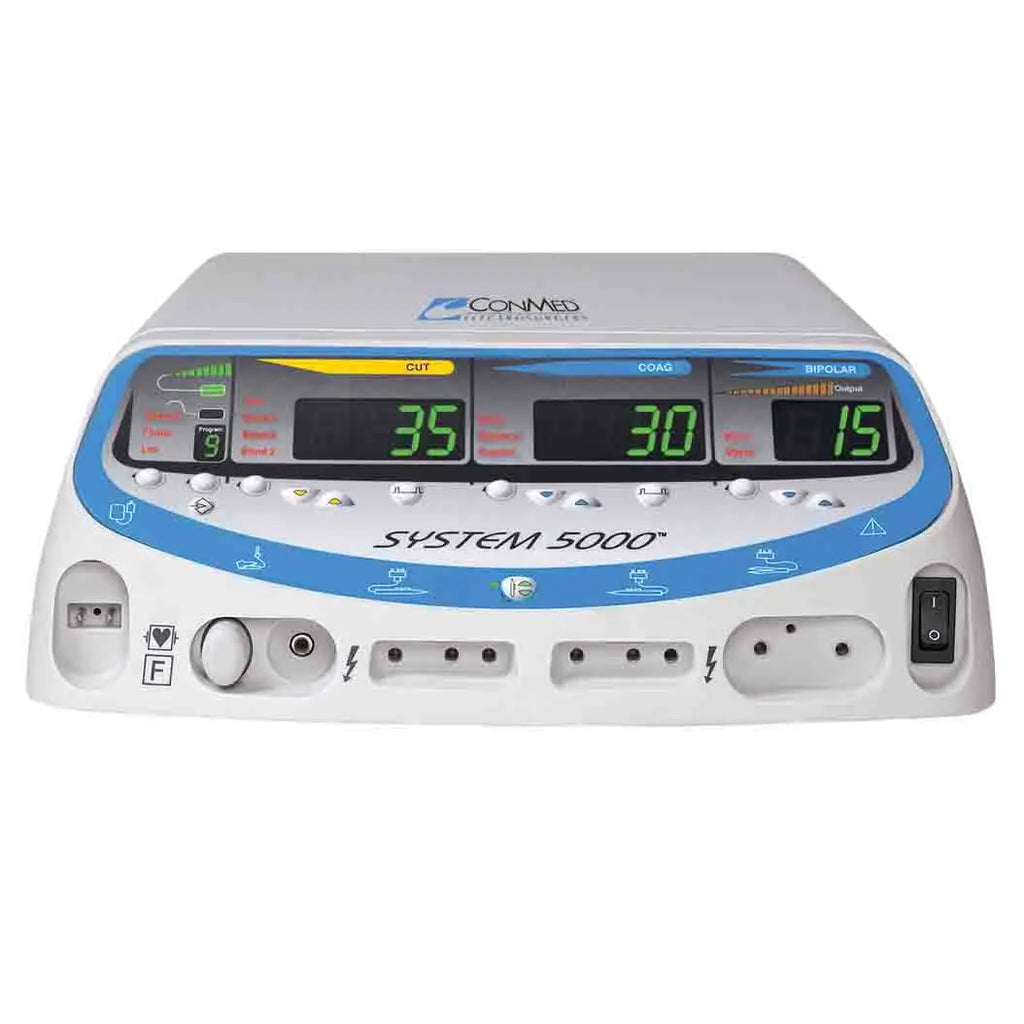

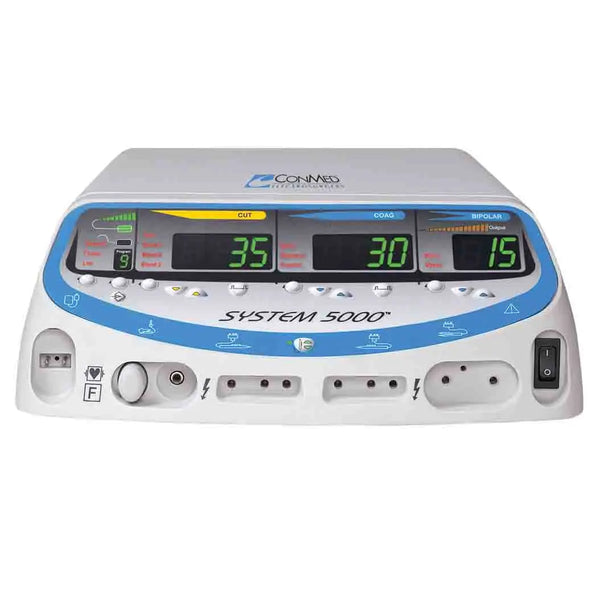

• System 5000 Electrosurgical Unit

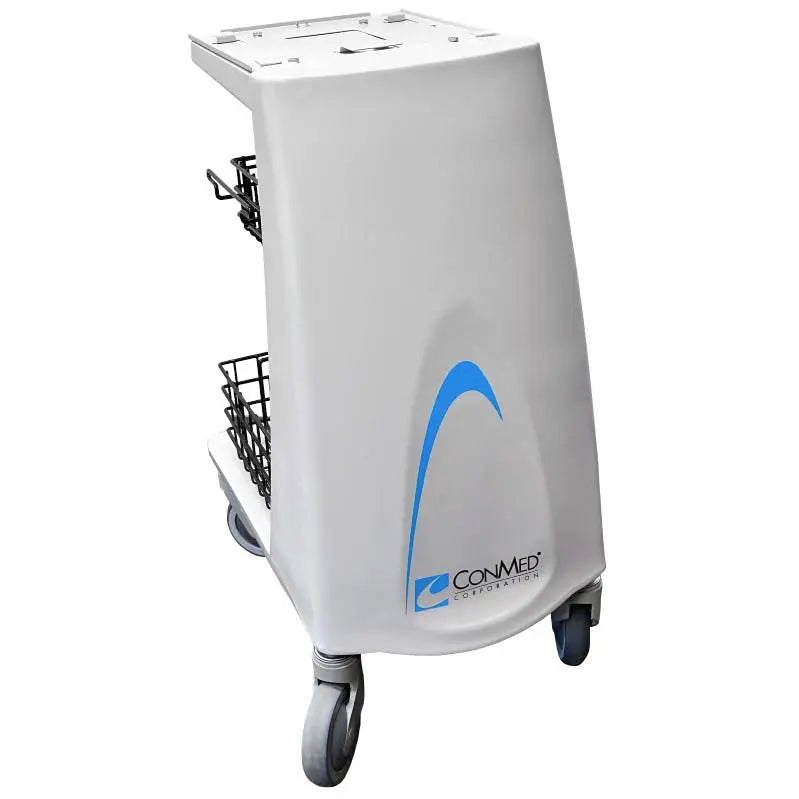

• Mobile Pedestal
• Upper, Lower, and Saddlebag Storage Baskets

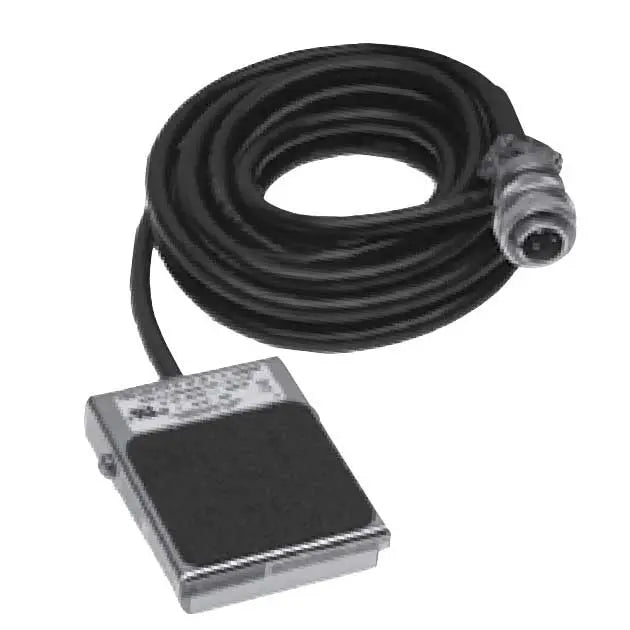

• Monopolar Footswitch (with 15ft Cable)
• Bipolar Footswitch (with 10ft Cable)
• AER DEFENSE Smoke Evacuator
• Vacuum Control Assembly

Yes, the ConMed System 5000 is equipped with multiple advanced safety features to protect both the patient and the operating team:

• Laparoscopic Mode: This specialized mode enhances patient safety by actively limiting open circuit voltages to below 2,700 volts. This minimizes the risks associated with capacitive coupling and insulation breakdown.
• Improved Contact Quality Monitoring (CQM): The system features an Improved ARM (Automatic Return Monitor) that continuously monitors patient-electrode contact quality.
• Dynamic Response Technology: By sampling output over 450,000 times per second, this technology ensures consistent energy delivery and optimal, predictable clinical effects across all modes.

Yes, the system is designed with a convection/fan cooling system to maintain optimal operating temperatures during extended use, ensuring reliable performance throughout procedures.
