ConMed Gore Viabil Biliary Endoprosthesis

ConMed Gore Viabil Biliary Endoprosthesis
Key Features
  • SKU: CNM-VN0804200
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: Not Available
  • Weight: 1.8 lb

  • Learn more:

Contact The Manufacturer
  • MFR: ConMed
    Ships from Manufacturer
  • MPN: VN0804200
  • Phone: (866) 426-6633
$2,930.35

+Free Shipping*

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

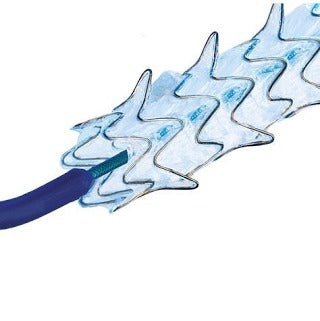

The ConMed Gore Viabil Biliary Endoprosthesis is a self expandable metal stent which is used to alleviate the symptoms caused by malignant biliary obstructions. It uses a four stage twist and pull deployment system for easy placement.

Features

ConMed Gore Viabil Biliary Endoprosthesis Features

  • Allows gradual, controlled deployment with intentional, incremental release of the biliary endoprosthesis.
  • Proprietary curved tip navigates challenging biliary anatomy and transitions for smoother catheter advancement and placement.
  • Ultra-thin, tubular filament pull-line deploys the stent as the interlocking braid is pulled.
  • Accurate positioning promotes a seamless, coordinated deployment process between physician and assistant.
  • Non-foreshortening stent design eliminates repositioning associated with typical push-pull delivery systems.
  • Atraumatic anchoring fin technology minimizes migration.
  • Nitinol wire exoskeleton provides exceptional conformability with uncompromised radial strength.

Specifications

ConMed Gore Viabil Biliary Endoprosthesis Specifications

  • Catheter Length: 79" (200 cm).
  • Outside Diameter: 8.5 French.
  • Shipping Dimensions: 13" x 14" x 1" (33 cm x 35.6 cm x 2.5 cm).
  • Quantity: 1 / Box.

Configurations

ConMed Gore Viabil Biliary Endoprosthesis Configurations

Product Number Stent Diameter Length Shipping Weight
#VN0804200 0.31" (8 mm) 1.57" (40 mm) 1.8 lb (0.82 kg)
#VN0806200 0.31" (8 mm) 2.36" (60 mm) 1.8 lb (0.82 kg)
#VN0808200 0.31" (8 mm) 3.15" (80 mm) 2.3 lb (1.04 kg)
#VN0810200 0.31" (8 mm) 3.94" (100 mm) 2.2 lb (1 kg)
#VN1004200 0.39" (10 mm) 1.57" (40 mm) 1.8 lb (0.82 kg)
#VN1006200 0.39" (10 mm) 2.36" (60 mm) 1.8 lb (0.82 kg)
#VN1008200 0.39" (10 mm) 3.15" (80 mm) 1.6 lb (0.73 kg)
#VN1010200 0.39" (10 mm) 3.94" (100 mm) 2.3 lb (1.04 kg)

Frequently asked questions

What is the primary use of this specialized stent?

The ConMed Gore Viabil Biliary Endoprosthesis is specifically engineered for the palliation (alleviation) of symptoms resulting from malignant biliary obstructions.

Its design emphasizes ease of placement and reliable performance in complex anatomy:

  • Radial Strength: It features a Nitinol wire exoskeleton providing uncompromised radial strength to maintain the patency of the biliary tract.
  • Deployment Control: The four-stage twist and pull system allows for gradual, controlled, and precise placement.
  • Stability: The design is non-foreshortening and includes atraumatic anchoring fin technology to minimize the risk of stent migration.
Is the stent made from high-quality Nitinol?

Yes, the stent structure features superior material construction, utilizing a Nitinol wire exoskeleton. This design is key to the device’s reliable performance and precision:

  • Uncompromised Radial Strength: The Nitinol skeleton ensures robust structural integrity, essential for maintaining patency against malignant biliary obstructions.
  • Exceptional Conformability: Despite its strength, the stent remains highly conformable, allowing it to accurately adapt to the complex walls and curves of the biliary anatomy.
What is the delivery catheter length?

The delivery catheter for the ConMed Gore Viabil Biliary Endoprosthesis measures 79 inches (200 cm). It is designed to facilitate smooth anatomical navigation and precise incremental placement, accommodating challenging procedures. The catheter’s outside diameter is 8.5 French.

What is the delivery catheter's diameter?

The delivery catheter for the ConMed Gore Viabil Biliary Endoprosthesis is designed for smooth advancement and precise placement. Its key dimensions are as follows:

  • Outside Diameter: 8.5 French
  • Length: 79 inches (200 cm)

This system features a proprietary curved tip to help smoothly navigate challenging biliary anatomy.

Does this stent have a controlled deployment system?

Yes, the ConMed Gore Viabil Biliary Endoprosthesis features a highly specialized, controlled delivery system designed for precise placement:

  • Controlled Deployment Mechanism: The stent utilizes a proprietary four-stage twist and pull deployment system. This allows for gradual, controlled release through an intentional, incremental mechanism, maximizing operator control.
  • Non-Foreshortening Design: A crucial feature is the non-foreshorterning structure, which means the stent maintains its intended length during deployment. This eliminates the common need for repositioning seen with typical push-pull systems.
  • Anatomical Navigation: The delivery system includes a proprietary curved tip engineered to smoothly navigate challenging biliary anatomy and transitions for seamless advancement.
Does the stent feature a non-foreshortening design?

Yes, the ConMed Gore Viabil Biliary Endoprosthesis is specifically engineered with a non-foreshortening design.

This feature provides significant benefits for accurate placement and procedural efficiency:

  • Precise Positioning: The stent maintains its exact intended length during deployment, ensuring accurate coverage of the target area.
  • Eliminates Adjustments: It removes the need for positional adjustments or repositioning often associated with typical push-pull delivery systems, streamlining the procedure.
Does this stent have an anchoring mechanism?

Yes, the ConMed Gore Viabil Biliary Endoprosthesis is specifically engineered to minimize the risk of migration. It utilizes proprietary atraumatic anchoring fin technology.

This technology is designed to securely anchor the self-expandable metal stent within the biliary duct post-implantation, ensuring it maintains its accurate position for reliable symptom palliation.

What stent diameters are available for this device?

The ConMed Gore Viabil Biliary Endoprosthesis is available in two primary diameters to accommodate various anatomical needs:

  • 8 mm
  • 10 mm

For each diameter, you can select from four different lengths, ensuring precise placement: 40 mm, 60 mm, 80 mm, and 100 mm. This range of configurations allows for optimal palliative treatment of malignant biliary obstructions.
