Chattanooga Intelect Legend XT System

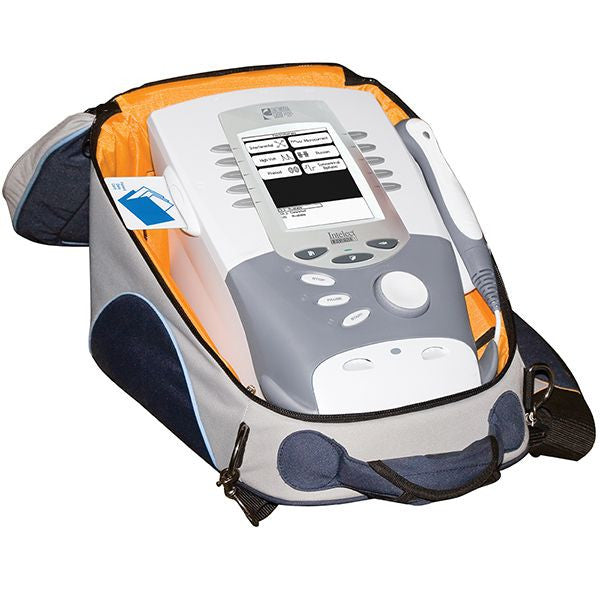

Chattanooga Intelect Legend XT System in Carry Bag
Chattanooga Intelect Legend XT System in Carry Bag
Chattanooga Intelect Legend XT System in Carry Bag
Chattanooga Intelect Legend XT System in Carry Bag
Key Features
  • SKU: DJO-2763
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: 2 Years
  • Independent electrotherapy channels
  • FSTN LCD high contrast, monochromatic user interface
  • Optional Therapy System Cart

  • Learn more:

Contact The Manufacturer
  • MFR: DJO Global
    Ships from Manufacturer
  • MPN: 2763
  • Phone: (800) 336-6569
$3,484.73 $2,353.00
Est. Delivery:

Earn [points_amount] when you buy this item.

Shop with Confidence

Free Shipping

Free Returns

Payment Options

Price Match Guarantee

Sales Tax Exemption

Dedicated Account Managers

Description

The Chattanooga Intelect Legend XT System is available as an Electrotherapy unit or as a Combination unit (electrotherapy and ultrasound). Both types of units include a patient data card and electrotherapy leadwires for 4 channels. The Combination unit also includes a 5 cm2 Sound Head Applicator (not with Electrotherapy unit).

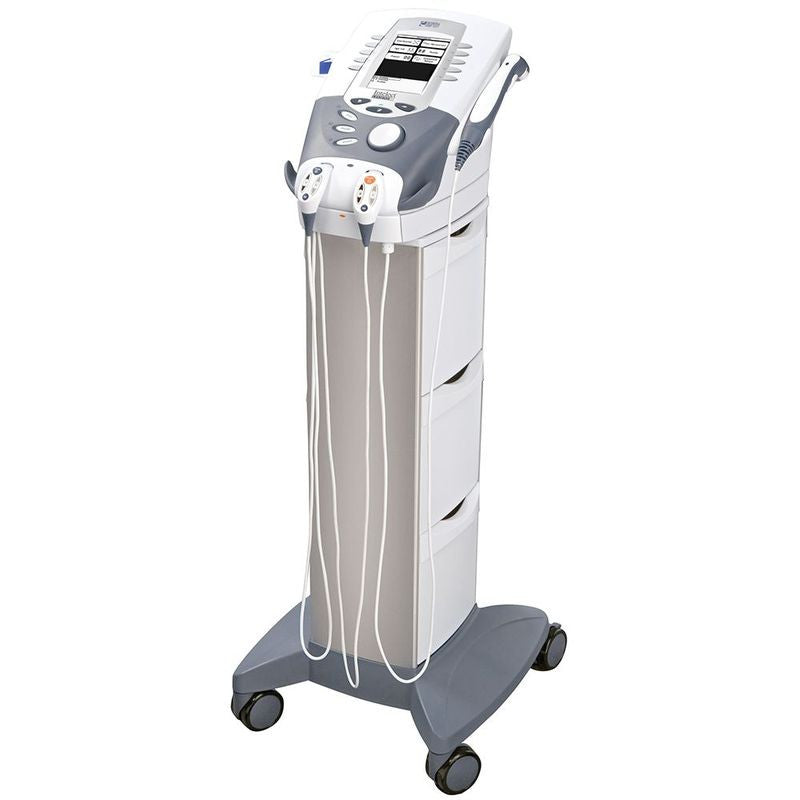

Note: Combination Unit pictured above with cart. The Electrotherapy units DO NOT include Ultrasound. Ultrasound is included with the Combination unit only.

Warranty: 2 Years.

The Intelect Legend XT System is known for its user-friendly, versatile and ergonomic design. The system's ability to be used for a wide range of therapies allows it to be called one of the most advanced systems on the market today. Six clinical waveforms are available for the patient use: Interferential, Premodulated, High Volt, Russian, Symmetrical Biphasic, and Microcurrent.

The Electrotherapy unit contains two independent electrotherapy channels, but can be expanded to four. The Combination unit has four soundhead applicator sizes (1 cm2, 2 cm2, 5 cm2, and 10 cm2), with watertight soundheads for underwater therapy. These soundheads can operate with a dual frequency ultrasound at 1 or 3.3 MHz, and have pulsed or continuous duty cycle settings (10%, 20%, 50%, and 100%).

When the device is in use, clinicians can keep track of patient treatments through the use of patient data cards. Simply insert the card into the attached card reader on the unit and record patient data for further analysis or future treatment. In addition, an optional color-coded operator remote allows treatment stop, start, pause, and changes in amplitude during treatments.

Features

Chattanooga Intelect Legend XT System Features

  • An ergonomic design, both patented and award winning.
  • 5" (13 cm) FSTN LCD high contrast, monochromatic user interface.
  • Independent electrotherapy channels that can be expanded from two to four.
  • Six Clinical Waveforms: Interferential, Premodulated, High Volt, Russian, Symmetrical Biphasic, and Microcurrent.
  • Dual frequency ultrasound. 1 or 3.3 MHz with Pulsed or Continuous Duty Cycles (10%, 20%, 50%, 100%).
  • Soundhead applicators ergonomically designed and sized 1 cm2, 2 cm2, 5 cm2, and 10 cm2 with the ability for use in underwater therapy.
  • Optional Therapy System Cart is ideal for organization of cables and supplies.

Specifications

Chattanooga Intelect Legend XT System Specifications

Combination Therapy System Specifications

  • Mains Power: 100 - 240 VAC, 50/60 Hz, 1.0 A.
  • Power Consumption: 1000 W.
  • Weight: 14.2 lb (6.44 kg) (standard unit - no cart).
  • Dimensions: 12.75" x 11.4" x 8.75" (32.4 cm x 28.9 cm x 22.2 cm).
  • Shipping Weight:
    • 2760: 14.2 lb.
    • 2791: 50 lb.
    • 2788: 16.5 lb.
    • 2795: 51 lb.
  • Electrical Safety Class: Class 1, Electrotherapy Type BF, Ultrasound Type B.
  • Safety Tests: UL/IEC/EN 60601-1, IEC / EN 60601-1-2, IEC 60601-2-5, IEC 60601-2-10.

Electrotherapy System Specifications

  • Mains Power: 100 - 240 VAC, 50/60 Hz, 1 A.
  • Power Consumption: 1000 W.
  • Weight: 7 lb (3.2 kg) without cart.
  • Dimensions: 12.75" x 11.4" x 8.75" (32.4 cm x 28.9 cm x 22.2 cm).
  • Electrical Safety Class: Class 1, Electrotherapy Type BF.
  • Safety Tests: UL/IEC/EN 60601-1, IEC / EN 60601-1-2, IEC 60601-2-5, IEC 60601-2-10.

Configurations

Chattanooga Intelect Legend XT System Configurations

Note: The Electrotherapy units DO NOT include Ultrasound. Ultrasound is included with the Combination unit only.

  • #2763: 2-Channel Electrotherapy Unit.
  • #2793: 2-Channel Electrotherapy Unit with Cart.
  • #2786: 4-Channel Electrotherapy Unit.
  • #2797: 4-Channel Electrotherapy Unit with Cart.
  • #2760: 2-Channel Combination Unit.
  • #2791: 2-Channel Combination Unit with Cart.
  • #2788: 4-Channel Combination Unit.
  • #2795: 4-Channel Combination Unit with Cart.

Accessories

Chattanooga Intelect Legend XT System Accessories

  • #2781: Channel 3 and 4 Electrotherapy Module.
  • #2780ASY: Therapy Cart.
  • #2767: Battery Module: Self-contained Nickel Metal Hydride battery automatically and continually changes when unit is plugged into mains power supply. **Can only be used with the 2-Channel units.
  • #27469: Patient Interrupt Switch: Channels 1 and 2.
  • #27470: Patient Interrupt Switch: Channels 3 and 4.
  • #72852: Black Rubber Carbon 3" Electrodes, 2X.
  • #72853: Red Rubber Carbon 3" Electrodes, 2X.
  • #10648: Nylatex Wrap: 2.5" X 2.4", 2X.
  • #27465: Patient Data Cards, 25/Pack.
  • #27508: Operator Remote Channels 1 and 2.
  • #27079: Operator Remote Channels Channels 3 and 4.
  • #27381: 1 cm2 Sound Head Applicator.
  • #27382: 2 cm2 Sound Head Applicator.
  • #27384: 10 cm2 Sound Head Applicator.
  • #27133: Intelect Legend XT Carry Bag, Large.
