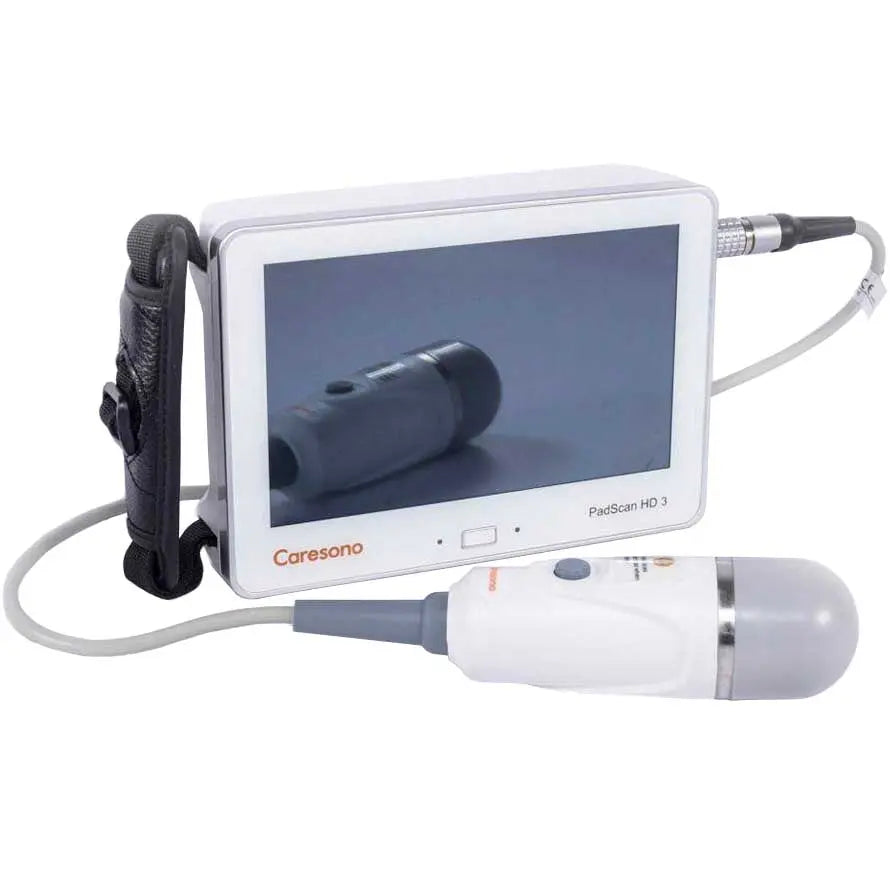

Caresono PadScan HD3 Bladder Scanner

Caresono PadScan HD3 Bladder Scanner
Caresono PadScan HD3 Bladder Scanner - Back
Caresono PadScan HD3 Bladder Scanner

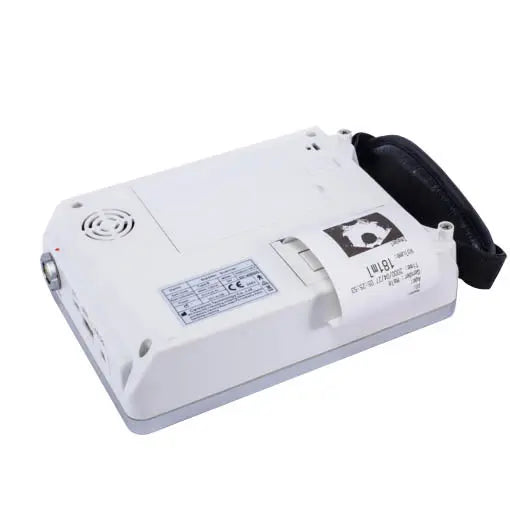

Caresono PadScan HD3 Bladder Scanner - Back

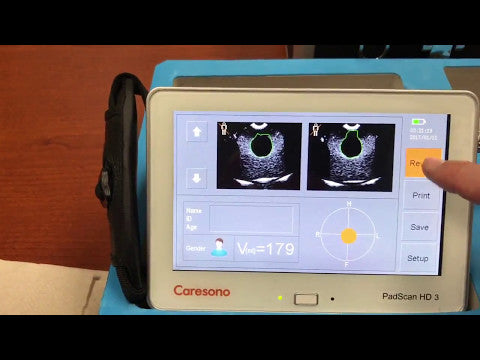

Caresono PadScan HD3 Bladder Scanner Tutorial video
Key Features
  • SKU: MDP-HD3
  • Condition: Factory New
  • Warranty: 2 Years
  • Measures the urinary bladder volume quickly, safely, and automatically, all in a non-invasive manner
  • Real-time, high resolution 3D ultrasound images
  • Built-in thermal printer on back
  • No annual calibration due to patented core technology

  • Learn more:

Contact The Manufacturer
  • MFR: Caresono Ships from Manufacturer
  • MPN: HD3
  • Phone: (888) 850-4597
$9,500.00 $8,500.00
Est. Delivery:
Earn 1 Point on this purchase. Learn more

Shop with Confidence

Free Shipping

Free Returns

Payment Options

Price Match Guarantee

Sales Tax Exemption

Dedicated Account Managers

Description

The Caresono PadScan HD3 Bladder Scanner includes an ultrasound transducer, probe cup, docking stand, two batteries, USB data line, AC wall adapter, 14 V power connection line, printer paper, CD (with upper computer software and user manual), charger, screwdriver, and a carry case with two keys.

Warranty: 2 Years.

The PadScan HD3 features real-time, high resolution 3D ultrasound images and measures the urinary bladder volume quickly, safely, and automatically, all in a non-invasive manner.

A bladder scanner is a non-invasive, portable ultrasound device that provides a virtual 3D image of the bladder and the volume of urine retained within the bladder. Retained urine is a reservoir for bacteria and pathogens, which can cause urinary tract infections, leading to damage of the renal structures, pain, and sepsis.

Bladder scans are commonly utilized in acute care, long-term care, and rehabilitation environments, as well as in physicians' offices. Without the use of a bladder scanner, urinary retention is assessed by performing an invasive "in and out" urinary catheterization, which can be uncomfortable and pose a direct risk of introducing more pathogens into the bladder, increasing a patient's risk of infection.

Features

Caresono PadScan HD3 Bladder Scanner Features

  • No annual calibration due to patented core technology.
  • Small, compact design with easy operation and accuracy.
  • Touch screen.
  • "Pad" style unit with carry handle.
  • 3D mechanical sector probe (patented design).
  • Built-in thermal printer on back.
  • Caresono Bladder Scan Algorithm: Cutting edge technology in bladder volume calculation.
  • USB export (for saving patient data).
  • Built-in Li-ion battery.
  • One stop data processing workflow and patient data storage.
  • Double ultrasonic images display.
  • 3D bladder image projection.
  • Tissue Harmonic Imaging.
  • Current Interface Languages: English, French, German, Spanish, Chinese, Danish, Finnish, Portuguese, Swedish, Dutch, and Norwegian.

Specifications

Caresono PadScan HD3 Bladder Scanner Specifications

  • Standard Ultrasonic Frequency of Operation: 2.5 MHz.
  • Volume Measure Range: 0 - 999 ml.
  • Volume Measure Accuracy: ± 15%.
  • Volume Display Resolution: 1 ml.
  • Scan Time: Less than 5 seconds.
  • Monitor Size: 7" TFT-LCD.
  • Dimensions: 185 mm x 130 mm x 50 mm.
  • Weight: 2.65 lb (1200 g) including probe.
  • Power: 50 W.
  • Power at the State of Charging: 40 - 120 VA.
  • Battery Capacity: 2600 mAh.
  • Battery Charge Time: 2 hours.
  • Continuous Scanning Time: 3 hours.
  • Standby Time: 8 hours.

Accessories

Caresono PadScan HD3 Bladder Scanner Accessories

The following accessories are compatible and commonly purchased with the PadScan HD3 Bladder Scanner:

  • #Cart_HD3: PadScan HD3 Bladder Scanner Cart.
  • #HD3_probe: PadScan HD3 Bladder Scanner Probe.
  • #HD3/5_paper: PadScan HD3 Paper (5 Rolls/Box).
