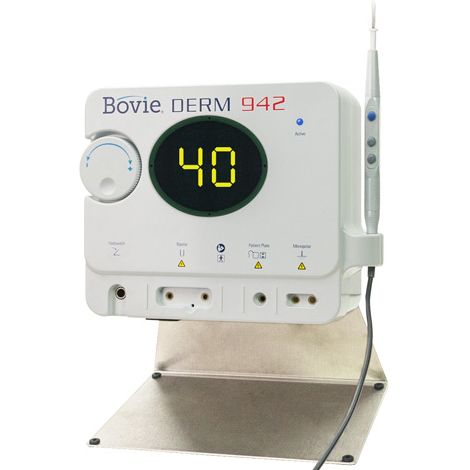

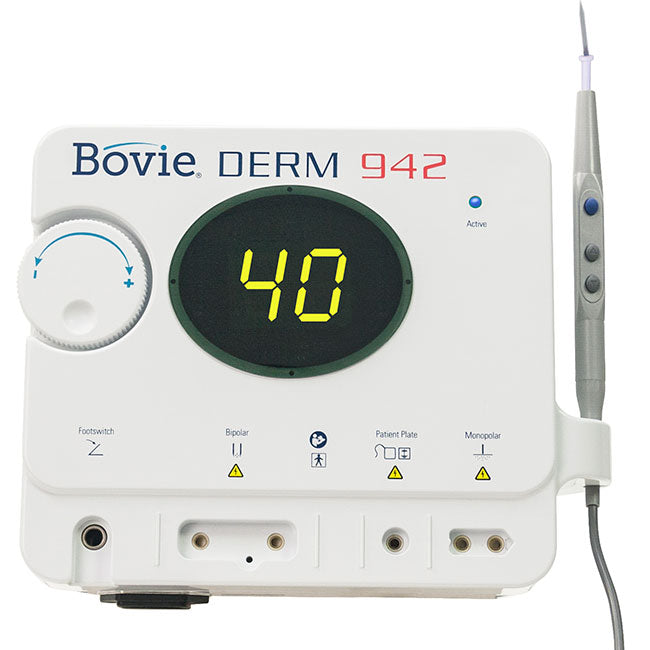

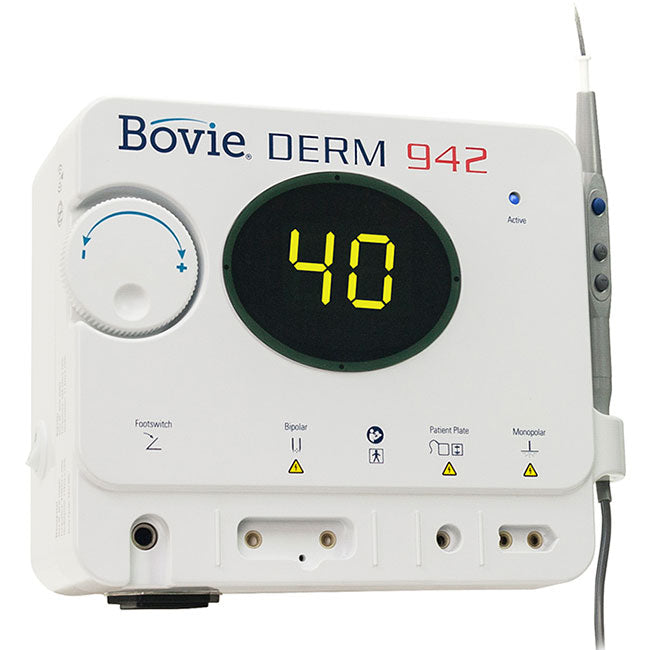

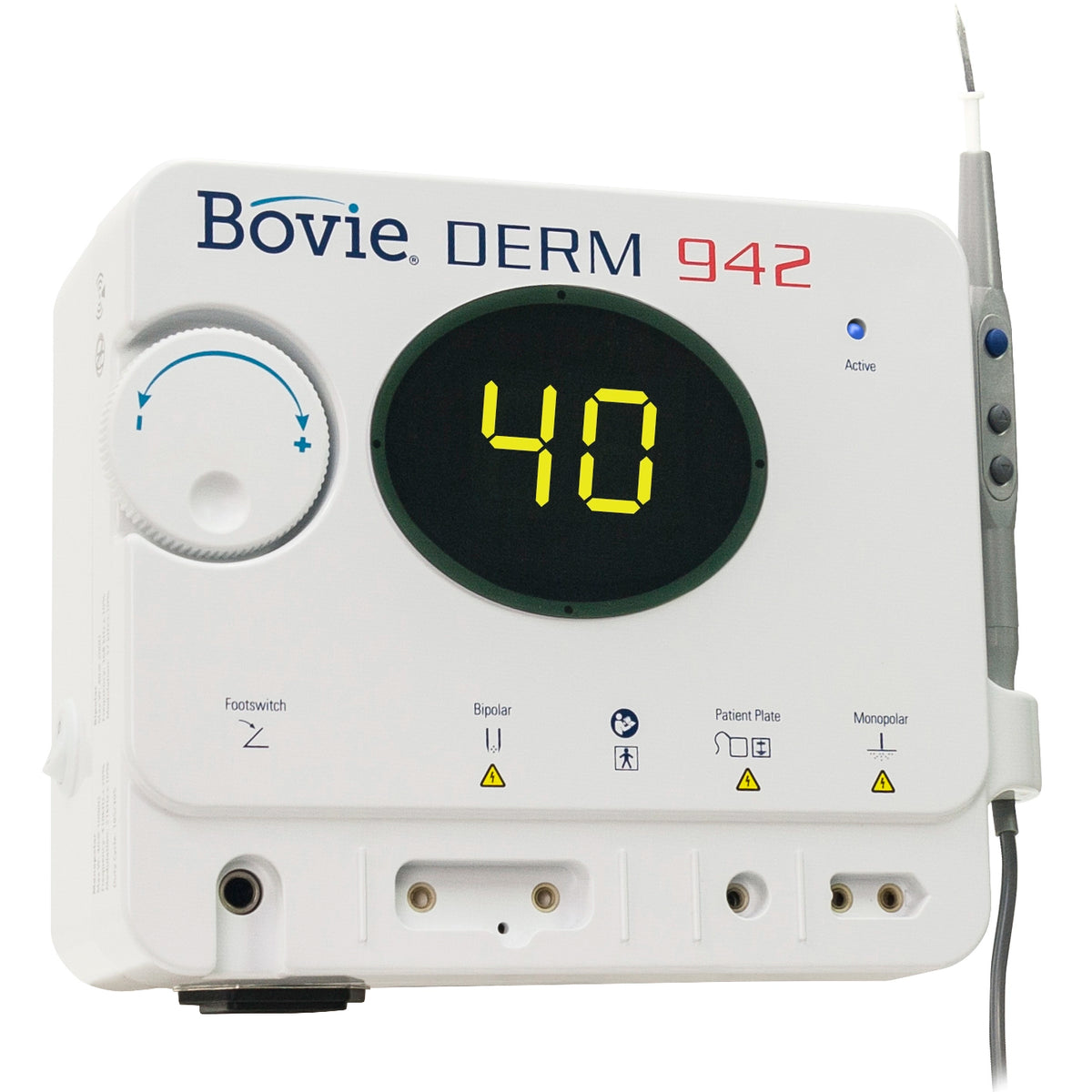

Bovie DERM 942 High Frequency Desiccator

Yes, the Bovie Derm 942 is designed with comprehensive safety features, centered around continuous self-monitoring, to ensure safe and reliable operation.

Key Safety Features

• Continuous Monitoring and Error Display: The unit constantly monitors its internal functions. If an operational issue is detected, it will immediately shut off the RF output and display a specific error code, maximizing user and patient safety.
• Isolated RF Output: This fundamental technology is incorporated to enhance patient safety during electrosurgical procedures.
• Passive Cooling and Durability: The unit uses chip technology with reduced internal components to minimize heat generation, which not only prolongs the unit’s lifespan but also reduces risks associated with overheating.
• No Grounding Pad Required: The system’s design eliminates the need for a separate grounding pad, streamlining workflow without compromising necessary safety standards.

Yes, the Bovie DERM 942 includes a comprehensive starter package designed to support clinical workflows immediately. The included components are:

• 3-Button Power Control & Autoclavable Handpiece (#A902)
• Dermal Tips: A selection of 18 total tips, including:
  • 5x Sharp Dermal Tips (Non-Sterile, #A804)
  • 2x Sharp Dermal Tips (Sterile, #A805)
  • 5x Blunt Dermal Tips (Non-Sterile, #A806)
  • 2x Blunt Dermal Tips (Sterile, #A807)
  • 2x DERM-Elite Premium Blunt Dermal Tips (Non-Sterile, #A806DE)
  • 2x DERM-Elite Premium Blunt Dermal Tips (Sterile, #A807DE)
• Handpiece Accessories: 2x Disposable Handpiece Sheaths (#A910)
• Mounting & Power: A Wall Mount Kit (#A837) and a 110 VAC medical-grade power cord.

Yes, the Bovie Derm 942 offers excellent versatility in power control, allowing users to choose the best method for their procedure:

• 3-Button Power Control Handpiece: This autoclavable handpiece is included and allows for immediate adjustments at the point of use.
• Rotary Knob: Located on the front panel of the main unit for manual setting.
• Footswitch (Optional): This method is available and recommended for hands-free activation and steady power adjustments during procedures.

For enhanced accuracy, the power output is adjustable in very fine 1/10th watt increments (from zero to ten watts in both monopolar and bipolar settings), with a total maximum output of 40 watts.

No, the Bovie Derm 942 does not require a grounding pad for operation. It features an isolated RF output design, which eliminates the need for a separate grounding pad, simplifying setup and enhancing user convenience.

Yes, the included 3-Button Power Control & Autoclavable Handpiece (#A902) is designed to be autoclavable, ensuring proper sterilization and hygiene. It comes with a warranty covering 1 year or 25 autoclave cycles, whichever occurs first.

Yes, the Bovie Derm 942 is specifically engineered with internal design improvements to effectively minimize heat generation, thereby extending the operational life of the device.

Key features contributing to thermal management include:

• Reduced Component Count: The unit incorporates the latest chip technology and a reduced number of internal parts, which significantly minimizes heat generated during high-frequency operation.
• Passive Cooling: The Derm 942 relies on a Passive Cooling System for silent and reliable temperature regulation.

Yes, the Bovie Derm 942 is engineered for clinical versatility and fully supports both monopolar and bipolar output capabilities.

Key performance highlights include:

• Precise Power Delivery: You can adjust the power output in precise 1/10th watt increments to ensure accuracy during delicate procedures.
• Ground-Reference Design: For standard monopolar procedures, the unit is designed to operate without the need for a grounding pad, which simplifies your setup and improves daily workflow efficiency.
• Flexible Control: Power output is easily managed via the rotary knob on the console, the handpiece, or an optional footswitch.

Yes, the Bovie Derm 942 High Frequency Desiccator is designed with a universal power input, allowing it to be used in various clinical environments globally without needing external voltage conversion.

Key electrical specifications include:

• Input Voltage: 100 VAC to 240 VAC
• Line Frequency: 50 - 60 Hz

Yes, the Bovie Derm 942 is engineered for precision and control in dermatological procedures. It features adjustable power output in 1/10th watt increments to ensure the necessary accuracy for delicate tasks.

To manage your power settings effectively during a procedure, you have three versatile options:

• Rotary Knob: Easily adjust settings directly on the front panel.
• 3-Button Power Control Handpiece: Adjust output directly from the handpiece for streamlined efficiency.
• Footswitch: An optional footswitch can be utilized for hands-free adjustments.

The system offers a maximum power output of 40 watts, providing reliable performance for a wide variety of minor surgical applications.

The Bovie Derm 942 delivers a powerful maximum output of 40 watts, applicable for both monopolar (fulguration) and bipolar electrosurgical treatments. Its design ensures precision and safety, extending the capabilities of dermatological procedures.
