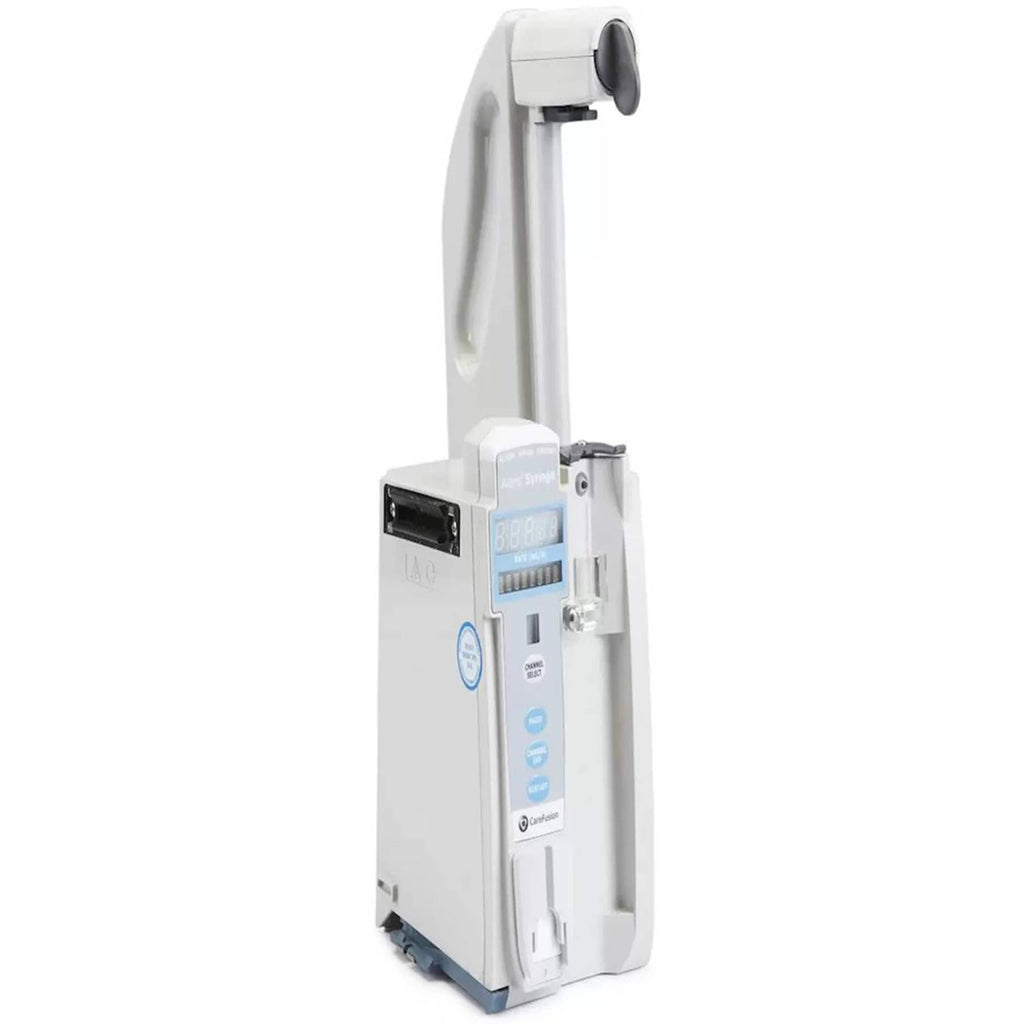

BD Alaris 8110 Syringe Module

BD Alaris 8110 Syringe Module Features

• Features two IUI Connectors (left and right).
• Utilizes the following status indicators - alarm (red), infusing (green), and standby (yellow).
• Rate display, channel (module) message display, and channel (module) identification make the 8110 easy to use.
• Simply press the module release latch to easily remove the module.

BD Alaris 8110 Syringe Module Specifications

Pump Module:

• Critical Volume: Maximum over-infusion that can occur in the event of a single fault condition is 0.6 mL.
• Dimensions: 3.3" (W) x 8.9" (H) x 5.5" (D).
• Equipment Orientation: To ensure proper operation, Alaris System must remain in an upright position.
• Fluid Ingress Protection: IPX1, Drip Proof.
• Infusion of Air, Means to Protect Patient from: Ultrasonic Air-in-Line Detection. Maximum single bolus size = selectable 50, 75, or 250 microliters nominal (500 microliters in Anesthesia Mode).
• Infusion Pressure, Maximum: 654 mmHg (Maximum Occlusion Alarm Threshold plus tolerance).
• KVO (Keep Vein Open) Rate: Factory default setting is 1 mL/h if set rate is 1 mL/h or above; or set rate, if rate is 0.9 mL/h or below.
• KVO Selection Range: KVO rate can be set in System Configuration from 0.1 to 20 mL/h in 0.1 mL/h increments.
• Occlusion Alarm Thresholds:
• Pump Mode: 525 mmHg at rates ≥ 30 mL/h. Varying level based on rate and patient back–pressure at rates < 30 mL/h.
• Selectable Mode: User selected, 50 to 525 mmHg in 25 mmHg increments.
• Operating Principle: Positive displacement.
• Shock Protection: Type CF, Defibrillator Proof patient applied part.
• Weight: 2.6 lb.

Syringe Module:

• Critical Volume: Maximum over-infusion which can occur in the event of a single-fault condition will not exceed 2% of nominal syringe fill volume during loading and 1% of maximum syringe travel after syringe loading.
• Dimensions: 4.5" (W) x 15" (H) x 7.5" (D).
• Equipment Orientation: To ensure proper operation, Alaris System must remain in an upright position.
• Flow Rate Programming: Flow rate range is from 0.01 to 999 mL/h.
• Fluid Ingress Protection: IPX1, Drip Proof.
• Infusion Pressure, Maximum:
• Without Pressure Sensing Disc: Approximately 800 mmHg (actual occlusion pressure varies based on syringe size and manufacturer).
• With Pressure Sensing Disc: 1060 mmHg.
• KVO (Keep Vein Open) Rate: Factory default setting is 1 mL/h if set rate is 1 mL/h or above; or set rate, if rate is 0.9 mL/h or below.
• KVO Selection Range: KVO rate can be set in System Configuration, in 0.01 mL/h increments, as follows.
• 0.01 to 2.5 mL/h (0.01 to 0.09 mL/h available for 1 mL and 3 mL syringes).
• Occlusion Alarm Thresholds:
• Without Pressure Sensing Disc: Three settings - Low, Medium, High.
• With Pressure Sensing Disc: User selected, 25 to 1000 mmHg in 1 mmHg increments.
• Operating Principle: Positive displacement.
• Shock Protection: Type CF, Defibrillator Proof.
• Weight: 4.5 lb.
