Ambu SPUR II Disposable Resuscitator

Ambu SPUR II Disposable Resuscitator
Ambu SPUR II Disposable Resuscitator with tube reservoir

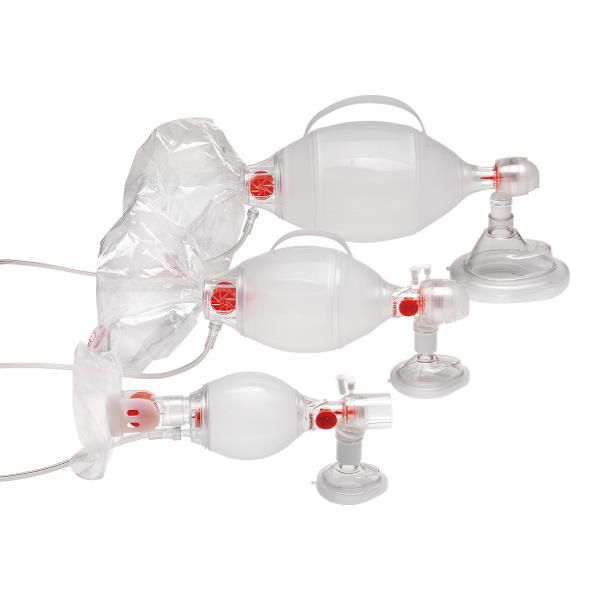

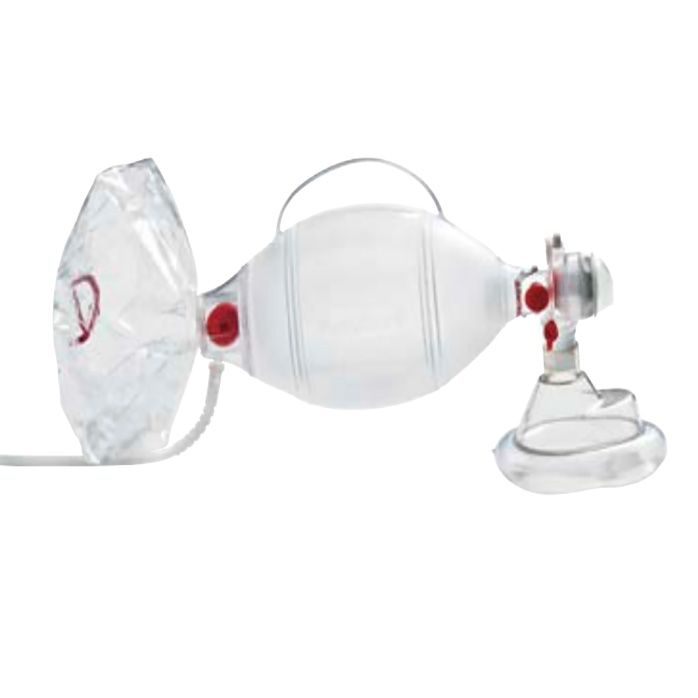

Ambu SPUR II Disposable Resuscitator with bag reservoir

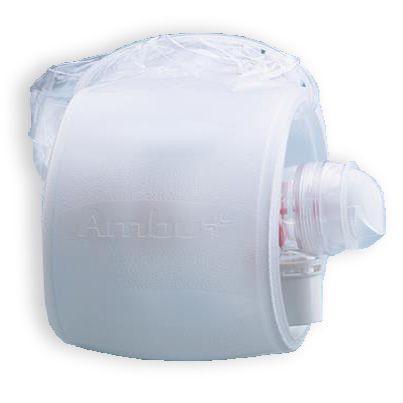

Ambu SPUR II Disposable Resuscitator folded for easy storage
Ambu SPUR II Disposable Resuscitator
Ambu SPUR II Disposable Resuscitator with tube reservoir
Ambu SPUR II Disposable Resuscitator with bag reservoir
Ambu SPUR II Disposable Resuscitator folded for easy storage

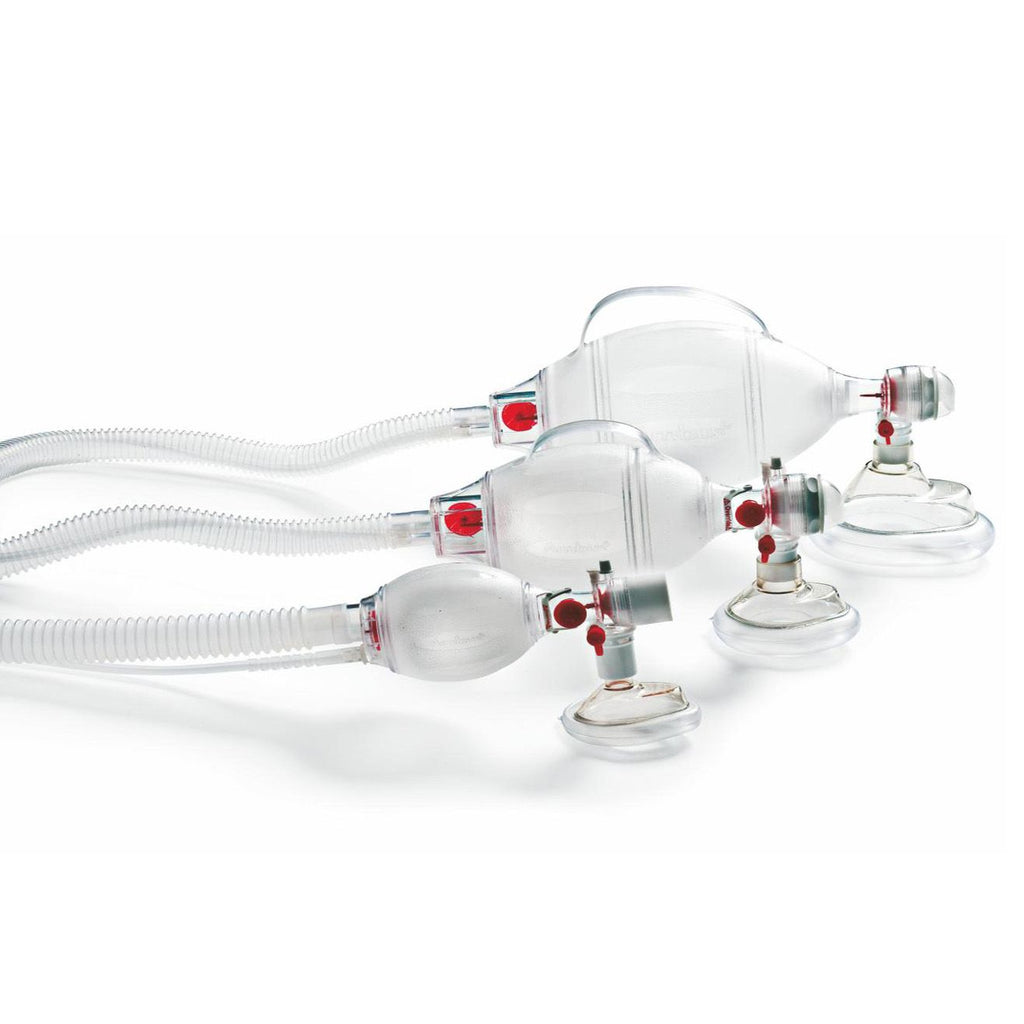

Ambu Spur II Infant
Ambu Spur II Pediatric
Ambu Spur II Adult
Key Features
  • SKU: ABU-521611000
  • Condition:
    Condition: Factory New
  • Country of Origin: China
  • Warranty:
    Warranty: 1 Year
  • Weight: 8.36 lb
  • The ergonomic, lightweight design makes extended ventilations less fatiguing
  • Incredibly fast recoil time allows for rapid ventilation
  • Utilizes a single shutter valve system for reliable functionality
  • Swivel between valve and mask permits 360° positioning in relation to the patient

  • Learn more:

  • Purchasing Restriction: Medical license or prescription required
Contact The Manufacturer
  • MFR: Ambu
    Ships from MFI Medical
  • MPN: 521611000
  • Phone: (800) 262-8462
$101.19

+ Free Shipping

Est. Delivery:

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

The Ambu SPUR II Disposable Resuscitator is part of a complete family of resuscitator, which includes infant, pediatric, and adult sizes.

Warranty: 1 Year.

Designed to provide users with exceptional tactile and visual feedback during resuscitation, Ambu SPUR II Disposable Resuscitators are highly responsive with minimal mechanical resistance for optimal stroke volume and recoil. Classified as environmentally safe and fully disposable, the SPUR II is the only disposable resuscitator made from an SEBS polymer. Eliminates all risk of cross contamination. Comes in individual, resealable carrying bags and complete with one or more masks and any special accessories.

Features

Ambu SPUR II Disposable Resuscitator Features

  • The ergonomic, lightweight design makes extended ventilations less fatiguing.
  • Incredibly fast recoil time allows for rapid ventilation.
  • Utilizes a single shutter valve system for reliable functionality.
  • Swivel between valve and mask permits 360° positioning in relation to the patient.
  • Low valve resistance makes for unimpeded airflow.
  • The SafeGripTM surface makes for secure handling in stressful situations.
  • Integrated handle ensures user comfort and uniform compression.
  • The Manometer and PEEP Valve are easily attached.
  • The thin-walled compression bag allows for lung compliance and "feel".
  • The M-Port enables sidestream measuring of etCO2 or quick medication delivery without disconnecting the Ambu SPUR II from the ET tube.
  • Uses a soft splashguard to ensure user safety.
  • MR Conditional.

Specifications

Ambu SPUR II Disposable Resuscitator Specifications

MRI Conditions

  • The Ambu SPUR II is MR conditional and can be used in the MRI environment if the following conditions are met.
    • Static magnetic field of 3.0 T or less.
    • Maximum spatial field gradient of 4,000 gauss/cm (40 T/m).
  • Not intended to be in direct contact with a patient undergoing an MRI procedure.

Materials

  • Bag: SEBS.
  • Patient Valve Housing: SB.
  • Patient Connector: PP.
  • Splash Guard (Only Available with Adult and Pediatric Versions): SEBS.
  • Expiratory Connector: PP.
  • Patient Valve Disc: LSR (Liquid Silicone Rubber).
  • Luer Connector: HIPS (High Impact Polystyrene).
  • Cap on M-Port: SEBS.
  • Locking Ring: PC.
  • Valve in Pressure Limiting Valve: ABS.
  • Lock in Pressure Limiting Valve: ABS.
  • Override Clip in Pressure Limiting Valve: PC.
  • Spring in Pressure Limiting Valve: Stainless steel.
  • Inlet Valve Housing: PC.
  • Inlet Valve Housing Cap:
    • Adult and Pediatric:SB.
    • Infant: PC.
  • Inlet Valve Disc: LSR (Liquid Silicone Rubber).
  • Reservoir Bag: LDPE (Low-density polyethylene plastics).
  • Reservoir Tube: EVA (Ethylene Vinyl Acetate copolymer) + PP (Polypropylene).
  • Oxygen Tube: PVC.
  • Manometer Port Cap / Tube Adaptor: PE.
Adult Pediatric Infant
Stroke volume one hand 600 ml / two hands 1000 ml 450 ml 150 ml
Resuscitator volume 1475 ml 635 ml 220 ml
Dimensions (length x diameter) 295 x 127 mm 234 x 99 mm 168 x 71 mm
Weight incl. reservoir O2 tube/mask 314 g 215 g 140 g
Pressure-limiting valve 4.0 kPa (40 cm H2O) 4.0 kPa (40 cm H2O) 4.0 kPa (40 cm H2O)
Dead space <6 ml <6 ml <6 ml
Inspiratory resistance without O2 Max. 0.50 kPa (5.0 cm H2O) at 50 l/min Max. 0.50 kPa (5.0 cm H2O) at 50 l/min Max. 0.10 kPa (1.0 cm H2O) at 5 l/min
Expiratory resistance Max. 0.27 kPa (2.7 cm H2O) at 50 l/min Max. 0.27 kPa (2.7 cm H2O) at 50 l/min Max. 0.2 kPa (2.0 cm H2O) at 5 l/min
Bag reservoir volume 2600 ml 2600 ml 300 ml
Tube reservoir Length: 245 mm (10")
Diameter: 22 mm (7/8")
Volume: 100 ml
Patient connector: Outside 22 mm male (ANSI/ISO) 22 mm male (ANSI/ISO) 22 mm male (ANSI/ISO)
Patient connector: Inside 15 mm female (ANSI/ISO) 15 mm female (ANSI/ISO) 15 mm female (ANSI/ISO)
Expiratory connector (for PEEP valve attachment) 30 mm male (ISO) 30 mm male (ISO) 30 mm male (ISO)
Forward and backward leak Not measurable Not measurable Not measurable
M-Port Standard Luer LS 6 Standard Luer LS 6 Standard Luer LS 6
Recommended operating temperature -18°C to +50°C -18°C to +50°C -18°C to +50°C
Storage Tested at -40°C and + 60°C according to EN ISO 10651-4 Tested at -40°C and + 60°C according to EN ISO 10651-4 Tested at -40°C and + 60°C according to EN ISO 10651-4

Configurations

Ambu SPUR II Disposable Resuscitator Configurations

MPN Configuration Quantity per Box
521611000 Tube Reservoir, Medium Mask 6
540212000 Bag Reservoir, Pop-off Valve, Infant Mask 12
520211000 Bag Reservoir, Medium Mask 12
530213000 Bag Reservoir, Pop-off Valve, Toddler Mask 12
520211001 Bag Reservoir, Medium Mask, PEEP Valve 12
530213030 Bag Reservoir, Pop-off Valve, Toddler Mask, Manometer 12
540212030 Bag Reservoir, Pop-off Valve, Infant Mask, Manometer 12
530213031 Bag Reservoir, Pop & PEEP Valve, Toddler Mask, Manometer 12
544212031 Tube Reservoir, Pop & PEEP Valve, Infant Mask, Manometer 12

Frequently asked questions

Is the resuscitator available for all patient sizes?

Yes, the Ambu SPUR II Disposable Resuscitator is available in a complete range of sizes, ensuring coverage for all patient groups from infants to adults. Each size is designed for optimal responsiveness and delivers an appropriate stroke volume:

  • Adult: Offers a resuscitator volume of 1470 ml and provides a maximum stroke volume of 1000 ml (using two hands).
  • Pediatric: Offers a resuscitator volume of 635 ml and provides a stroke volume of 450 ml.
  • Infant: Offers a resuscitator volume of 220 ml and provides a stroke volume of 150 ml.

This size-specific design, combined with the thin-walled compression bag, ensures exceptional tactile and visual feedback, allowing users to accurately sense patient lung compliance and deliver effective ventilation.

Is the Ambu SPUR II designed for single use?

Yes, the Ambu SPUR II is a fully disposable, single-use resuscitator.

Its disposable nature provides several key advantages:

  • Safety: Eliminates the risk of cross-contamination between patients, supporting stringent infection control protocols.
  • Material: It is the only disposable resuscitator made from an SEBS polymer, ensuring complete disposability and environmental safety.
Does it use the innovative SEBS polymer?

Yes, the Ambu SPUR II is unique because its compression bag is constructed using the SEBS (Styrene-Ethylene-Butylene-Styrene) polymer. This design choice ensures safety and superior user control.

Key benefits of using the SEBS polymer include:

  • Hygiene: The fully disposable design, utilizing SEBS, eliminates the risk of cross-contamination, making it environmentally safe for disposal.
  • Superior Feedback: The thin-walled compression bag provides exceptional tactile and visual feedback for gauging patient lung compliance.
  • Fast Response: This construction supports an incredibly fast recoil time, allowing for rapid ventilation rates.
What is the pressure-limiting valve setting on the Ambu SPUR II?

The pressure-limiting valve is set to 4.0 kPa (40 cm H2O) for all sizes (infant, pediatric, and adult).

Is the Ambu SPUR II resuscitator MR Conditional?

Yes, the Ambu SPUR II Disposable Resuscitator is MR Conditional up to 3.0 T. This means it can be safely used in MRI environments under specific conditions, including a static magnetic field of up to 3.0 T and a spatial field gradient of 4,000 gauss/cm.

How does the M-Port enhance clinical function?

The integrated M-Port is a critical feature that enhances the clinical versatility of the Ambu SPUR II by enabling essential monitoring and medication delivery without disconnecting the resuscitator from the patient. This ensures continuous, uninterrupted ventilation during critical moments.

The M-Port provides two primary functions, utilizing a Standard Luer LS 6 connector:

  • End-Tidal CO2 (etCO2) Monitoring: It allows for sidestream measurement of etCO2, which is vital for real-time assessment of the effectiveness of ventilation.
  • Rapid Medication Delivery: It facilitates the quick administration of necessary medications directly into the circuit.
What is the recommended operating temperature range?

The Ambu SPUR II is designed for reliable use across various clinical and emergency environments. The recommended operating temperature range is -18°C to +50°C.

For durability assurance, the device has also been successfully tested for storage stability at extreme temperatures, ranging from -40°C to +60°C.

Does the resuscitator come in various patient sizes?

Yes, the Ambu SPUR II Disposable Resuscitator is available in three distinct configurations to ensure effective and precise ventilation across all patient populations: Adult, Pediatric, and Infant.

Specific volumes and capacities for each size are detailed below:

  • Adult:
    • Resuscitator Volume: 1475 ml
    • Max Stroke Volume: 1000 ml (using two hands)
    • Weight (including reservoir/mask): 314 g
  • Pediatric:
    • Resuscitator Volume: 635 ml
    • Max Stroke Volume: 450 ml
    • Weight (including reservoir/mask): 215 g
  • Infant:
    • Resuscitator Volume: 220 ml
    • Max Stroke Volume: 150 ml
    • Weight (including reservoir/mask): 140 g

All three sizes incorporate key safety and performance features, including a reliable single shutter valve, a minimal dead space of less than 6 ml, and a pressure-limiting valve uniformly set at 40 cm H2O (4.0 kPa).

Does the resuscitator use high-quality SEBS polymer?

Yes, the Ambu SPUR II is uniquely constructed using the SEBS polymer (Styrene-Ethylene-Butylene-Styrene), making it the only disposable resuscitator of its kind. This design delivers key advantages for safety and performance:

  • Eliminates Cross-Contamination: The fully SEBS construction ensures the unit is 100% disposable, removing cross-contamination risks.
  • Precise Tactile Feedback: The thin-walled compression bag is engineered to provide excellent tactile and visual feedback regarding lung compliance.
  • Secure Handling: The ergonomic, lightweight design includes the patented SafeGrip™ surface for secure, non-slip handling, reducing user fatigue.
Does the valve allow 360° mask positioning?

Yes, the Ambu SPUR II features a swivel between the valve and the mask that permits 360° positioning around the patient. This functionality significantly enhances maneuverability and flexibility, making it easier for caregivers to maintain proper positioning during manual ventilation.
