Ambu Neuroline 720 Surface Electrode

Ambu Neuroline 720 Surface Electrode
Ambu Neuroline 720 Surface Electrode
Ambu Neuroline 720 Surface Electrode
Ambu Neuroline 720 Surface Electrode
Key Features
  • SKU: ABU-72001-K-12
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: Until Use/Expiration
  • Weight: 0.59 lb
  • Wet gel provides the lowest impedance for best signal quality and ensures quick electrical contact
  • Strong skin-friendly adhesive ensures the electrode stays put
  • Foam backing for easy placement
  • Small size makes it ideal for use on the face

  • Learn more:

  • Purchasing Restriction: Medical license or prescription required
Contact The Manufacturer
  • MFR: Ambu
    Ships from MFI Medical
  • MPN: 72001-K/12
  • Phone: (800) 262-8462
$208.24

+Free Shipping*

Est. Delivery:

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

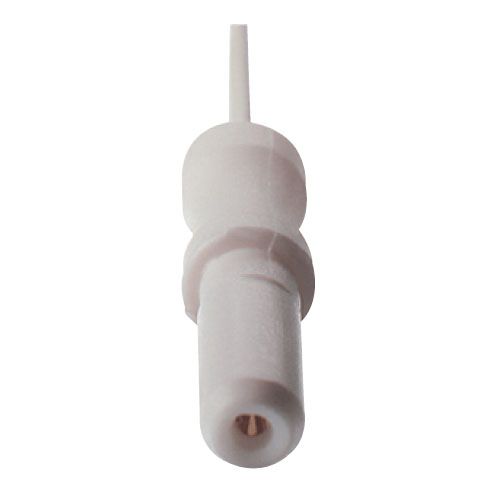

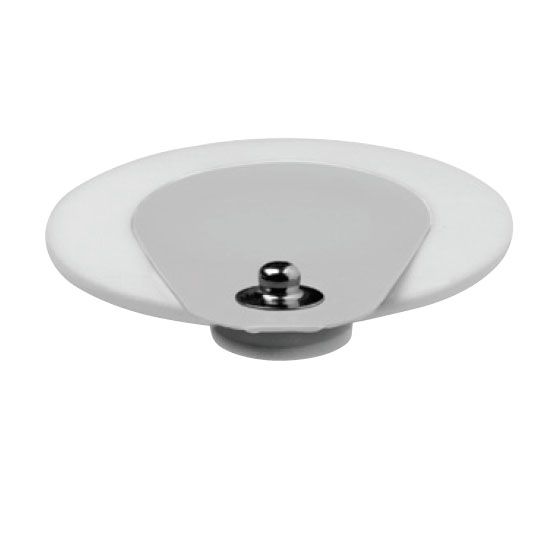

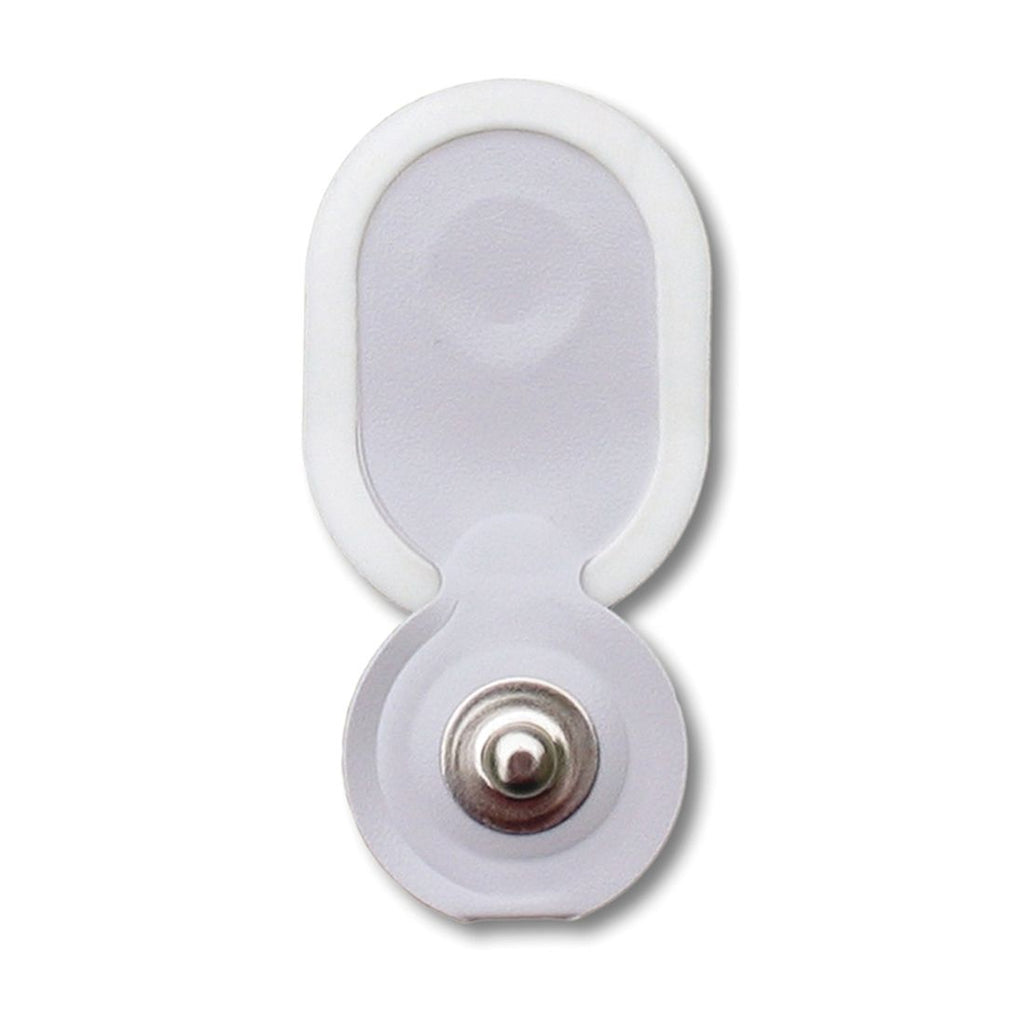

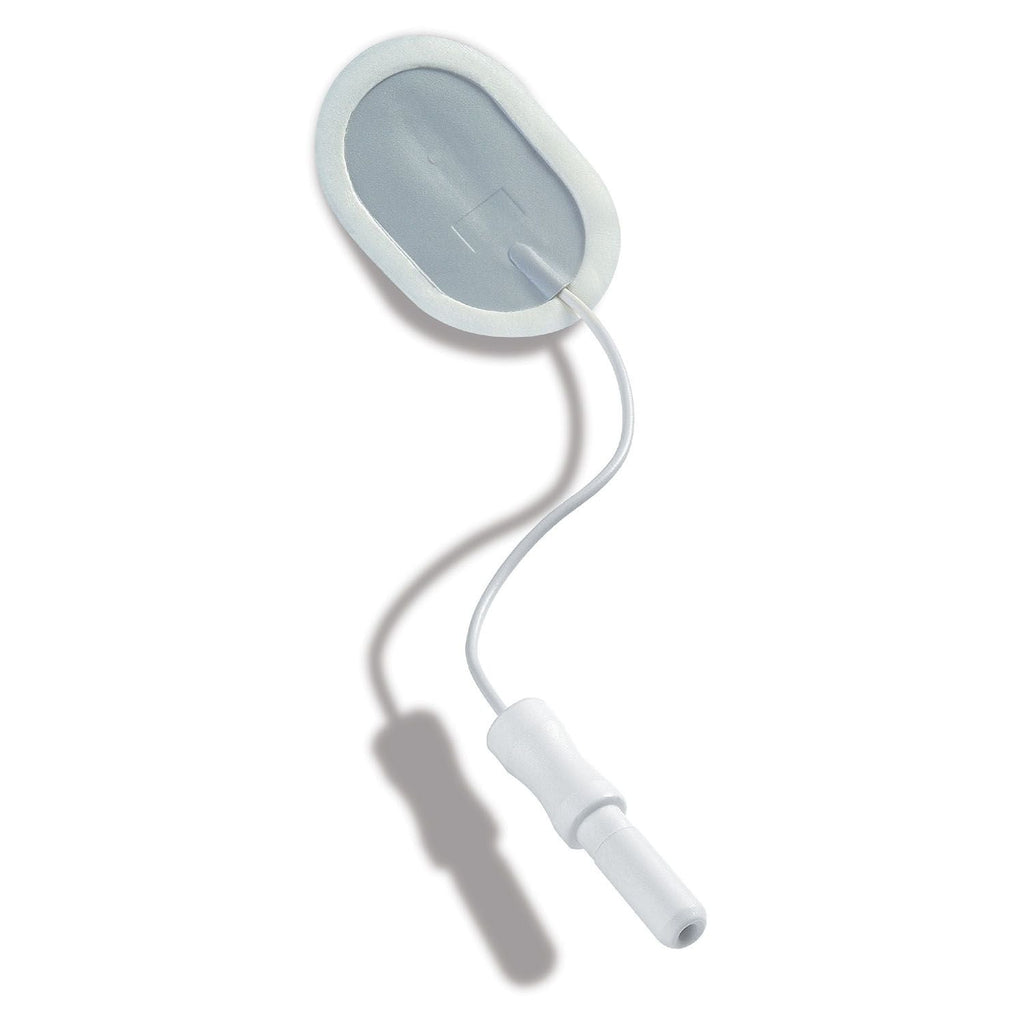

The Ambu Neuroline 720 Surface Electrode is available as an offset press-stud or with a choice of a pre-attached lead wire that varies in lengths from 4" (10 cm) to 80" (200 cm).

Warranty: Until Use or Expiration (1 Year Shelf Life for Unopened Pouches/2 Year Shelf Life on Snap Connectors).

The Ambu Neuroline 720 Surface Electrode is a self-adhesive electrode featuring a highly conductive wet gel for an instant signal. The strong yet skin-friendly adhesive makes the electrode ideal for sleep registration, as the electrode stays in place during the entire examination, even if the patient sweats. The small size makes it easy to use on the facial area and on children.

Features

Ambu Neuroline 720 Surface Electrode Features

  • Wet gel provides the lowest impedance for best signal quality and ensures quick electrical contact.
  • Strong skin-friendly adhesive ensures the electrode stays put.
  • Foam backing for easy placement.
  • Small size makes it ideal for use on the face.
  • Pre-wired or press stud options.
  • Single patient use only.
  • No risk of cross-contamination.
  • Recommended Applications:
    • Intraoperative Monitoring (IOM).
    • Surface Electromyography (EMG).
    • Nerve Conduction Studies (NCS).
    • Polysomnography (PSG).
    • Brainstem Auditory Evoked Potentials (BAEP).
    • Reference electrode.

Specifications

Ambu Neuroline 720 Surface Electrode Specifications

  • 720 Electrode Size (Max L x W or diameter): 30 mm x 22 mm (1.18" x 0.87").
  • Snap Connector Electrode Size (Max L x W or diameter): 45 mm x 22 mm (1.77" x 0.87").
  • Skin Contact Size (Max L x W or diameter): 30 mm x 22 mm (1.18" x 0.79").
  • Adhesive Area: 461 mm2.
  • Height excluding connector/wire: 1.6 mm.
  • Sensor Material: Silver/Silver Chloride (Ag/AgCl).
  • Gel System: Wet gel.
  • Sensor Area: 18/28 mm2.
  • Gel Area/Measuring Area: 95 mm2.
  • PVC-free Electrode: No.
  • Latex-free Electrode: Yes.
  • PVC-free Lead Wire: No.
  • Latex-free Lead Wire: Yes.
  • PVC-free Packaging: Yes.
  • Bio-compatible: Yes.
  • Sponge: Polyurethane foam (PUR).
  • Outer Carrier Material: Polyvinyl chloride foam (PVC).
  • Outer Adhesive: Acrylate.
  • Upper Part: Polivinyl chloride film (PVC).
  • Fitting: Polypropylene (PP).
  • Connector (stud): Nickel-plated brass.
  • Lead-wire Core: Copper.
  • Lead-wire Insulation: Polyvinyl chloride (PVC).
  • Lead-wire Connector: Brass/polypropylene (PP).
  • Cap: Polyethylene (PE).

Configurations

Ambu Neuroline 720 Surface Electrode Configurations

Item Number Lead Wire Length (cm) Lead Wire Length (inches) Connector Type Wire Color Qty Per Pouch Pouches per Box Electrodes per Box
#72001-K/12 10 cm 4" 1.5 mm White 12 20 240
#72010-K/10 100 cm 40" 1.5 mm White 10 42 420
#72015-K/10 150 cm 60" 1.5 mm White 10 42 420
#72015-K/C/12 150 cm 60" 1.5 mm Red/Green/Black/White 12 40 480
#72020-K/C/12 200 cm 80" 1.5 mm Red/Green/Black/White 12 40 480
#72000-S/25 None None Stud None 25 40 1,000
