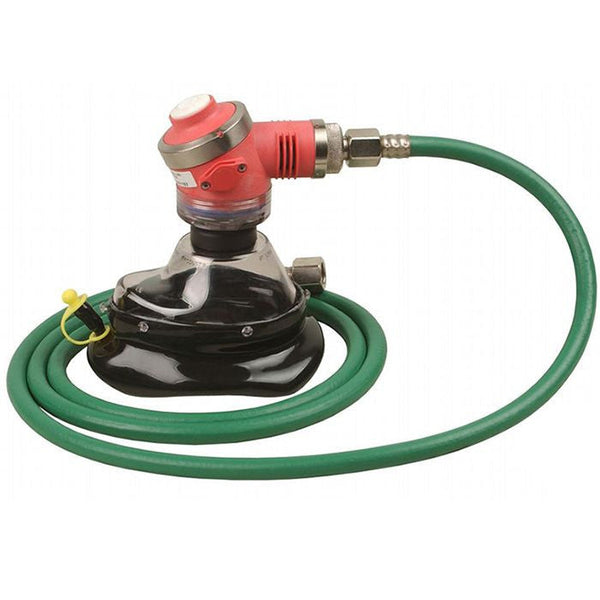

Allied Healthcare EMT Resuscitator

Allied Healthcare EMT Resuscitator
Key Features
  • SKU: AHC-L576-010
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: 1 Year
  • Weight: 1.1 lb

  • Learn more:

Contact The Manufacturer
  • MFR: Allied Healthcare
    Ships from MFI Medical
  • MPN: L576-010
  • Phone: (800) 444-3954
$508.52 $402.25

+Free Shipping*

Select a Configuration
Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Allied Healthcare EMT Resuscitator is an advanced, oxygen-powered, manually-triggered breathing device. It delivers 100% oxygen to patients, allowing emergency personnel with versatility and a reliable performance over existing hand-held devices.

Warranty: 1 Year.

The Allied Healthcare EMT Resuscitator can be attached to a pressure-regulated oxygen cylinder or other oxygen source, and can be fitted with an mask, tracheotomy tube, or endotracheal tube. It triggers airflow manually with breaths, at a flow rate of up to 115 lpm. It will also maintain a pre-set flow of 40 lpm, per the AHA guidelines, to prevent gastric insufflation.

The Allied Healthcare EMT Resuscitator features anti-asphyxiation ports built into the design, allowing patients to breathe outside air in the event of oxygen source failure. In addition, a 360° swivel oxygen inlet prevents twisting and tangling lines. The rest of the design is easy to clean,, and easy to disassemble when not in use. It's also lightweight and compact for transportation.

Features

Allied Healthcare EMT Resuscitator Features

  • Easily disassembles for cleaning and maintenance.
  • Oxygen powered resuscitation.
  • Compact and durable for harsh environments and emergency situations.
  • Compatible with a mask, endotracheal tube, or tracheotomy tube.
  • 360° swivel oxygen inlet stops twisting or tangling lines.

Specifications

Allied Healthcare EMT Resuscitator Specifications

  • Supply Pressure: 50+/-5 psig (344+/-34 kPa).
  • Pressure to Initiate a Breath: 0 to -2.5 cm H2O.
  • Manually Triggered Flow: 40+/-5 lpm at 50 psig (344 kPa) supply.
  • Demand Flow: 100 lpm at 0 to -5 cm H2O pressure.
  • Peak Demand Flow: 115+/-10 lpm at 50 psig (344 kPa) inlet; -5 cm H2O or less to obtain 100 lpm.
  • Pressure Limit: 60+/-5 cm H2O.
  • Secondary Pressure Relief: 65-80 cm H2O maximum.
  • Expiratory Resistance: less than 2.5 in. (6.35 cm) H2O @ 160 lpm flow.
  • Anti-Asphyxiation Entrainment: 55 lpm minimum at -5 cm H2O pressure.
  • Storage Temperature: -40° F to 160° F (-40 C to 71.1 C).
  • Operating Temperature:-30° F to 125° F (-34.4 C to 51.7 C).
  • Inlet Fitting: Standard male oxygen DISS (swivel).
  • Filter: 25 micron wire mesh.
  • Outlet: 22 mm outside diameter x 15 mm inside diameter.
  • Materials: Body, Cap and Button - liquid crystal polymer; Outlet - polysulfone; Inlet fitting - plated brass.
Configuration Package Weight Shipping Weight Shipping Dimensions
#L576 0.65 lb (0.29 kg) 0.85 lb (0.39 kg) 7" x 5" x 5" (17.8 cm x 12.7 cm x 12.7 cm)
#L576-010 1.5 lb (0.68 kg) 2 lb (0.91 kg) 12" x 9" x 7" (30.5 cm x 23 cm x 17.8 cm)
#L576-020 1.75 lb (0.79 kg) 3.2 lb (1.5 kg) 16" x 16" x 6" (40.6 cm x 40.6 cm x 15.2 cm)

Configurations

Allied Healthcare EMT Resuscitator Configurations

  • #L576: EMT Resuscitator.
  • #L576-010: EMT Resuscitator with 6' (1.8 m) oxygen hose.
  • #L576-020: EMT Resuscitator with 6' (1.8 m) oxygen hose and adult cuffed mask.

Accessories

Allied Healthcare EMT Resuscitator Accessories

The Allied Healthcare EMT Resuscitator is commonly purchased with:

  • Adult Cuffed Mask, reusable, size 4 (Standard) or 5 (Large).
  • 6" Oxygen hose with DISS fittings.

Literature

Allied Healthcare EMT Resuscitator Literature

Allied Healthcare EMT Resuscitator Brochure

Frequently asked questions

Is the EMT Resuscitator oxygen-powered?

Yes, the Allied Healthcare EMT Resuscitator is a high-performance, oxygen-powered, manually-triggered breathing device designed for emergency situations. It requires a supply pressure of 50 5 psig and delivers 100% oxygen upon activation.Key operational features that enhance its performance and safety include:* AHA-Compliant Flow Control: The device maintains a precise manually-triggered flow rate of 40 5 liters per minute (lpm), aligning with American Heart Association (AHA) guidelines to help prevent gastric insufflation.* High Demand Capacity: It can achieve a peak demand flow rate of up to 115 lpm for critical ventilation needs.* Integrated Safety: Anti-asphyxiation ports are built in to allow the patient to breathe ambient air if the primary oxygen source fails.* Enhanced Usability: The resuscitator features a 360 swivel oxygen DISS inlet connection, preventing hose twisting and tangling during use.

What types of tubes or masks is the Allied Healthcare EMT Resuscitator compatible with?

This resuscitator is versatile and compatible with a mask, endotracheal tube, or tracheotomy tube, offering flexibility in emergency scenarios.

What are the precise oxygen flow specifications?

The Allied Healthcare EMT Resuscitator is an oxygen-powered device engineered for precise, high-performance ventilation, consistently delivering 100% oxygen. Its key flow rate specifications ensure both compliance and performance:

  • Manually Triggered Flow: The flow is preset at 40
    ± 5 lpm     (liters per minute) at 50 psig supply. This controlled rate complies with AHA guidelines to help mitigate the risk of gastric insufflation.
  • Peak Demand Flow: The device’s maximum ventilation capability is 115
    ± 10 lpm     (at 50 psig inlet).
  • Spontaneous Demand Flow: For a spontaneously breathing patient, the device delivers up to 100 lpm (at 0 to -5 cm H2O pressure).

Additionally, a critical safety feature is the anti-asphyxiation entrainment: if the primary oxygen source fails, the patient can draw a minimum of 55 lpm of ambient air.

Does the resuscitator prevent asphyxiation if oxygen fails?

Yes, the Allied Healthcare EMT Resuscitator includes a crucial safety mechanism: anti-asphyxiation ports.

Should the primary oxygen supply fail, these ports automatically open, allowing the patient to draw ambient air for breathing.

Specifically, the device ensures an anti-asphyxiation entrainment rate of 55 lpm minimum at -5 cm H2O pressure.

What is the storage temperature range for the resuscitator?

The Allied Healthcare EMT Resuscitator is built for durability in extreme environments. It can be safely stored within the range of -40° F to 160° F (-40 C to 71.1 C).

Is the Allied Healthcare EMT Resuscitator easy to clean and maintain?

Yes, the Allied Healthcare EMT Resuscitator is designed for easy cleaning and maintenance as it can be readily disassembled. This ensures hygienic and reliable performance in emergency situations.

What are the high-quality construction materials?

The Allied Healthcare EMT Resuscitator is built with durable, medical-grade materials engineered for reliable performance in demanding emergency environments. The primary construction materials are:

  • Body, Cap, and Button: Liquid crystal polymer
  • Outlet: Polysulfone
  • Inlet Fitting: Plated brass

This robust construction allows the device to operate effectively across a wide range of temperatures, from -30° F to 125° F (-34.4° C to 51.7° C). Additionally, the plated brass inlet fitting features a 360° swivel connection, which significantly enhances usability by preventing the oxygen hose from twisting or tangling.

Who is the Allied Healthcare EMT Resuscitator best suited for?

The Allied Healthcare EMT Resuscitator is ideal for emergency medical technicians, first responders, and healthcare professionals who need a reliable method for delivering 100% oxygen.

Does the L576-010 configuration include an oxygen hose?

Yes, the L576-010 configuration of the Allied Healthcare EMT Resuscitator includes a 6’ (1.8 m) oxygen hose.

Are robust safety mechanisms included?

Yes, the Allied Healthcare EMT Resuscitator is engineered with several robust safety features essential for patient protection during emergency use:

  • Anti-Asphyxiation Ports: These ports automatically allow the patient to breathe ambient air if the primary oxygen source fails. They provide a minimum entrainment flow of 55 lpm.
  • AHA-Compliant Flow Control: The manually-triggered flow rate is precisely maintained at 40 ± 5 lpm. This pre-set flow rate adheres to American Heart Association (AHA) guidelines, helping to prevent the risk of gastric insufflation.
  • Dual-Stage Pressure Management: The device includes multiple layers of pressure relief to prevent over-pressurization:
    • The primary Pressure Limit is set to 60 ± 5 cm H2O.
    • A Secondary Pressure Relief mechanism provides maximum safety, activating between 65 and 80 cm H2O.
